Open RégionAnnéeModèleCode modèle Détails
General 2012 TFR/TFS LHD 50964~2004~2011
Catalog: ISUZU201809 Vehicle Class: PICKUP Model Qualifier: TF Source Catalog Name: TFR/TFS-LHD 04 - 11 Source Production Code: 20120404 Production Date: 20120404 N30: DELUXE STEERING WHEEL URETHANE Gw1: FINAL GEAR RATIO 43/11 D34: SUNVISOR PASSENGER SIDE W/VANITY MIRROR Uca: ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER E63: REAR BODY DBL WALL CTR PULL A31: DRIVER POWER WINDOW W/AUTO DOOR DOWN D31: RR VIEW MIRROR TILT DAY & NIGHT 7 Yc: 4X2 HIGH RIDE SUSPENSION C13: FRT WIPER 2 SPEED & INTERMITTENT 8 Cf: ANTI THEFT SYSTEM SPARE TIRE N40: POWER STEERING Nt4: EURO4 SPECIFICATION Vf6: REAR STEP BUMPER C60: AIR CONDITIONER MANUAL CONTROL 8 Kx: ZETAI NOSENAI C74: MAP LAMP K46: HEAVY DUTY AIR CLEANER A50: FRONT SEAT BUCKET STANDARD Vt4: FRT BUMPER UPPER BODY COLOR LOWER GRAY PAINT Au4: AUTO DOOR LOCK 7 We: SKID PLATE B74: OVER FENDER Bzc: FRT&RR 225/75R15C Ul5: RADIO DELETE K20: ELECTRONIC CONTROL U05: DUAL TONE HORN Ak5: AIR BAG DRIVER & PASSENGER 6 Ly: BRIGHT MIRROR A99: LOCK GLOVE BOX U16: TACHOMETER Ke1: CHILE EQUIPMENT B30: VINYL CARPET U27: LAMP GLOVE COMPARTMENT 8 Lh: HEADLAMPS PROJECTOR BEAM Vwx: VEHICLE BASE RAD GRILLE 8 Mb: INTERIOR STEERING CENTER PAD BADGE Tm1: BATTERY 80D26L 7 Xw: SIDE TURN SIGNAL LAMP T96: FRT FOG LAMP C49: REAR DEFOGGER G80: AXLE POSITRACTION LIMITED SLIP T63: HEAD LAMP WARNING ALARM Ts6: HIGH MOUNT STOP LAMP N08: FUEL LID OPENER U95: 2-SPEAKER SYSTEM BASE E28: ASSIST HANDLE Bsy: DISC WHEEL 15X6.5-41 STEEL Ue8: ELECTRIC DIGITAL CLOCK D55: FRONT CONSOLE W/LID Kae: SHIFT KNOB URETHAN N33: TILT STEERING 8 Lm: SEAT TRIM HIGH GRADE CLOTH JACQUARD Rwe: CHEVROLET BRAND U71: ROOF RADIO ANTENNA 8 Cm: POLLEN FILTER FOR AIR CONDITIONER 504: BODY COLOR TORNADE RED MICA Je5: ANTI-LOCK BRAKE-'93'94- 8 Aa: GOOD QUALITY ETHYLENE GLYCOL ANTIFREEZE 50% 101: INTERIOR COLOR BLACK Region: OTHER Native Region: WW

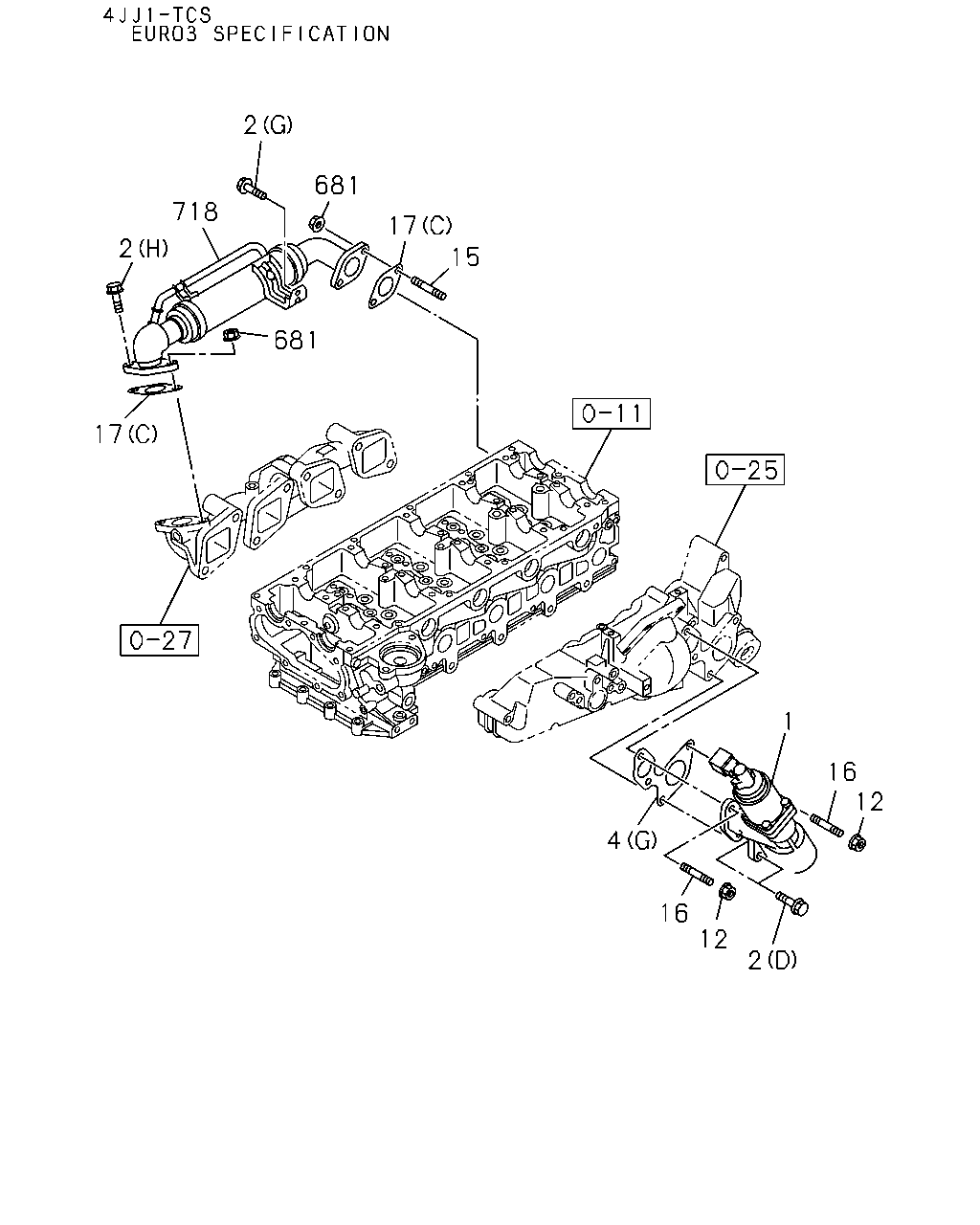

Isuzu TFR/TFS-LHD 2012 — Emission Piping — 4JJ1-TCS(No.2)

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
8980139111 03.670 VALVE; EGR 1
Production:2010-08 – 9999-99 Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:98013911
0286508250 03.670 BOLT; EGR VLV 2
Production:2010-08 – 9999-99 Usage:06.216(D)M8X25 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:DFGH 8 Digit P/n:94012127
8973780770 03.670 BOLT; EGR VLV 3
Production:2010-08 – 9999-99 Usage:EURO4 SPECIFICATION<NT4>03.417(F)M8X23 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:97378077
0281510450 03.670 BOLT; EGR VLV 1
Production:2010-08 – 9999-99 Usage:EURO4 SPECIFICATION<NT4>09.181(E)M10X45 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:94011903
8973567113 03.671 GASKET; EGR VLV 1
Production:2010-08 – 9999-99 Usage:(G) Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:97356711
0911802080 03.671 NUT; EGR VLV 2
Production:2010-08 – 9999-99 Usage:01.540M8 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:CFGH 8 Digit P/n:94012044
8973780620 03.670 STUD; EGR PIPE 2
Production:2010-08 – 9999-99 Usage:EURO4 SPECIFICATION<NT4>03.601M8X25 L=36 Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:97378062
0491408220 03.275 STUD; EGR VLV 2
Production:2010-08 – 9999-99 Usage:01.073M8X22 L=40 Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:94013084
8980175510 03.665 GASKET; EGR PIPE 1
Production:2010-08 – 9999-99 Usage:EURO4 SPECIFICATION<NT4>(D)ALSO INCLUDED IN GASKET SET(ENGINE). Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:98017551
8973576843 03.665 GASKET; EGR PIPE 1
Production:2010-08 – 9999-99 Usage:EURO3 SPECIFICATION<NT3>,EURO4SPECIFICATION<NT4>EXC. EGYPT EQUIPMENT(B09)(C) Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:97357684
0911802080 03.671 NUT; EGR PIPE 2
Production:2010-08 – 9999-99 Usage:EURO4 SPECIFICATION<NT4>01.540M8 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:94012044
8981521221 03.337 COOLER; EGR 1
Production:2010-08 – 9999-99 Usage:EURO4 SPECIFICATION<NT4> Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:98152122

Schéma

12 pièces
Isuzu TFR/TFS-LHD 2012 — Emission Piping — 4JJ1-TCS(No.2)
