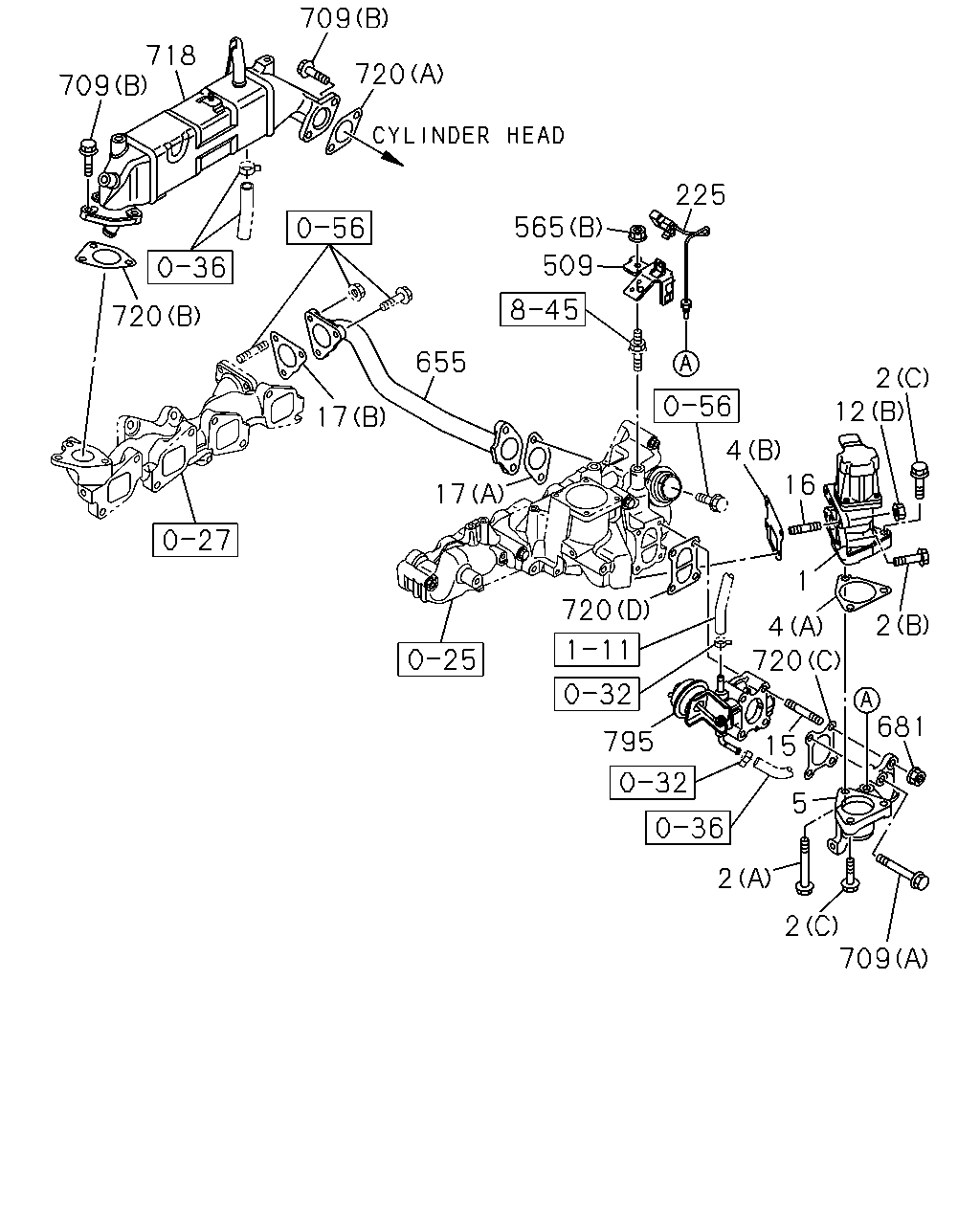

Isuzu TFR/TFS(Europe)-LHD 2014 — Emission Piping — EGR Valve And EGR Cooler

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
8981647861 03.670 VALVE; EGR 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98164786
0280508700 03.670 BOLT; EGR VLV 1
Production:2013-04 – 9999-99 Usage:00.206(A)M8X70 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94011769
0286508250 03.670 BOLT; EGR VLV 2
Production:2013-04 – 9999-99 Usage:06.216(B)M8X25 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012127
0286508400 03.670 BOLT; EGR VLV 2
Production:2013-04 – 9999-99 Usage:00.685(C)M8X40 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012135
8981673470 03.671 GASKET; EGR VLV 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98167347
8981673480 03.671 GASKET; EGR VLV 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98167348
8981512100 03.670 ADAPTER ASM 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151210
0911801080 03.671 NUT; EGR VLV 1
Production:2013-04 – 9999-99 Usage:01.062(A)M8 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012039
0911802080 03.671 NUT; EGR VLV 2
Production:2013-04 – 9999-99 Usage:01.540(B)M8 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012044
8941569400 03.670 STUD; EGR PIPE 2
Production:2013-04 – 9999-99 Usage:03.275M8X60 L=72 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94156940
0410108250 03.275 STUD; EGR VLV 2
Production:2013-04 – 9999-99 Usage:M8X25 L=37 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94013043
8981507450 03.665 GASKET; EGR PIPE 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).03.670(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98150745
8981919430 03.665 GASKET; EGR PIPE 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98191943
8982382410 03.670 SENSOR; THERMO,EGR 1
Production:2013-07 – 9999-99 Usage:EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> Manufacturer:ISUZU Applied Model:A Applied Date:1307- 8 Digit P/n:98238241
8980283980 03.670 SENSOR; THERMO,EGR 1
Production:2013-07 – 9999-99 Usage:EXC. EGR SYSTEM W/WIDE RANGE TEMP SENSOR FOR IUPR<8PW> Manufacturer:ISUZU Applied Model:A 8 Digit P/n:98028398 Applied Date:1307-
8981663782 03.671 BRACKET; HARNESS 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98166378
0911801080 03.417 NUT; BRKT 1
Production:2013-04 – 9999-99 Usage:01.062(A)M8 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012039
0911802080 03.417 NUT; BRKT 2
Production:2013-04 – 9999-99 Usage:01.540(B)M8 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012044
8981512110 03.675 PIPE; EGR VLV 1
Production:2013-04 – 9999-99 Usage:01.540 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151211
0911802080 03.671 NUT; EGR PIPE 2
Production:2013-04 – 9999-99 Usage:01.540M8 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012044
0280508800 03.670 BOLT; EGR COOLER 2
Production:2013-04 – 9999-99 Usage:01.252(A)M8X80 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94011770
8973780770 03.670 BOLT; EGR COOLER 5
Production:2013-04 – 9999-99 Usage:03.417(B)M8X23 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:97378077
8981512061 03.337 COOLER; EGR 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151206
8973576843 03.680 GASKET; COOLER 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).03.665(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:97357684
8980632841 03.680 GASKET; COOLER 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).03.665(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98063284
8981650720 03.680 GASKET; COOLER 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).(C) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98165072
8981650730 03.680 GASKET; COOLER 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).(D) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98165073
8981512070 03.670 VALVE; EGR COOLER BYPASS 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151207

Schéma

28 pièces
