Isuzu TFR/TFS(Europe)-LHD 2014 — Turbocharger System — No.1

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
8981506872 03.342 TURBOCHARGER ASM 1
Production:2013-04 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98150687
8981506883 03.342 TURBOCHARGER ASM 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98150688
8981512150 03.342 GASKET; TURBOCHARGER TO EXH MANI 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151215
8973099420 03.342 NUT; TURBOCHARGER 6
Production:2013-04 – 9999-99 Usage:M10 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:97309942
8973780630 03.342 STUD; TURBOCHARGER 6
Production:2013-04 – 9999-99 Usage:M10X28.5 L=41.5 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:97378063
0280506400 03.358 BOLT; PIPE 2
Production:2013-04 – 9999-99 Usage:04.866(A)M6X40 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012247
0280508160 03.358 BOLT; PIPE 2
Production:2013-04 – 9999-99 Usage:02.343(B)M8X16 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94011765
0583306160 03.358 BOLT; PIPE 2
Production:2013-04 – 9999-99 Usage:00.724(C)M6X16 HEX SOCKET Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94013319
8981595631 03.342 PROTECTOR; HEAT,TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98159563
8981595642 03.342 PROTECTOR; HEAT,TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98159564
8981842860 03.342 STUD; EXH PIPE 3
Production:2013-04 – 9999-99 Usage:M10X25 L=40 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98184286
8981790131 03.342 HOSE; INL PIPE,TURBOCHARGER 1
Production:2013-04 – 2016-10 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:98179013 Applied Date:1304-1610
0280508250 03.417 BOLT; INL PIPE 2
Production:2013-04 – 9999-99 Usage:03.275(A)M8X25 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012249
0280508600 03.417 BOLT; INL PIPE 1
Production:2013-04 – 9999-99 Usage:04.686(B)M8X60 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94011768
1096235410 01.531 GASKET; INL PIPE 94 1
Production:2013-04 – 9999-99 Usage:03.162ID=49.7 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:97730791
0280508120 03.602 BOLT; HEAT PROTECTOR 5
Production:2013-04 – 9999-99 Usage:02.343M8X12 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94011764
0280506160 03.342 BOLT; WATER PIPE 1
Production:2013-04 – 9999-99 Usage:09.242M6X16 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012242
1096234650 03.342 GASKET; WATER PIPE 1
Production:2013-04 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).01.724ID=47.7 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94055825
8979441250 03.342 CLIP; WATER HOSE 2
Production:2013-04 – 9999-99 Usage:(A)ID=12.8 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:97944125
8979441270 03.342 CLIP; WATER HOSE 4
Production:2013-04 – 9999-99 Usage:08.846(B)ID=20.8 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:97944127
8981795810 03.342 CLIP; WATER HOSE 6
Production:2013-04 – 9999-99 Usage:(C)ID=15.1 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98179581
8982025400 03.342 CLIP; WATER HOSE 2
Production:2013-04 – 9999-99 Usage:(D)ID=26.2 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98202540
8981595601 03.342 HOSE; WATER,TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98159560
8981795100 03.342 HOSE; WATER,TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98179510
8981512830 03.417 PIPE; AIR PIPE 1
Production:2013-04 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151283
8981623520 03.417 PIPE; AIR PIPE 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98162352
0286612300 03.417 BOLT; BRKT 3
Production:2013-04 – 9999-99 Usage:06.509(A)M12X30 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012194
0286612350 03.417 BOLT; BRKT 2
Production:2013-04 – 9999-99 Usage:00.004(B)M12X35 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012195
8981899230 03.417 BOLT; BRKT 3
Production:2013-04 – 9999-99 Usage:(C)M10X25 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98189923
8980964180 03.616 CLIP; CONN HOSE 2
Production:2013-04 – 9999-99 Usage:03.407ID=60-65 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98096418
8981646511 03.342 HOSE; RUBBER,TURBOCHARGER OUT 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98164651
8981734430 03.342 BOLT; TURBOCHARGER 2
Production:2013-04 – 9999-99 Usage:M10X30 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98173443
0286508300 03.342 BOLT; BRKT,TURBOCHARGER 2
Production:2013-04 – 9999-99 Usage:03.403(A)M8X30 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012129
0286510350 03.342 BOLT; BRKT,TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:02.277(B)M10X35 FLANGE Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012144
8981512160 03.342 GASKET; ADAPTER TO TURBOCHARGER 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151216
0583306250 03.342 BOLT; FLANGE 3
Production:2013-04 – 9999-99 Usage:01.428M6X25 HEX SOCKET Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94012812
8980896610 03.342 GASKET; FLANGE CONNECTOR 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98089661
8981512000 03.373 PIPE; WATER,TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151200
8981512010 03.373 PIPE; WATER,TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151201
0036573000 03.341 HOSE; WATER 1
Production:2013-04 – 9999-99 Replacements:0036571000 (fitment: unknown) Usage:(A)L=100SERVICED BY L=3000 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:94015897
8981595610 03.341 HOSE; WATER 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98159561
8973529850 03.342 GASKET; PLATE 1
Production:2013-04 – 9999-99 Usage:01.519(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:97352985
8981789291 03.342 GASKET; PLATE 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98178929
8981513820 03.373 BRACKET; TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98151382
8981827810 03.373 BRACKET; TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98182781
8981587250 03.616 BRACKET; DUCT 1
Production:2013-04 – 9999-99 Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98158725
8980316051 03.337 SENSOR; TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98031605
8981993530 03.337 SENSOR; TURBOCHARGER 1
Production:2013-04 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A Applied Date:1304- 8 Digit P/n:98199353
— Cette pièce ne correspond pas à la configuration de ce véhicule. 4 —

Schéma

48 pièces

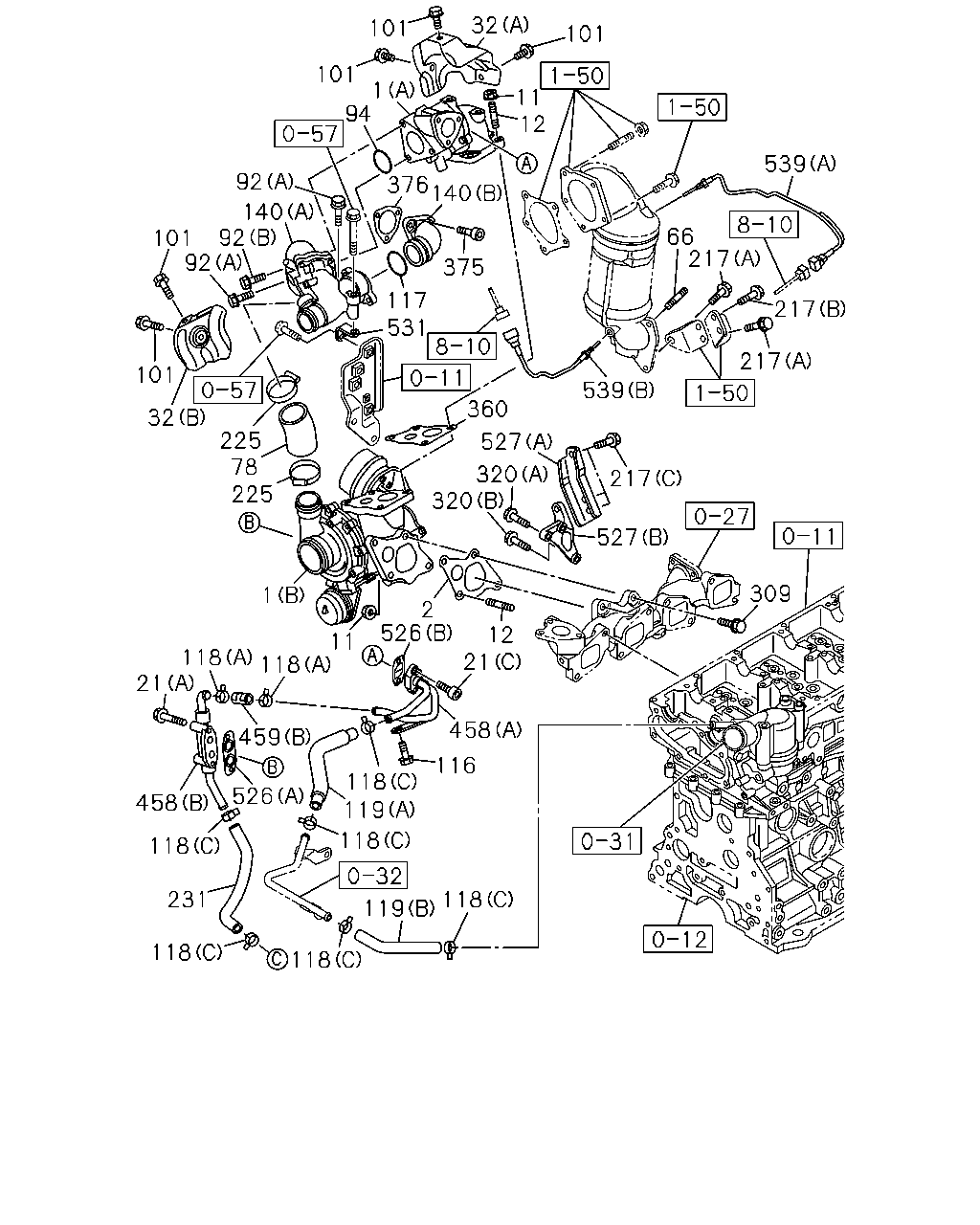

Isuzu TFR/TFS(Europe)-LHD 2014 — Turbocharger System — No.1
