Open RégionAnnéeModèleCode modèle Détails
Europe 2015 Sportage 14 IWW51FC57
Catalog: KIA202602 Model: IWW51FC57 Model Year: 2015 Engine Number: D4FDFZ465151 Transmission Number: WFJ6 K573044 Destination: EUR Nation: C17 Plant: S4 Exterior Color: CASSA WHITE Interior Color: BLACK Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TEMPERATE ZONE Body Type: WAGON - 5DR 5P Engine Capacity: 1700 CC - U2 Engine Type: DOHC - TCI Fuel Type: DIESEL - DIESEL Transaxle: MANUAL T/M - 6 SPEED 2WD Build Date: 2015-11-27 Nation Code: C17 Area: S4 Drive Type: L Weather Type: 3 Order Number: E1508T074C17A Vehicle Factory: 149 Full Specification Code: C17AIWW51FC57 GVGW02 Exterior Color Code: WD Interior Color Code: WK Engine Mip Code: R46B Transmission Mip Code: ZD76 Vin Tag: 1 Model Year Code: 14 Catalog Information: (W5) WAGON - 5DR 5P,(1F) 1700 CC - U2,(C) DOHC - TCI,(5) DIESEL - DIESEL,(7) MANUAL T/M - 6 SPEED 2WD,(L) DRIVE TYPE - LHD,(3) WEATHER - THE TEMPERATE ZONE Region: EU Native Region: SEURPSLZ14

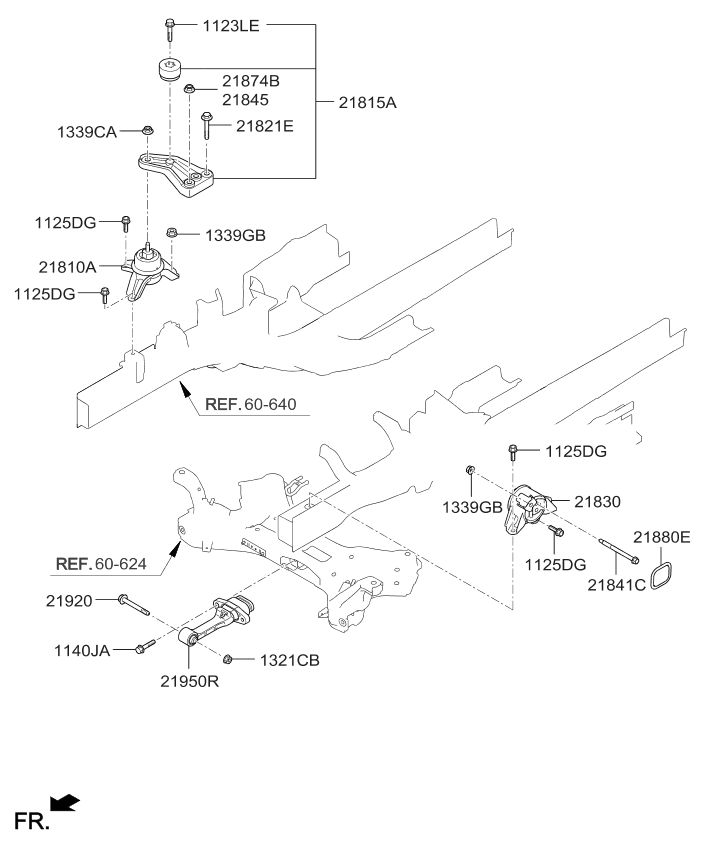

Kia Sportage 14 2015 — Engine & Transaxle Mounting [1700 CC - U2]

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
1123410256K BOLT - WASHER ASSY 1
Production:2013-06-10 – …
21821A6000 BOLT 2
Production:2015-10-05 – …
21821A6000 BOLT 3
Production:2015-10-05 – …
1140610406K BOLT - FLANGE 2
Production:2013-06-10 – …
1339712007K NUT 1
Production:2013-06-10 – …
1338712007K NUT 1
Production:2013-06-10 – …
218102Y600 BRACKET ASSY - ENGINE MOUNTING 1
Production:2013-06-10 – …
218202Y600 BRACKET - ENGINE MOUNTING SUPPORT 1
Production:2013-06-10 – …
218213K503 BOLT 1
Production:2013-06-10 – …
218302S101 BRACKET ASSY - TRANSMISSION MOUNTING 1
Production:2013-06-10 – …
218412P000 BOLT - FLANGE 2
Production:2014-01-27 – …
218222G000 NUT ASSY 2
Production:2014-03-03 – …
218911S000 NUT 1
Production:2015-10-05 – 2016-01-01
218911S000 NUT 2
Production:2015-10-05 – 2016-01-01
218802S000 PACKING - TRANSMISSION MOUNTING SIDE PANEL 1
Production:2013-06-10 – …
219911J100 BOLT 1
Production:2013-06-10 – …
219502Y700 BRACKET ASSY - ROLL ROD 1
Production:2013-06-10 – …

Schéma

17 pièces
Kia Sportage 14 2015 — Engine & Transaxle Mounting [1700 CC - U2]
