Lexus IS250-350 2009 — Systeme D'Injection Carburant
Pièces de rechange
| Numéro de pièce | Description | PNC | Quantité |
|---|---|---|---|
| 20320-31010 | ENSEMBLE CLAPET DECHARGE ESSENCE | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 96137-51501 | BRIDE SER. OU AGRA. FIX. (DE COND. FLEX. ESSENCE) | 2 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23808-31010 | SOUS-ENSEMBLE CONDUIT DE REFOULEMENT COMBUSTIBLE NO. 2 | 1 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 | |||
| 23850-31020 | ENS. TUYAU, ALIMENTATION CARBURANT AVEC CAPTEUR, MD | 1 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 | |||
| 22271-31030 | JOINT DE CORPS D'ETRANGLEUR | 1 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 | |||
| 22030-31020 | ENS. CORPS, PAPILLON AV CAPTEUR POS PAPILLON | 1 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 | |||
| 23841-21050 | COLLIER FIXATION CONDUITE ALIMENTATION ESSENCE NO.1 (EFI) | 1 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 | |||
| 23915-46011 | ELEMENT ISOLANT FILTRE ALIMENTATION | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23273-31060 | COND. FLEX., ESSENCE, NO.3 | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23803-31013 | SOUS-ENS. DE TUYAU DE COMBUSTIBLE NO. 3 | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23256-74010 | ANNEAU RECUL INJECTEUR ESSENCE NO. 1 | 9 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23257-74010 | ANNEAU RECUL INJECTEUR ESSENCE NO. 2 | 9 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23258-28011 | ANNEAU RECUL INJECTEUR ESSENCE NO. 3 | 9 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23271-31060 | COND. FLEX., ESSENCE, NO.1 | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23812-31020 | CANALISATION D'ALIMENTATION ESSENCE NO. 2 | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 Replacements:23812-31050 (fitment: unknown) | |||
| 23273-31050 | FLEXIBLE, ALIMENTATION, NO.2 | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23207-31010 | ENS. D'AMORTISSEUR DE PULSATIONS DE PRESSION COMBUSTIBLE | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 Replacements:23207-31021 (fitment: unknown) | |||
| 23802-31043 | SOUS-ENS DE TUYAU DE COMBUSTIBLE NO. 2 | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23279-74010 | JOINT (P. DURITE D'AMORTISSEUR DE PULSATIONS) | 2 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23901-31040 | SOUS-ENSEMBLE DE TUBE D'ALIMENTATION | 1 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 Replacements:23901-31041 (fitment: unknown) | |||
| 23100-39617 | ENS. POMPE, CARB(COTE COMP MOTEUR) | 1 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2009-09 Replacements:23100-39618 (fitment: unknown) | |||
| 23260-31020 | ENS. D'INJECTEUR DE COMBUSTIBLE DE DEMARRAGE A FROID | 1 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 | |||
| 23293-31010 | JOINT DE INJECTEUR DE DEMARRAGE A FROID | 1 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 | |||
| 90301-06018 | JOINT TORIQUE (P. INJECTEUR DE COMBUSTIBLE) | 6 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 | |||
| 23695-31010 | ATTACHE PORTE-INJECTEUR | 6 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23291-31011 | PROTECTEUR ANTI-VIBRATOIRE D'INJECTEUR | 6 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23255-31010 | JOINT D'ETANCHEITE INJECTEUR ALIMENTATION | 12 | |
Note:2GRFSE,4GRFSE..GSE2# Production:2008-08 – 2010-08 | |||
| 23209-39057-A0 | ENS. D'INJECTEUR DE COMBUSTIBLE | 6 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 Spec:MARK BLACK | |||
| 23209-39057-B0 | ENS. D'INJECTEUR DE COMBUSTIBLE | 6 | |
Note:4GRFSE..GSE20,25 Production:2008-08 – 2010-08 Spec:MARK BROWN | |||
| 94151-80800 | standard | — | |
| 91551-80845 | standard | — | |
| 90430-12026 | standard | — | |
| 91551-80650 | standard | — | |
| 90179-08206 | standard | — | |
| 91671-80612 | standard | — | |
| 96135-51300 | standard | — | |
| 91551-80620 | standard | — | |
| 90301-06016 | standard | — | |
| 90523-05007 | standard | — | |
| 96137-41301 | standard | — | |
| 96132-51300 | standard | — | |
| 91671-80616 | standard | — | |
| 90119-06980 | standard | — | |
| 90126-08048 | standard | — | |
| 90464-00558 | standard | — | |
| 90430-08014 | standard | — | |
| 90401-08017 | standard | — | |

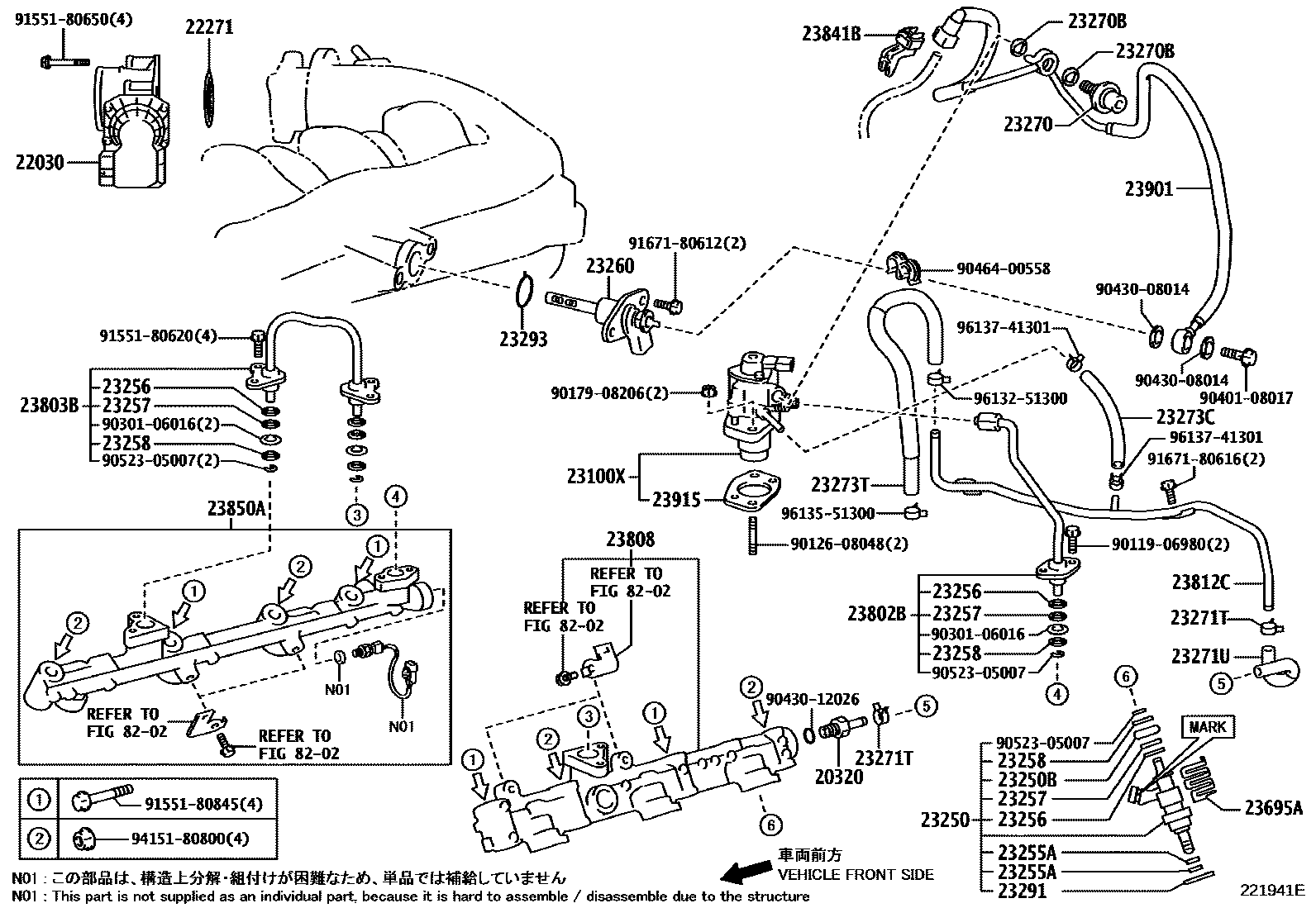

Schéma
47 pièces
