Open RégionAnnéeModèleCode modèle Détails
General 2017 OUTLANDER G EXP GF8W
Catalog: MMC202408 Color Code: U25A Frame Mask: GF0# Model Short: GF8W Modification: 2400 - LS(4WD,7SEATER),CVT Options: N03: SIZE-UP AL/WHL; AUDIO SYSTEM (2); FEATURE OR PREMIUM INTERIOR TRIM; R/CONT MIRROR (W/DEFOG); R/CONT MIRROR (WITH FOLDING CONTROL); BELT LINE MOULDING (B); DOOR MIRROR CHANGE; REAR WATCH CAMERA SYSTEM; AIR BAG + SUNGLASS POCKET; D/MR CHANGE+R/CONT MIR (W/DEFOG)+R/CONT MIR W/FOLD; SUNGLASS POCKET; AIR BAG (DRIVER,PASSENGER,SIDE,CURTAIN,KNEE); ROOF CARRIER ATTACHMENT(B); NOISE INSULATOR (D); DVD VIDEO REGION (4); DON'T INSTALL SPL MAKE TIRE Production: 201211-202212 Production Date: 201707 Trim Code: 50X Year: 2017 Region: OTHER Native Region: M80

Mitsubishi OUTLANDER-G-EXP 2017 — Engine Mounting & Support / All

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
MF912748 BOLT,ENG SUPPORT ROD 2
Note:ALL Production:2012-11 – 2017-08 Spec:FLANGE,14X65 Size:14X65 Shape:FLANGE
MF911965 BOLT,ENG SUPPORT ROD 2
Note:ALL Production:2012-11 – 2022-12 Spec:FLANGE,12X35 Size:12X35 Shape:FLANGE
1092A229 ROD ASSY,ENG ROLL STOPPER 1
Note:ALL Production:2015-03 – 2022-12
1092A143 STAY,ENG MOUNTING 1
Note:ALL Production:2012-11 – 2022-12
MF911641 BOLT,T/M MOUNTING 2
Note:ALL Production:2012-11 – 2022-12 Spec:FLANGE,10X25 Size:10X25 Shape:FLANGE
MF911665 BOLT,T/M MOUNTING 2
Note:ALL Production:2012-11 – 2022-12 Spec:FLANGE,10X45 Size:10X45 Shape:FLANGE
MF434106 NUT,T/M MOUNTING 3
Note:ALL Production:2012-11 – 2022-12 Spec:FLANGE,12 Size:12 Shape:FLANGE
2910A323 BRACKET,T/M MOUNTING BODY SIDE 1
Note:ALL Production:2015-03 – 2018-03 Replacements:2910A345 (fitment: unknown)
1091A211 BRACKET,ENG FR MOUNTING 1
Note:ALL Production:2012-11 – 2018-03 Replacements:1091A353 (fitment: unknown)
MF911641 BOLT,ENG MOUNTING 1
Note:ALL Production:2012-11 – 2022-12 Spec:FLANGE,10X25 Size:10X25 Shape:FLANGE
MU000641 NUT,ENG MOUNTING 3
Note:ALL Production:2012-11 – 2022-12 Spec:FLANGE,4T,10 Size:10 Shape:FLANGE Standard:4T
MF911833 BOLT,ENG MOUNTING 2
Note:ALL Production:2012-11 – 2022-12 Spec:FLANGE,10X65 Size:10X65 Shape:FLANGE

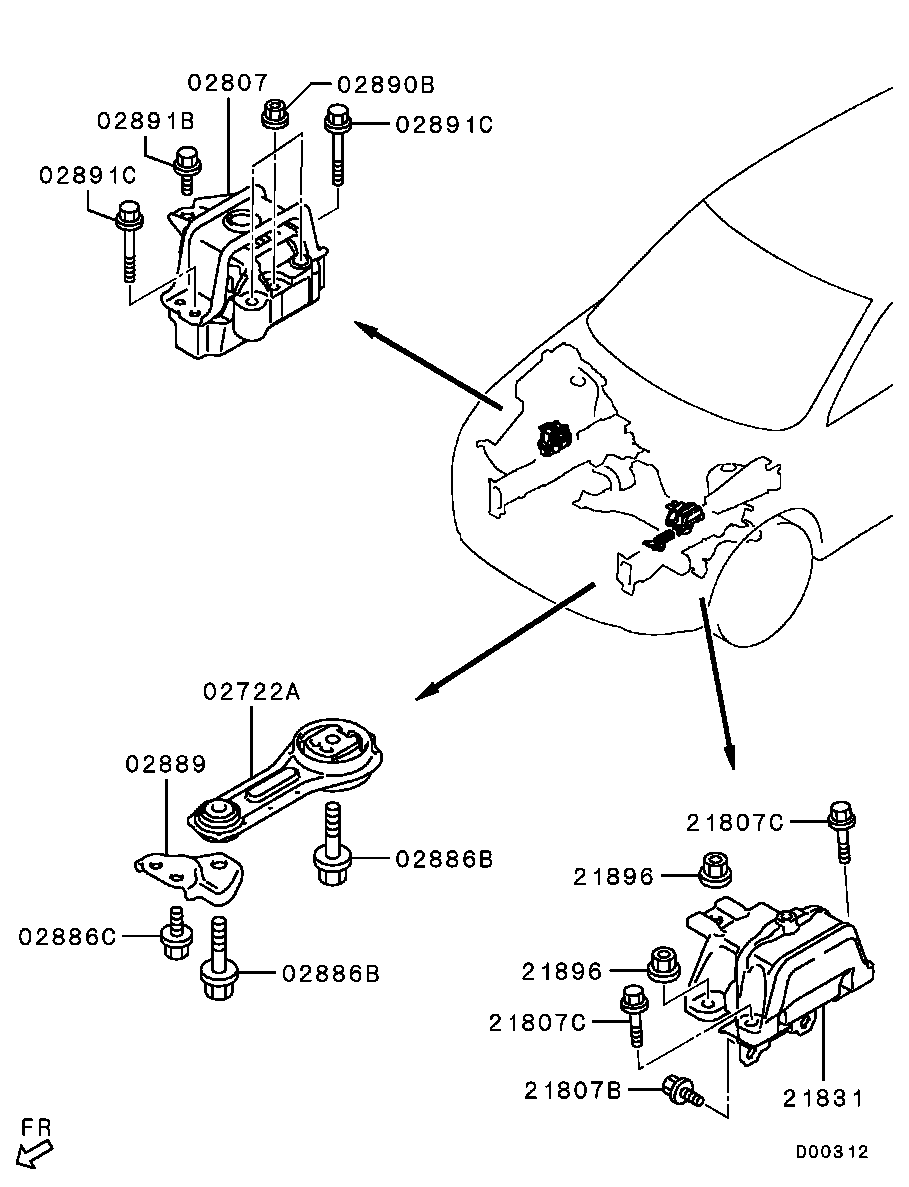

Schéma

12 pièces
Mitsubishi OUTLANDER-G-EXP 2017 — Engine Mounting & Support / All
