Open RégionAnnéeModèleCode modèle Détails
USA / Canada 2014 HILUX KUN26L-HRMSY
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: THAILAND PRODUCED DOUBLE CAB Color Code: 1C0 Trim Code: YA10 Production: 201107-201504 Model Short: KUN26L-HRMSY Region: NA Native Region: US

Toyota Hilux 2014 — Commande Boite De Transfert

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
90341-12014 BOUCHON RESSORT BILLE VERROUILLAGE VITESSE 2
Note:LAN25..LHD;KUN25,TGN26;KUN26..5F,5FC;GGN25..5FC..SR;KUN26..4FC..(GEN,LA,MA,PHL,SA,TH) Production:2011-07 – 2014-10 Spec:TYPE B:REFER 36-08
90341-12014 BOUCHON RESSORT BILLE VERROUILLAGE VITESSE 2
Note:GGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE A:REFER 36-08
90254-05001 GOUPILLE-RESSORT FENDUE (P. FOURCHETTE DE SELECTION) 4
Note:TGN26..4FC;GGN25..5FC..SR;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:L=22,TYPE A:REFER 36-08
90254-T0003 GOUPILLE-RESSORT FENDUE (P. FOURCHETTE DE SELECTION) 4
Note:GGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2013-04 – … Replacements:90254-05001 (fitment: unknown) Spec:L=22,TYPE B:REFER 36-08
36317-35030 BUTEE, NO.2, ARBRE DE SELECTION DE TRANSFERT 1
Note:GGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE A:REFER 36-08
36317-0K010 BUTEE, NO.2, ARBRE DE SELECTION DE TRANSFERT 1
Note:GGN25..5FC;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2013-03 – … Replacements:36317-35030 (fitment: unknown) Spec:TYPE B:REFER 36-08
36311-35030 FOURCHETTE DE SELECTION DE PIGNON DE TRANSFERT NO. 1 1
Note:LAN25..RHD;TGN26..4FC;KUN25..SCB..SA;TGN26..DLX..ANCOM;KUN26..5FC..DLX..ARL;KUN25..(DCB,SMT)..(IDN,MA,SA,TH);GGN25,KUN26,TGN26..SR..(DCR,HTWC,IART);KUN26,LAN25,TGN26..LHD..(DCB,THDCB)..DLX..(DCR,DEFI,HTWCF) Production:2011-07 – … Spec:TYPE B:REFER 36-08,TYPE A:REFER 36-08
90501-20088 RESSORT DE COMPRESSION (P. FOURCHETTE DE SELECTION) 1
Note:GGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE A:REFER 36-08
90501-T0036 RESSORT DE COMPRESSION (P. FOURCHETTE DE SELECTION) 1
Note:GGN25..5FC;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2013-03 – … Replacements:90501-20088 (fitment: unknown) Spec:TYPE B:REFER 36-08
90520-13002 CIRCLIP D'ARBRE (P.FOURCHETTE SELECTION PIGNON TRANSFERT) 1
Note:KUN25;KUN26..5F,5FC;GGN25..5FC..SR;KUN26,TGN26..4FC..(GCC,GEN,LA,MA,PHL,SA,TH) Production:2011-07 – 2014-10 Spec:TYPE B:REFER 36-08
90520-13002 CIRCLIP D'ARBRE (P.FOURCHETTE SELECTION PIGNON TRANSFERT) 1
Note:KUN2#;TGN26..4FC;GGN25..5FC..SR Production:2011-07 – … Spec:TYPE A:REFER 36-08
36312-35040 FOURCHETTE DE SELECTION DE PIGNON DE TRANSFERT NO. 2 1
Note:GGN25,KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE B:REFER 36-08
36312-35040 FOURCHETTE DE SELECTION DE PIGNON DE TRANSFERT NO. 2 1
Note:GGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE A:REFER 36-08
36317-35020 ARRETOIR COULISSEAU TRANSFERT 1
Note:GGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE B:REFER 36-08
36317-35020 ARRETOIR COULISSEAU TRANSFERT 1
Note:TGN26..4FC;GGN25..5FC..SR;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE A:REFER 36-08
90250-10020 GOUPILLE OU GALET DE VERROUILLAGE DE CHANGEMENT 1
Note:GGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:L=25.7,OD=9.53,TYPE A:REFER 36-08
90250-T0025 GOUPILLE OU GALET DE VERROUILLAGE DE CHANGEMENT 1
Note:GGN25..5FC;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2013-03 – … Replacements:90250-10020 (fitment: unknown) Spec:L=25.7,OD=9.53,TYPE B:REFER 36-08
90521-49003 CIRCLIP DE TROU (P. LEVIER CHANGE. TRACT. AV TRANSFERT) 1
Note:GGN25,KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – …
90501-16116 RESSORT DE COMPRESSION (P. BILLE D'ARRET D'ARBRE) 2
Note:GGN25..SR;GGN25..5F..DLX;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:L=23,TYPE A:REFER 36-08
90501-T0035 RESSORT DE COMPRESSION (P. BILLE D'ARRET D'ARBRE) 2
Note:GGN25..5FC;KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2013-03 – … Replacements:90501-16116 (fitment: unknown) Spec:L=23,TYPE B:REFER 36-08
90360-10003 BILLE D'ARRET D'ARBRE 2
Note:TGN26..5F;GGN25..SR;GGN25..5F..DLX;KUN2#,LAN25..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:OD=9.52,STEEL,TYPE A:REFER 36-08
90360-T0008 BILLE D'ARRET D'ARBRE 2
Note:GGN25,KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2014-03 – … Replacements:90360-10003 (fitment: unknown) Spec:OD=9.53,STEEL,TYPE B:REFER 36-08
36313-35080 ARBRE FOURCHETTE SELECTION COMMANDE AV TRANSFERT 1
Note:TGN26..4FC;KUN2#..4FC,5F Production:2011-07 – 2016-09 Spec:TYPE A:REFER 36-08
36313-0K010 ARBRE FOURCHETTE SELECTION COMMANDE AV TRANSFERT 1
Note:TGN26..4FC;KUN2#..4FC,5F Production:2013-03 – 2016-09 Replacements:36313-35080 (fitment: unknown) Spec:TYPE B:REFER 36-08
36315-35010 TETE, SELECTION DE PIGNON DE TRANSFERT, NO.1 1
Note:TGN26..4FC;GGN25..5FC..SR;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE A:REFER 36-08
36315-0K010 TETE, SELECTION DE PIGNON DE TRANSFERT, NO.1 1
Note:GGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2013-03 – … Replacements:36315-35010 (fitment: unknown) Spec:TYPE B:REFER 36-08
36316-35020 TETE, SELECTION DE PIGNON DE TRANSFERT, NO.2 1
Note:TGN26..4FC;GGN25..5FC..SR;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:TYPE A:REFER 36-08
36316-0K010 TETE, SELECTION DE PIGNON DE TRANSFERT, NO.2 1
Note:GGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2013-03 – … Replacements:36316-35020 (fitment: unknown) Spec:TYPE B:REFER 36-08
36314-35110 AXE DE FOURCHETTE SELECTION HAUTE ET BASSE TRANSFERT 1
Note:TGN26..4FC;KUN2#..4FC,5F Production:2011-07 – 2016-09 Spec:TYPE A:REFER 36-08
36314-0K010 AXE DE FOURCHETTE SELECTION HAUTE ET BASSE TRANSFERT 1
Note:TGN26..4FC;KUN2#..4FC,5F Production:2013-03 – 2016-09 Replacements:36314-35110 (fitment: unknown) Spec:TYPE B:REFER 36-08
36303-0K020-C0 SOUS-ENS. DE POMMEAU DE LEVIER DE CHANGEMENT DE VITESSE 1
Note:KUN25..5F..GEN;KUN25..SCB..LA;GGN25..5FC..SR..ARL;KUN25..DCB..(CO,LA,MA);KUN26..4FC..(CO,LA,MA);TGN26..LHD..(CO,GEN,LA);KUN26..(SADCB,SCB,THDCB)..(GEN,LA);KUN26..(DCB,XTR)..(5F,5FC)..(ARL,CO,LA) Production:2013-08 – 2016-01 Replacements:36303-60280-C0 (fitment: unknown) Spec:BLACK,TRIM1#,2#
36360-71140 ENS. LEVIER COM. GAM. HAUTE-BASSE BOITE TRANSFERT 1
Note:KUN2#..LHD..5F Production:2011-07 – 2015-12
33555-35190 SOUFFLET DE CHANGEMENT DE TRACTION AV 1
Note:GGN25,KUN2#,LAN25,TGN26..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – …
36345-35040 JOINT ARRETOIR LEVIER CHANGEMENT COMMANDE TRANSFERT 1
Note:GGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – …
36349-35020 RESSORT RAPPEL SELECTEUR TRANSFERT 1
Note:KUN2#;GGN25,TGN26..4FC,5FC Production:2011-07 – …
36304-0K030 SOUS-ENS. ARRETOIR LEVIER CHANG. VITESSE COMMANDE TRANSF. 1
Note:KUN2#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) Production:2011-07 – 2015-04 Replacements:36304-35051 (fitment: unknown) Spec:TYPE B:REFER 33-01
36304-35051 SOUS-ENS. ARRETOIR LEVIER CHANG. VITESSE COMMANDE TRANSF. 1
Note:KUN2#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH) Production:2011-07 – 2015-04 Spec:TYPE A,D:SEE 33-01
36304-0K020 SOUS-ENS. ARRETOIR LEVIER CHANG. VITESSE COMMANDE TRANSF. 1
Note:KUN2#..5F..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – 2016-01 Replacements:36304-35051 (fitment: unknown) Spec:TYPE C:REFER 33-01
33556-14010 CUVETTE BILLE LEVIER CHANGEMENT VITESSES BOITE TRANSFERT 1
Note:GGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:NO.1
33556-14020 CUVETTE BILLE LEVIER CHANGEMENT VITESSES BOITE TRANSFERT 1
Note:GGN25,TGN26..4FC,5FC;KUN2#..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Spec:NO.2
90119-08336 standard —
90119-T0412 standard —

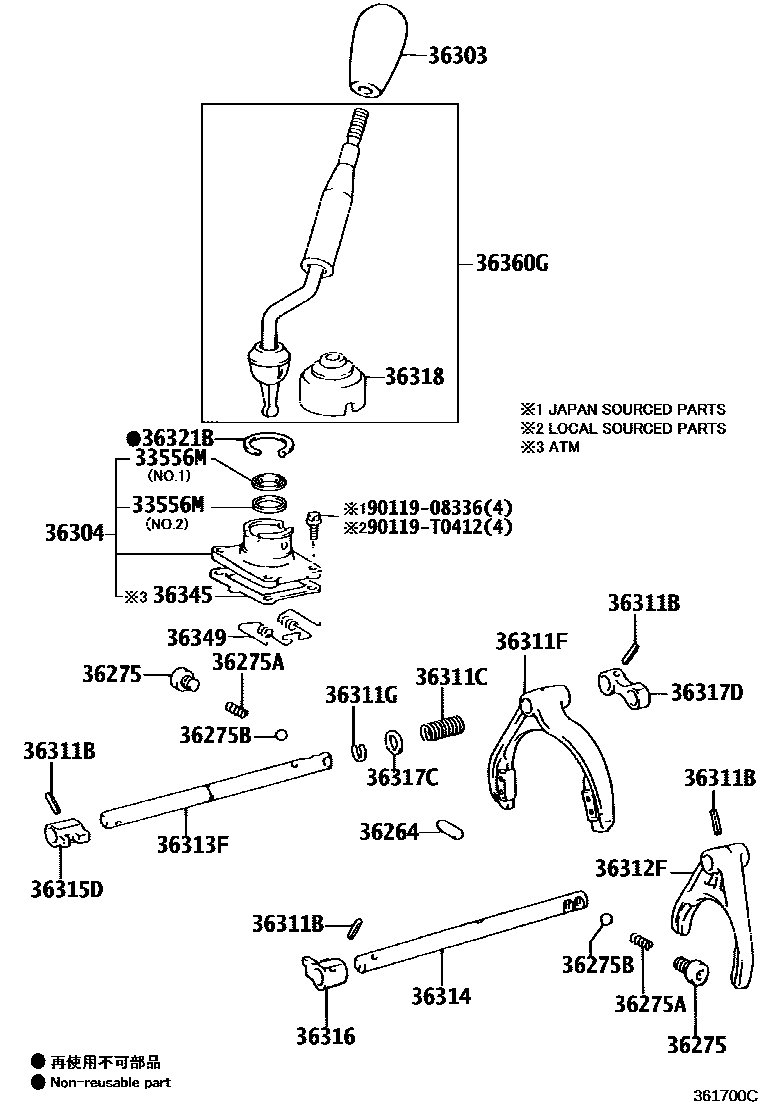

Schéma

42 pièces
Toyota Hilux 2014 — Commande Boite De Transfert
