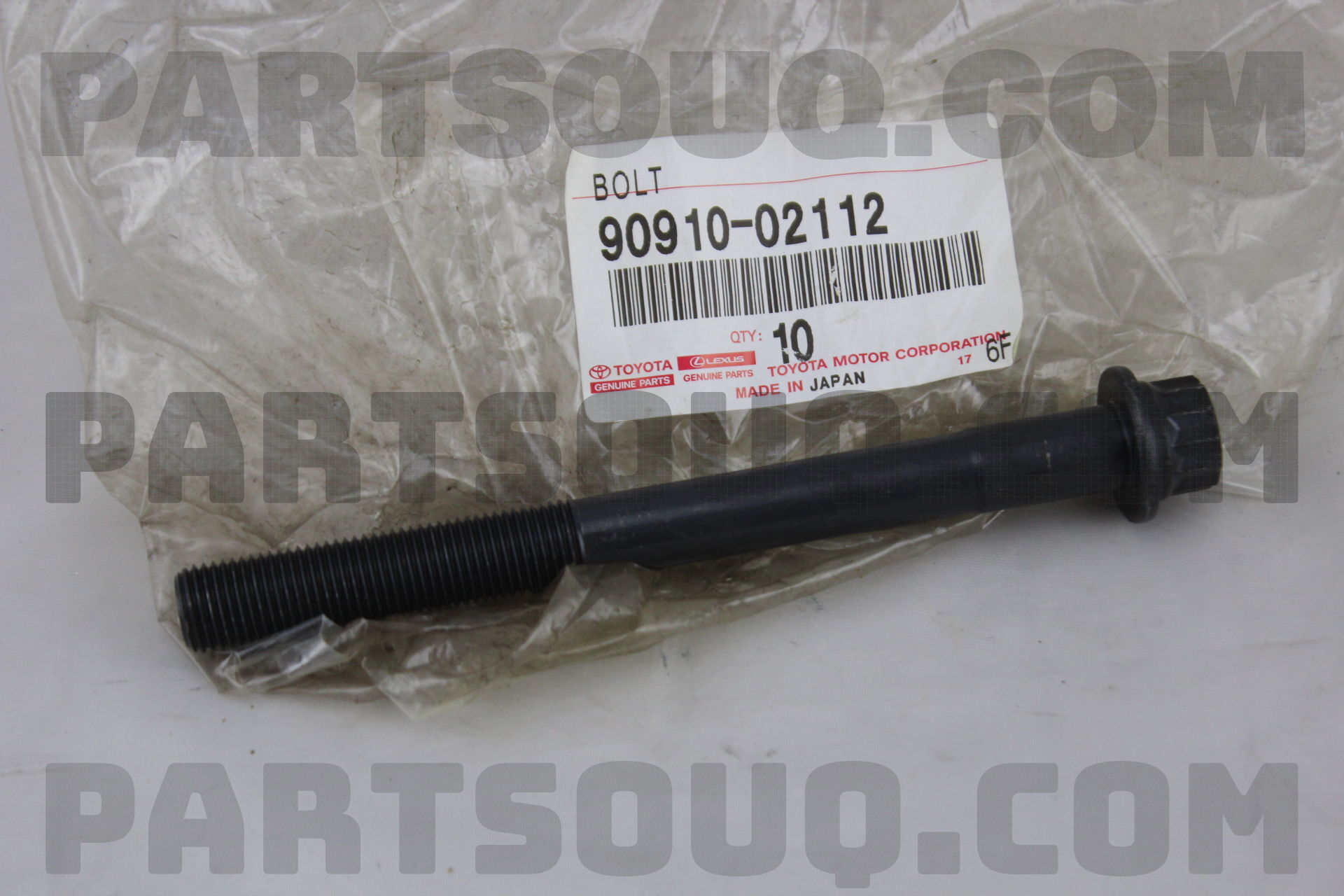

9091002112 BOLT(FOR CYLINDER HEAD SET)
Images
2 Images
Compatibility
Toyota 9091002112
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KZN185,RZN18#,VZN18# | KZN185L-GKMST | ATM,MTM: MANUAL TRANSMISSION; Driver's Position: LEFT-HAND DRIVE VEHICLES; Fuel Induction: TURBO DIESEL WITH ECD; Engine: (1KZTE) 3000CC DIESEL TURBO | 08.2000 - 11.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KCH1#,RCH11,VCH1#,2# | KCH16W-GFSQT | ATM,MTM: AUTOMATIC TRANSMISSION; Seating Capacity: 7-SEATER; NO. Of Doors: 4-DOOR; Body: WAGON; Grade: Q TYPE(- '99.7); Fuel Induction: TURBO DIESEL WITH EFI; Engine: (1KZTE) 3000CC DIESEL TURBO | 10.1995 - 07.1999 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KZH1##,LH1##,RZH1##,TRH1## | KZH126G-HHMNT | Drive Train: 4 WHEEL DRIVE; Seating Capacity: 10-SEATER; NO. Of Doors: 4-DOOR; Roof: HIGH-ROOF; Body: WAGON; Grade: GRAND CABIN G-E TYPE; Fuel Induction: TURBO DIESEL WITH EFI; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1KZTE) 3000CC DIESEL TURBO | 08.1993 - 07.1999 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# | KZN190R-PRMSTN | ATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Cab: DOUBLE CAB; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: SR TYPE; Fuel Induction: TURBO DIESEL WITH EFI; Engine: (1KZTE) 3000CC DIESEL TURBO; Destination: SOUTH AFRICA | 03.2002 - 04.2005 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KDN185,KZN185,RZN18#,VZN18# | KZN185W-GAPXT | ATM,MTM: AUTOMATIC TRANSMISSION; Body: WIDE BODY; Grade: SSR-X TYPE; Fuel Induction: TURBO DIESEL WITH EFI; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1KZTE) 3000CC DIESEL TURBO | 11.1995 - 07.1998 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| LN,RN,YN,VZN10#,11#,13#,KZN,LN205 | KZN205L-PRMVT | ATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Deck,cab: DOUBLE CAB; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: SR-V TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1KZTE) 3000CC DIESEL TURBO; Destination: GENERAL COUNTRIES | 08.2001 - 12.2004 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# | KZJ77LV-MNX | ATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: HARDTOP(HARDTOP OR FRP TOP); Grade: LX TYPE; Fuel Induction: TURBO DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1KZT) 3000CC DIESEL; Destination: FOR GENERAL COUNTRIES(EXCEPT FOR GCC,ARL,SA) | 05.1993 - 04.1996 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KZJ9#,LJ9#,RZJ9#,VZJ9# | KZJ95R-GKPETE | ATM,MTM: AUTOMATIC TRANSMISSION; NO. Of Doors: 5-DOOR; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: VX TYPE; Fuel Induction: TURBO DIESEL EFI; Engine: (1KZTE) 3000CC DIESEL TURBO; Destination: FOR MALAYSIA | 10.1999 - 09.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# | KZJ120R-GKMETQ | ATM,MTM: MANUAL TRANSMISSION; NO. Of Doors: 5-DOOR; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1KZTE) 3000CC DIESEL TURBO; Destination: AUSTRALIA | 09.2002 - 08.2009 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# | KZJ78W-MET | ATM,MTM: MANUAL TRANSMISSION,5-SPEED FLOOR SHIFT; Body Shape: VEHICLE WITH A NUMBER STARTING FROM 3(ORDINARY PASSENGER CAR); Body: WAGON; Grade: PRADO SX TYPE,PRADO SX WIDE TYPE; Engine: (1KZTE) 3000CC DIESEL TURBO | 05.1993 - 04.1996 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KCH4#,LXH4#,RCH4# | KCH46W-GRSST | ATM,MTM: AUTOMATIC TRANSMISSION; Seating Capacity: WAGON 8-SEATER; NO. Of Doors: 4-DOOR; Body: WAGON; Grade: REGIUS=WIND TOURER,TOURING HIACE=STANDARD TYPE; Engine: (1KZTE) 3000CC DIESEL TURBO | 07.1999 - 05.2002 | View |
Information
Essential Component: Cylinder Head Bolt
The cylinder head bolt is a critical component within the engine assembly, responsible for securing the cylinder head to the engine block. This fastening is crucial as it ensures a proper seal and alignment, which allows the engine to operate efficiently and safely under high pressures and temperatures.
Functionality of the Cylinder Head Bolt
The primary role of this bolt is to maintain the integrity of the engine's combustion chamber by holding the cylinder head tightly against the engine block. This prevents any leakage of combustion gases, coolant, and oil, which are detrimental to engine performance and longevity. The bolts are designed to withstand substantial forces and thermal expansion, providing the necessary tension to avoid engine failure.
Consequences of a Damaged Cylinder Head Bolt
If a cylinder head bolt fails or becomes loose, it can lead to catastrophic engine problems. Common issues include coolant leaks, oil seepage, decreased compression, and even complete engine breakdown. Such failures can result in costly repairs and significant downtime for vehicle owners.
Compatibility List
- 4Runner
- Granvia/Grand Hiace
- Hiace/Regiusace
- Hilux
- Hilux Surf
- Hilux/4Runner (4Wd)
- Land Cruiser
- Land Cruiser 90
- Land Cruiser Prado
- Land Cruiser S/T,H/T
- Regius/Touring Hiace
Regular inspection and timely replacement of the cylinder head bolt are essential steps in maintaining engine health and vehicle safety. Don't compromise on these vital components to ensure your vehicle runs smoothly and reliably.
