Open RegionYearModelModelCode Details
USA / Canada 2018 ES350 300H AXZH10L-AEXGBA
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Color Code: 4X8 Trim Code: LC11 Production: 201807-999999 Model Short: AXZH10L-AEXGBA Region: NA Native Region: US

Lexus ES350-300H 2018 — Engine Oil Pump

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
13507-25010 CHAIN SUB-ASSY, OIL PUMP DRIVE 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
13549-25020 PLATE, CHAIN TENSIONER 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
13565-25010 SPRING, CHAIN DAMPER 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
15100-25032 PUMP ASSY, OIL 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
15104-25030 STRAINER SUB-ASSY, OIL 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
15147-25010 GASKET, OIL STRAINER 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
15163-25010 SPROCKET, OIL PUMP DRIVE SHAFT 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
15167-25011 BRACKET, OIL PUMP 1
Note:A25AFXS..AXZH1# Production:2018-07 – 2021-10
90119-06A23 standard —
91551-00845 standard —
91551-G0820 standard —
91552-G1025 standard —

Diagram

12 parts

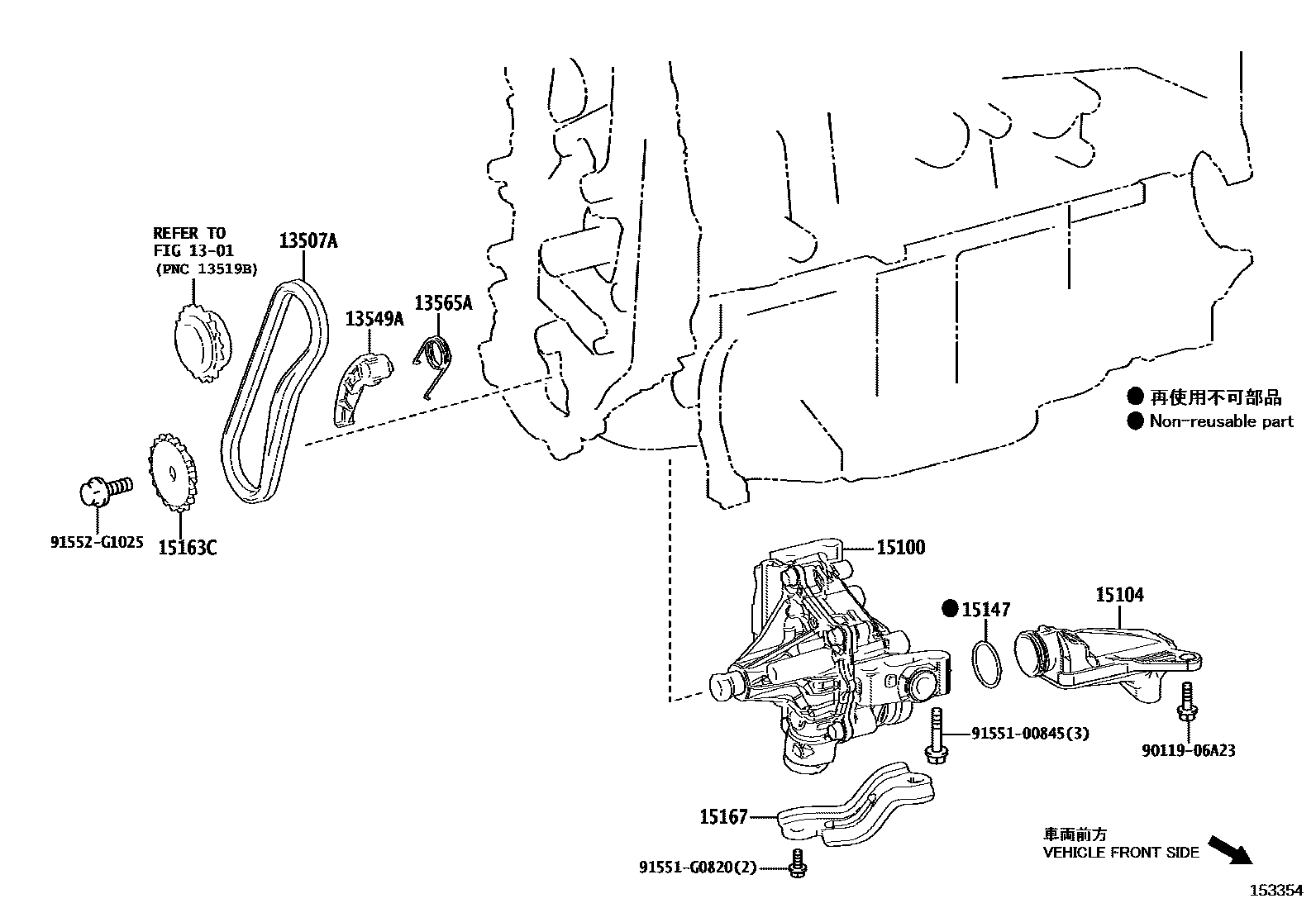

Lexus ES350-300H 2018 — Engine Oil Pump
