Lexus ES350-300H-2 2022 — Floor Pan & Lower Back Panel
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 48691-33050 | DAMPER, SUSPENSION TOWER | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:ULTRA LUXURY PACKAGE | |||
| 55119-33010 | EXTENSION, DASH PANEL, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 | |||
| — | Part does not apply to this vehicle configuration. | 55155A | — |
| 55239-33030 | PLATE, DASH PANEL INSULATOR, NO.3 | 2 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57043-33060 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57044-33050 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57053-33040 | REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57054-33080 | REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57405-33020 | RAIL SUB-ASSY, FLOOR SIDE, CENTER RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57406-33020 | RAIL SUB-ASSY, FLOOR SIDE, CENTER LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57419-33100 | REINFORCEMENT, FRONT FLOOR UNDER, REAR RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57419-33100 | REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57475-33020 | PLATE, FRONT FLOOR CROSSMEMBER, RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57476-33020 | PLATE, FRONT FLOOR CROSSMEMBER, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57523-33010 | BRACE, CENTER FLOOR CROSSMEMBER | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57533-33040 | BRACE, FRONT FLOOR, CENTER | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57805-33030 | REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH | 2 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58088-33011 | BRACKET SUB-ASSY, FLOOR SHIFT LINK | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..LHD..(EUR,GCC) Production:2021-08 – 2025-12 | |||
| 58105-33030 | PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58109-33011 | BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58111-33101 | PAN, FRONT FLOOR, RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58112-33021 | PAN, FRONT FLOOR, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-09 – 2023-03 Replacements:58112-33040 (fitment: unknown) Spec:FRAME NO.=3XXXXXX | |||
| 58112-33040 | PAN, FRONT FLOOR, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10 Production:2021-09 – 2023-03 Spec:FRAME NO.=2XXXXXX | |||
| 58113-33031 | PANEL, FRONT FLOOR, CENTER | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58117-33010 | REINFORCEMENT, FRONT FLOOR SIDE, RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58117-33010 | REINFORCEMENT, FRONT FLOOR SIDE, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58127-33050 | REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58128-33040 | REINFORCEMENT, FRONT CROSS TO FRONT PANEL MEMBER, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58136-33010 | COVER, FRONT FLOOR HOLE | 2 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58136-33020 | COVER, CENTER FLOOR HOLE | 2 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58177-33011 | EXTENSION, FRONT FLOOR PANEL, RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58189-33080 | REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57609-33040 | MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58203-33040 | REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58204-33040 | REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58211-33201 | PAN, CENTER FLOOR | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58202-33030 | PAN SUB-ASSY, CENTER FLOOR, FRONT | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58301-33907 | PANEL SUB-ASSY, REAR FLOOR | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58303-33050 | REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58304-33040 | REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58307-33191 | PANEL SUB-ASSY, BODY LOWER BACK | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58377-33030 | RETAINER, LOWER BACK TRIM | 2 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58316-33030 | EXTENSION, REAR FLOOR SIDE PANEL, LH | 1 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58325-33090 | COVER, REAR FLOOR SERVICE HOLE | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58385-33060 | BRACKET, REAR BUMPER COVER, NO.1 | 2 | |
Note:AXZA10,AXZH10,GSZ10,MXZA10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 57608-33060 | BRACKET SUB-ASSY, FUEL TANK MOUNTING | 2 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58218-33040 | PLATE, SEAT FLOOR PANEL | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58306-33040 | PANEL SUB-ASSY, REAR FLOOR SIDE, RH | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 58335-33030 | PLATE, FLOOR SIDE, FRONT RH | 1 | |
Note:AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 | |||
| 90115-06166 | standard | — | |
| 90119-08D20 | standard | — | |
| 90178-10021 | standard | — | |
| 90179-08261 | standard | — | |
| 91551-80828 | standard | — | |
| 46422-33020 | standard | — | |
| 91673-80616 | standard | — | |

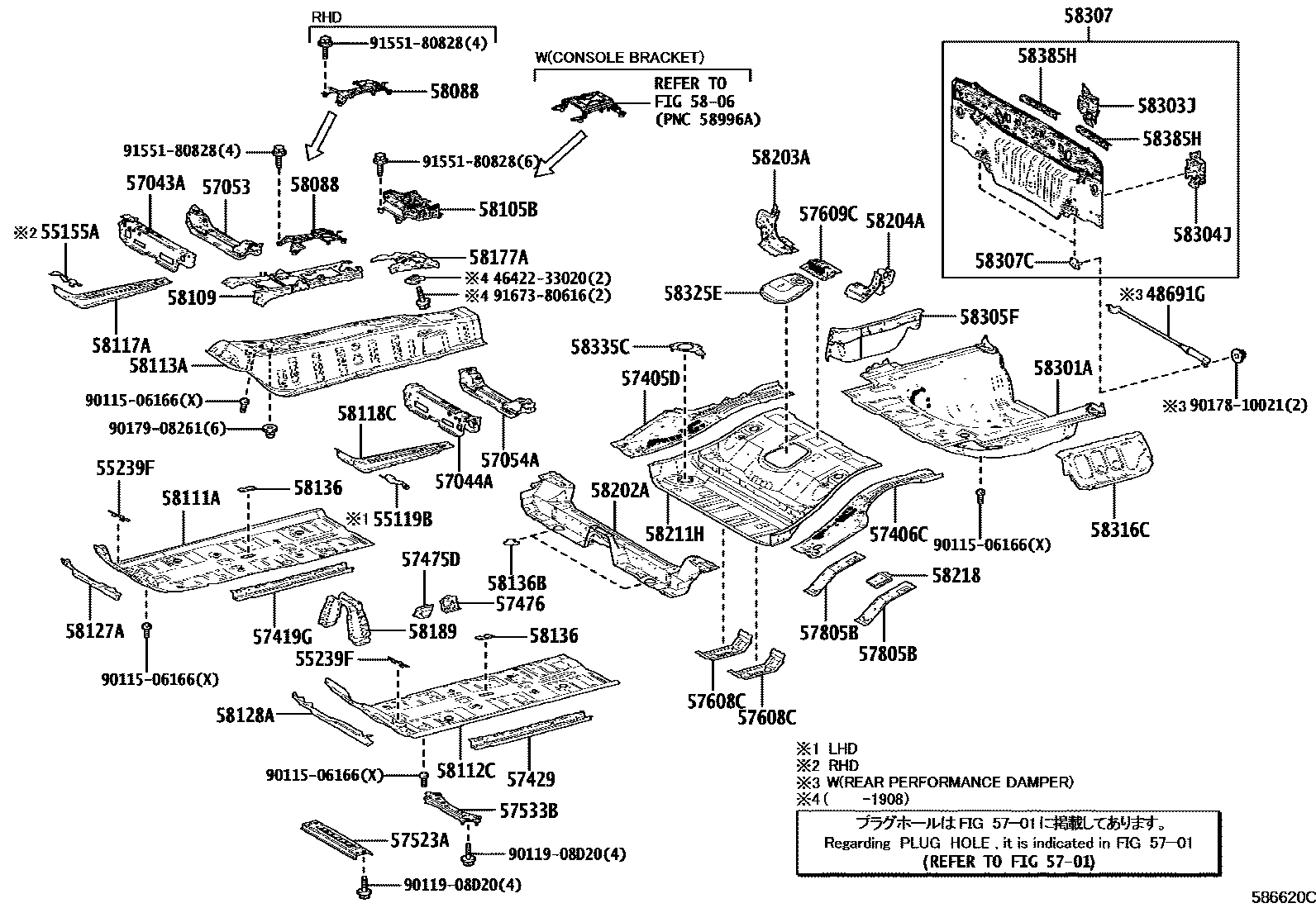

Diagram
55 parts
