Open RegionYearModelModelCode Details
Europe 2022 ES350 300H 2 AXZH10L-AEXGBW
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: EUROPE Doors Description: 4-DOOR Color Code: 1L1 Trim Code: LC01 Production: 201807-202108 Model Short: AXZH10L-AEXGBW Region: EU Native Region: EU

Lexus ES350-300H-2 2022 — Cylinder Block

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90341-12012 PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK) 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90430-12031 GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK) 1
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90250-06003 PIN, STRAIGHT(FOR CRANKCASE) 2
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:L=14,OD=6
90250-10113 PIN, STRAIGHT(FOR CLUTCH HOUSING SET) 2
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12 Spec:L=22,OD=10
— Part does not apply to this vehicle configuration. 11432R —
90250-06003 PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET) 2
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
— Part does not apply to this vehicle configuration. 15471A —
15708-25010 NOZZLE SUB-ASSY, OIL, NO.1 4
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
15709-25010 NOZZLE SUB-ASSY, OIL, NO.2 4
Note:A25AFKS,A25AFXS..AXZA10,AXZH10..ARL,EUR,GCC,GEN Production:2021-08 – 2025-12
90105-10582 standard —
91552-F1040 standard —
91552-F1090 standard —
90110-06040 standard —

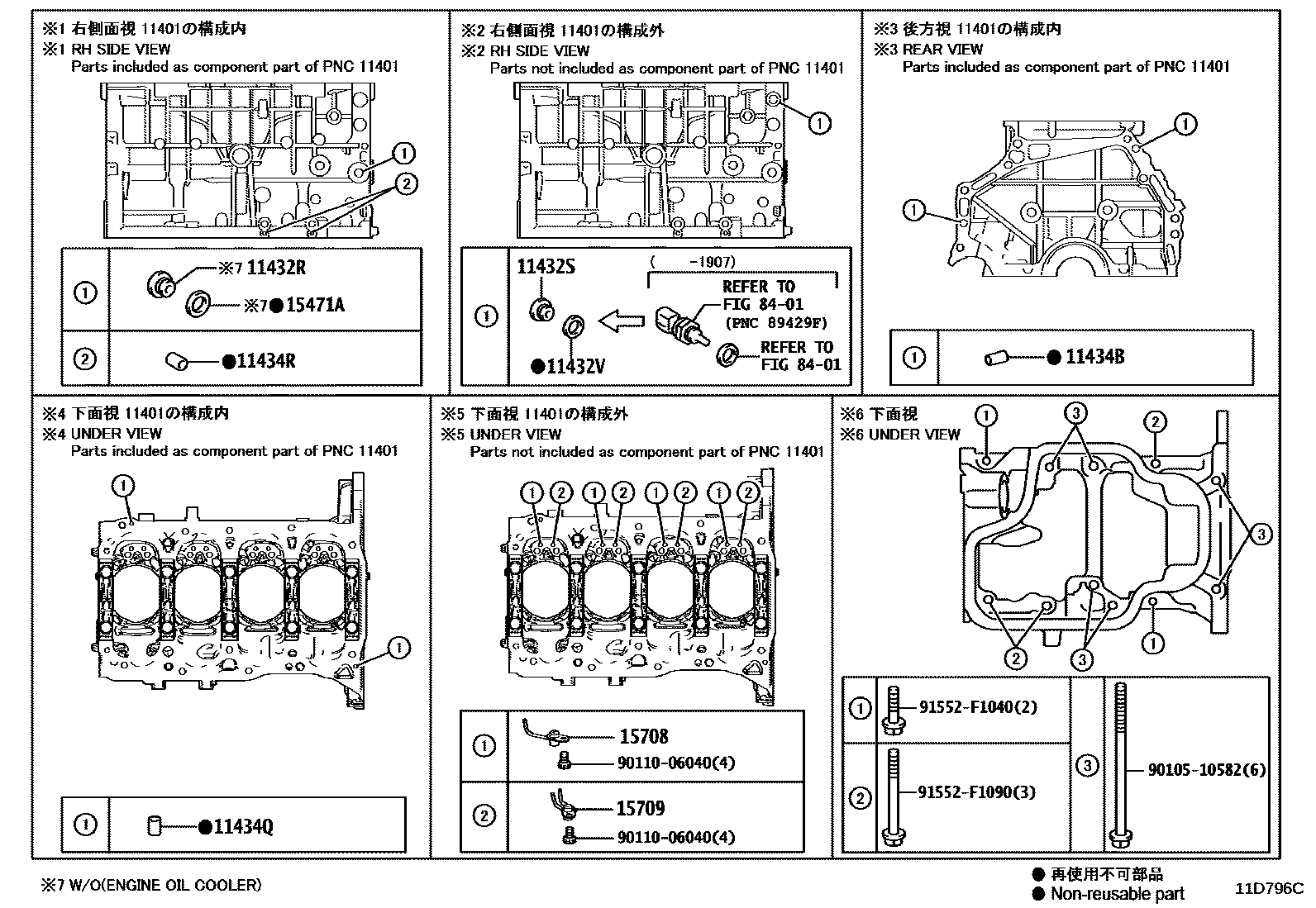

Diagram

11 parts
Lexus ES350-300H-2 2022 — Cylinder Block
