Lexus IS250-300 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90010-01070 | BULB, SEAT HEATER SWITCH | 1 | |
Note:GSE2#..GCC Production:2010-08 – … Spec:14V1.8W,W(GREEN CAP) | |||
| 84751-30180 | SWITCH, SEAT HEATER | 1 | |
Note:GSE2#..GCC Production:2010-08 – … | |||
| 84840-24020 | SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 89611-30022 | SWITCH, PUSH START | 1 | |
Note:GSE2# Production:2010-08 – 2011-04 Replacements:89611-30023 (fitment: unknown) | |||
| 84940-22010 | SWITCH ASSY, CURTAIN | 1 | |
Note:GSE2# Production:2010-08 – … Spec:SUN SHADE-WITH | |||
| 90010-01062 | BULB, CURTAIN SWITCH | 1 | |
Note:GSE2# Production:2010-08 – … Spec:14V0.63W,W/GREEN CAP,SUN SHADE-WITH | |||
| 84150-60030 | SWITCH ASSY, HEADLAMP CLEANER | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 90010-01039 | BULB, HEADLAMP CLEANER SWITCH | 1 | |
Note:GSE2# Production:2010-08 – … Spec:14V0.91W,W(GREEN CAP | |||
| 84119-48010 | RHEOSTAT, LIGHT CONTROL | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 84091-53010 | SWITCH SET, SATELLITE | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 85535-50020 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 85530-53050 | SOCKET ASSY, POWER OUTLET, NO.3 | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 84999-10710 | BULB (FOR PATTERN SELECT SWITCH) | 1 | |
Note:GSE2# Production:2010-08 – 2011-08 Spec:14V 0.56W | |||
| 84998-10670 | CAP, PATTERN SELECT SWITCH | 1 | |
Note:GSE2# Production:2010-08 – 2011-08 | |||
| 84720-30330 | SWITCH ASSY, PATTERN SELECT, NO.1 | 1 | |
Note:GSE2# Production:2010-08 – 2011-08 | |||
| — | Part does not apply to this vehicle configuration. | 84152 | — |
| — | Part does not apply to this vehicle configuration. | 84152B | — |
| 84840-33080 | SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 84988F | — |
| — | Part does not apply to this vehicle configuration. | 84988G | — |
| 90010-01137 | BULB, VSC OFF SWITCH | 1 | |
Note:GSE2# Production:2010-08 – 2011-08 Replacements:90010-01139 (fitment: unknown) Spec:14V 0.63W | |||
| 84988-30140 | SWITCH, VSC OFF | 1 | |
Note:GSE2# Production:2010-08 – 2011-08 | |||
| 84998-10510 | CAP, CIGARETTE LIGHTER BULB | 1 | |
Note:GSE2# Production:2010-08 – … Spec:ASH TRAY-WITH(FRONT & REAR) | |||
| 90010-01111 | BULB, CIGARETTE LIGHTER | 1 | |
Note:GSE2# Production:2010-08 – … Spec:13.5V 2W,ASH TRAY-WITH(FRONT & REAR) | |||
| 85500-30520 | LIGHTER ASSY, CIGARETTE | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 Spec:ASH TRAY-WITH(FRONT & REAR) | |||
| 85520-89101 | KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | 1 | |
Note:GSE2# Production:2010-08 – … Spec:ASH TRAY-WITH(FRONT & REAR) | |||

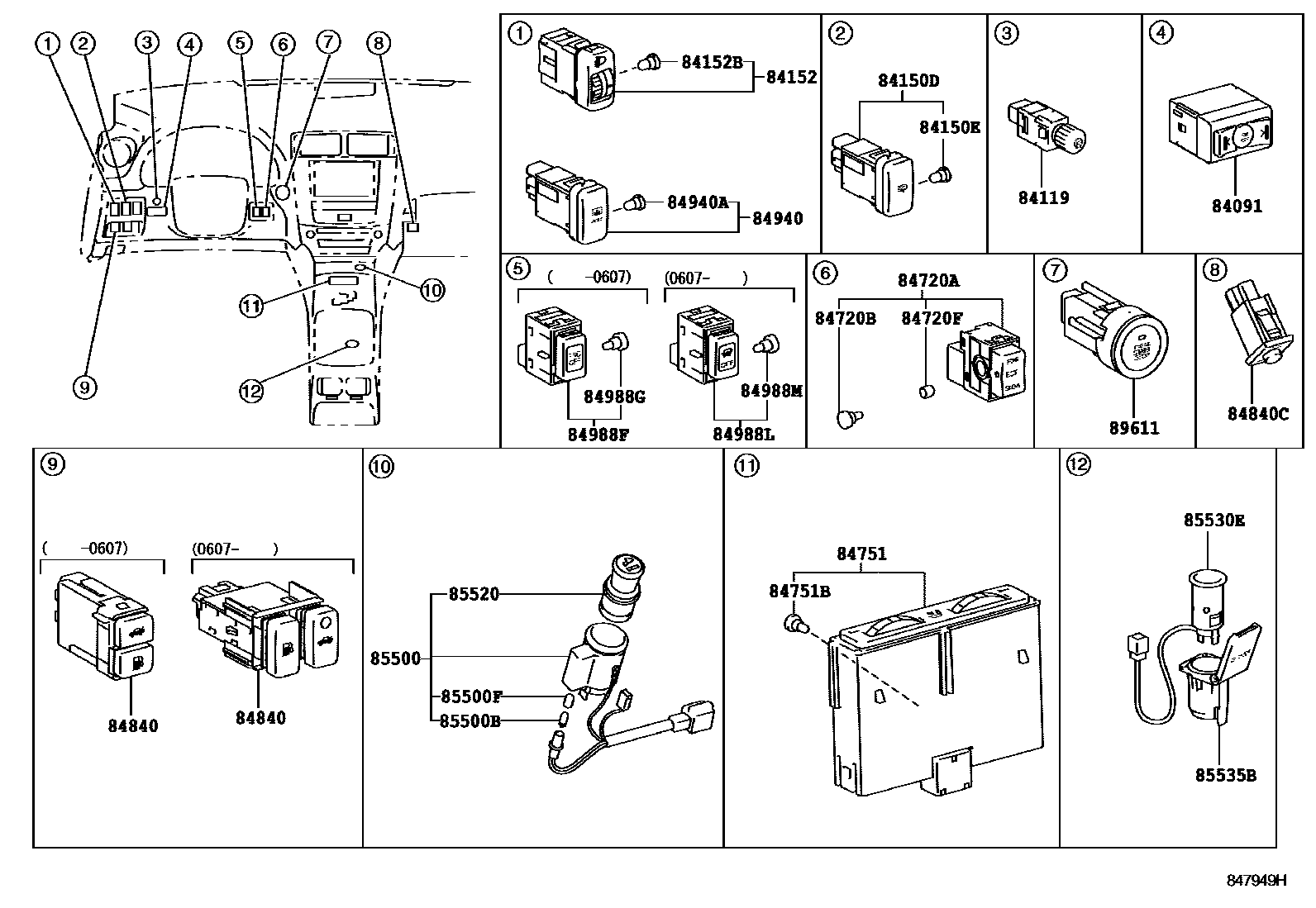

Diagram
22 parts
