Lexus IS250-300 2010 — Wiring & Clamp
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82121-53342 | WIRE, ENGINE | 1 | |
Note:GSE22..GCC Production:2010-08 – … | |||
| 82122-30820 | WIRE, ENGINE, NO.2 | 1 | |
Note:GSE2#..GCC Production:2010-08 – … | |||
| 82123-30490 | WIRE, ENGINE, NO.3 | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 82125-30530 | WIRE, ENGINE, NO.5 | 1 | |
Note:GSE22 Production:2010-08 – … | |||
| 82126-30030 | WIRE, ENGINE | 1 | |
Note:GSE22 Production:2010-08 – … | |||
| 82127-30030 | WIRE, ENGINE, NO.7 | 1 | |
Note:GSE22 Production:2010-08 – … | |||
| 82284-53030 | WIRE, EARTH | 1 | |
Note:GSE2#..GCC Production:2010-08 – 2012-08 | |||
| 82666-30740 | HOLDER, CONNECTOR NO.4 | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 82824-22080 | CONNECTOR, WIRING HARNESS | 1 | |
Note:GSE22 Production:2010-08 – … Spec:NO.2 | |||
| 82824-30180 | CONNECTOR, WIRING HARNESS | 1 | |
Note:GSE2# Production:2010-08 – … Spec:NO.1 | |||
| 82666-30780 | HOLDER, CONNECTOR NO.2 | 1 | |
Note:GSE22 Production:2010-08 – … | |||
| 82817-2A730 | PROTECTOR, WIRING HARNESS, NO.6 | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| 82817-30A80 | PROTECTOR, WIRING HARNESS, NO.9 | 1 | |
Note:GSE2# Production:2010-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 82031 | — |
| — | Part does not apply to this vehicle configuration. | 82219A | — |
| 82823-52010 | CAP, ALTERNATOR TERMINAL | 1 | |
Note:GSE2# Production:2010-08 – 2013-04 | |||
| 90119-06915 | standard | — | |
| 90119-06995 | standard | — | |
| 90126-06028 | standard | — | |
| 94151-80600 | standard | — | |
| 91671-80816 | standard | — | |
| 91673-80610 | standard | — | |
| 91673-80612 | standard | — | |
| 91671-80614 | standard | — | |
| 91671-80612 | standard | — | |

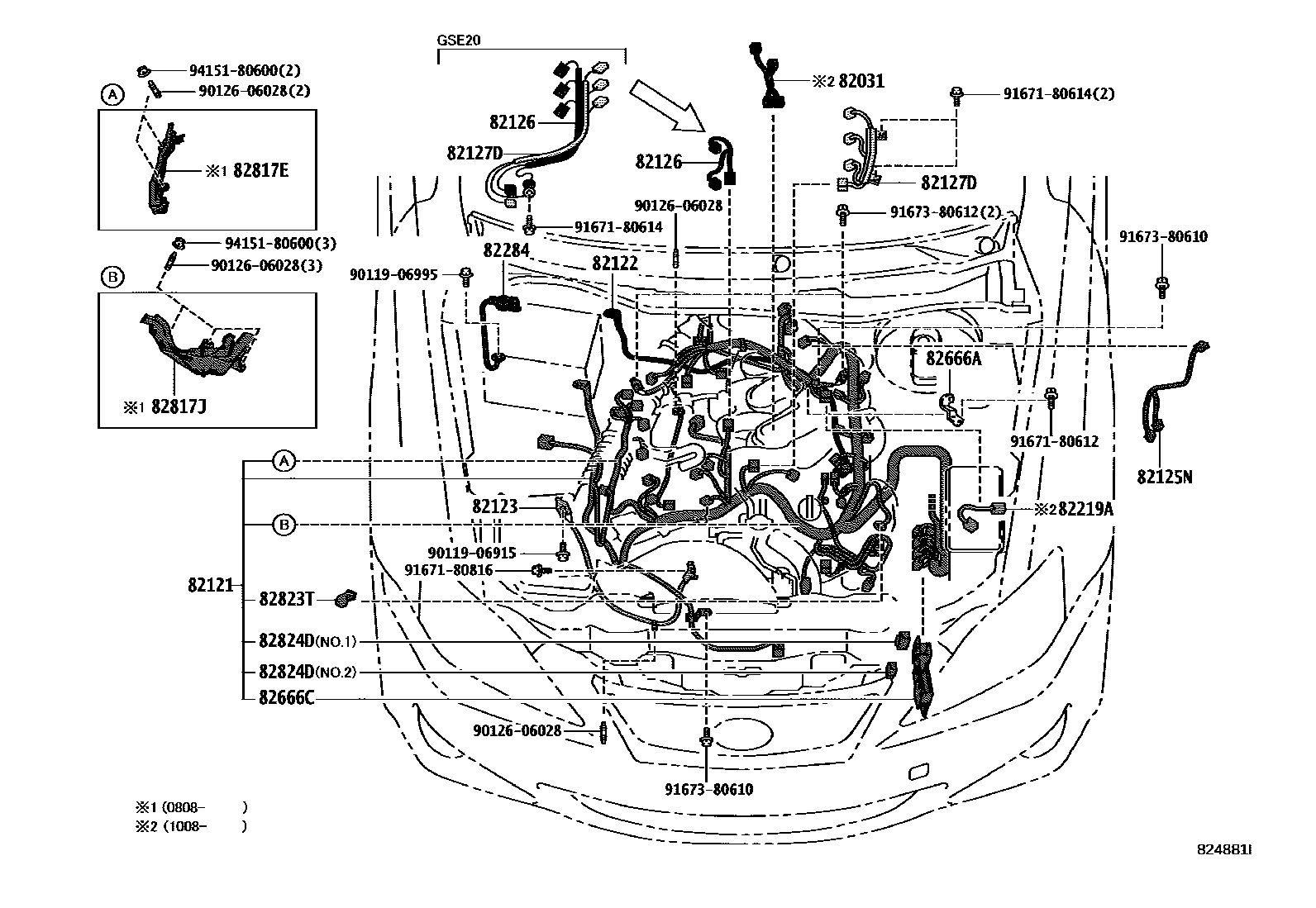

Diagram
23 parts
