Open RegionYearModelModelCode Details
USA / Canada 2013 ES350 300H GSV60L-BETGKA
Catalog: LEXUS202608 Engine: 3500CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Doors Description: 4-DOOR Color Code: 4V3 Trim Code: LB01 Production: 201206-201507 Model Short: GSV60L-BETGKA Region: NA Native Region: US

Lexus ES350-300H 2013 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84540-33010 SWITCH ASSY, NEUTRAL START 1
Note:GSV60 Production:2012-06 – 2015-07
89615-20090 SENSOR, KNOCK CONTROL 2
Note:GSV60 Production:2012-06 – 2015-07
89467-33220 SENSOR, AIR FUEL RATIO 1
Note:GSV60 Production:2012-06 – 2014-08
89530-33291 COMPUTER ASSY, TRANSMISSION CONTROL 1
Note:GSV60 Production:2012-10 – 2015-07
83530-28020 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07 Spec:DENSO
83530-60020 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 1
Note:AVV60,GSV60 Production:2012-06 – 2015-07 Spec:YAZAKI
89491-48010 SENSOR, ENGINE OIL LEVEL 1
Note:GSV60 Production:2012-06 – 2015-07
89465-33420 SENSOR, OXYGEN NO.2 1
Note:GSV60 Production:2012-06 – 2014-08
89465-33360 SENSOR, OXYGEN 1
Note:GSV60 Production:2012-06 – 2014-08
89467-33230 SENSOR, AIR FUEL RATIO, NO.2 1
Note:GSV60 Production:2012-06 – 2014-08
91651-40620 standard —
91551-80830 standard —
87616-42020 standard —
91551-80825 standard —
91621-B0616 standard —
91671-80612 standard —
82715-33J40 standard —
82715-33G70 standard —
82715-33B50 standard —

Diagram

19 parts

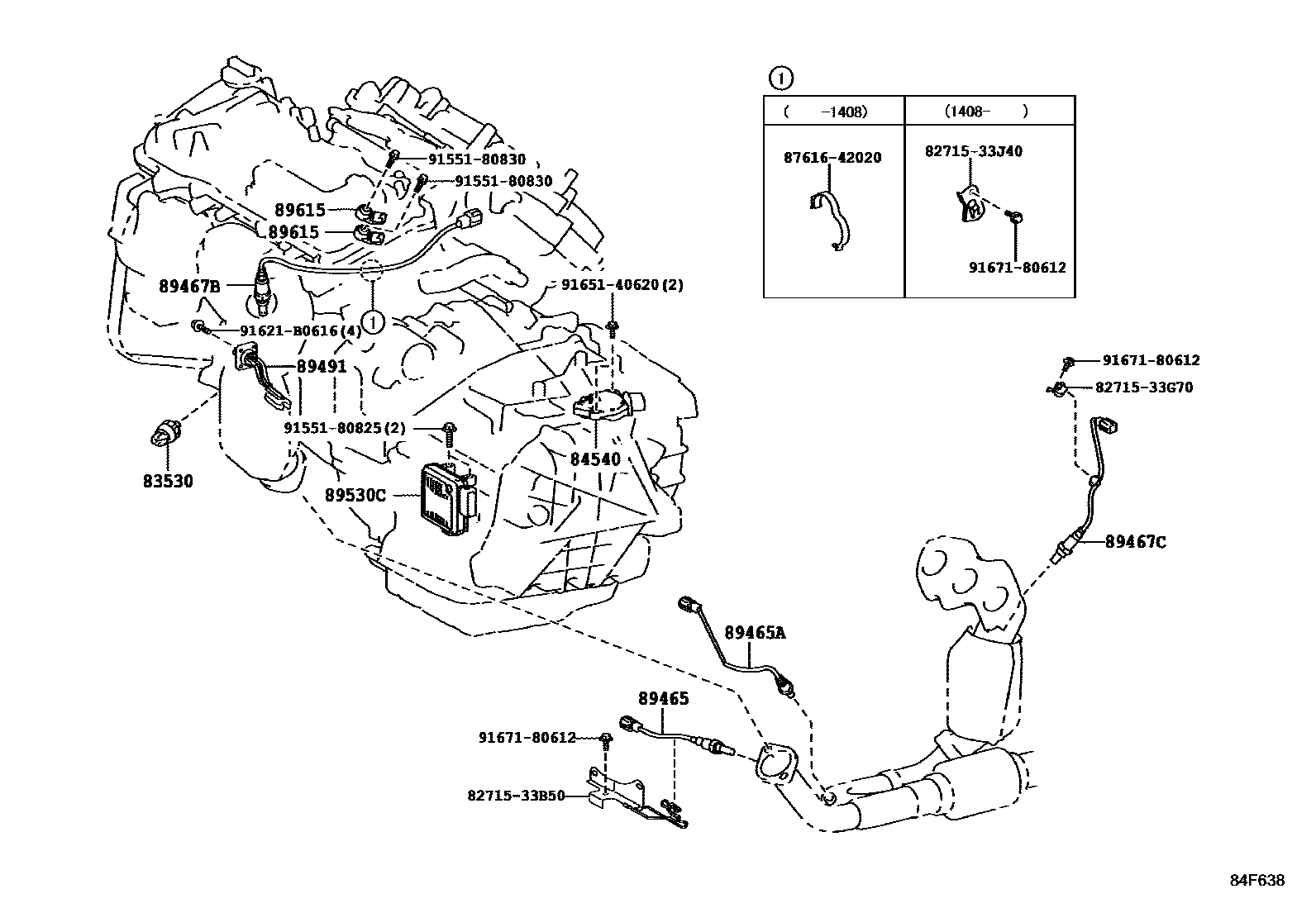

Lexus ES350-300H 2013 — Switch & Relay & Computer
