Lexus LX450D-460-570 2012 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84231-53010 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:URJ20# Production:2012-01 – 2015-09 | |||
| 89430-60071 | COMPUTER ASSY, OUTER MIRROR CONTROL | 1 | |
Note:URJ201..LHD Production:2012-01 – 2015-09 | |||
| 84231-53010 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:URJ20# Production:2012-01 – 2015-09 | |||
| 89226-60041 | COMPUTER, MULTIPLEX NETWORK BODY, NO.2 | 1 | |
Note:URJ201..GCC Production:2012-01 – 2012-12 Replacements:89226-60042 (fitment: unknown) Spec:TAILGATE DOOR EASY CLOSER-WITH | |||
| 84810-50020 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:URJ20# Production:2012-01 – 2015-09 | |||
| 84040-50120 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:URJ201..LHD Production:2012-01 – 2015-09 | |||
| 84012-60690 | CONTROL & PANEL SUB-ASSY, INTEGRATION | 1 | |
Note:URJ20#..ARL,GCC Production:2012-01 – 2015-09 | |||
| 84810-50020 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:URJ20# Production:2012-01 – 2015-09 | |||
| 84930-50060 | SWITCH ASSY, DOOR CONTROL | 1 | |
Note:URJ20# Production:2012-01 – 2015-09 | |||
| 84927-60060 | SWITCH, SEAT MEMORY | 1 | |
Note:URJ201..LHD Production:2012-01 – 2015-09 | |||
| 84190-60030-C0 | SWITCH ASSY, FOLD SEAT | 1 | |
Note:URJ201..GCC Production:2012-01 – 2015-09 Spec:BLACK,TRIM2#,3#,4# | |||
| 86210-60151 | INVERTER ASSY, VOLTAGE | 1 | |
Note:URJ20# Production:2012-01 – 2015-09 Replacements:86210-60152 (fitment: unknown) | |||
| 85530-60240-C0 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:URJ201..GCC Production:2012-01 – 2015-09 Spec:BLACK,TRIM2#,3#,4#,5# | |||
| — | Part does not apply to this vehicle configuration. | 85531 | — |
| — | Part does not apply to this vehicle configuration. | 85536 | — |
| 90901-48003 | standard | — | |
| 90119-06983 | standard | — | |
| 90159-60303 | standard | — | |
| 90189-06227 | standard | — | |
| 90119-06915 | standard | — | |

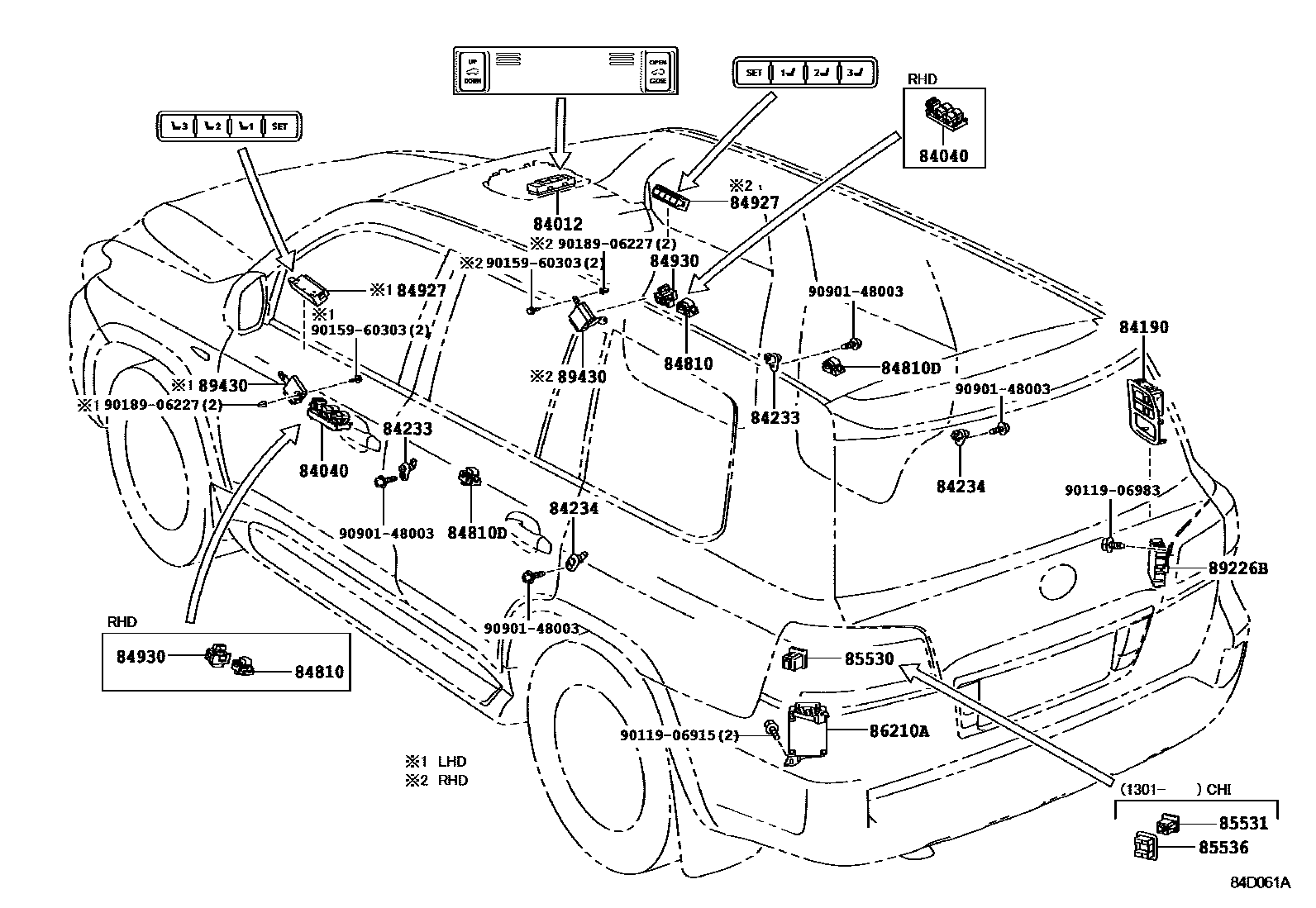

Diagram
18 parts
