General 2011 NATIVA PAJ SPORT G EXP MMTH KH4W
Catalog: MMC202408 Color Code: C06A Frame Mask: KG,KH# Model Short: KH4W Modification: 2500DIESEL/4WD(WAGON) - M-LINE(5SEATER/EURO2,3),5FM/T LHD Options: J94: RR DISC BRAKE; FUEL TANK CHANGE; RV METER; ANTENNA + 6 SPEAKER; 3RD SEAT; WOOD PRINT PANEL; RADIATOR GRILLE CHANGE; SPECIAL ORNAMENT (C); LICENSE PLATE GARNISH (COLOR KEY); RR PANEL GARNISH; SIDE PROTECT MOULDING; FOG LAMP; RR COOLER (STAND TYPE); AIR FILTER; NORDIC SPEC HARNESS (M80H04); IMMOBILIZER + OTHER OPTION; PXX + VXX; P/W + R/CONT MIR + WOOD PRINT PANEL; CTR DISPLAY + OTHER OPTION; HXX + JXX; IMMOBILIZER + KEYLESS ENTRY; IMMOBILIZER; KEY LESS ENTRY (2SET); TOOL SET; ROOF CARRIER ATTACHMENT; OWNER'S GUIDE FOR SPANISH Production: 200903-201509 Production Date: 201112 Trim Code: 11F Year: 2011 Region: OTHER Native Region: M80

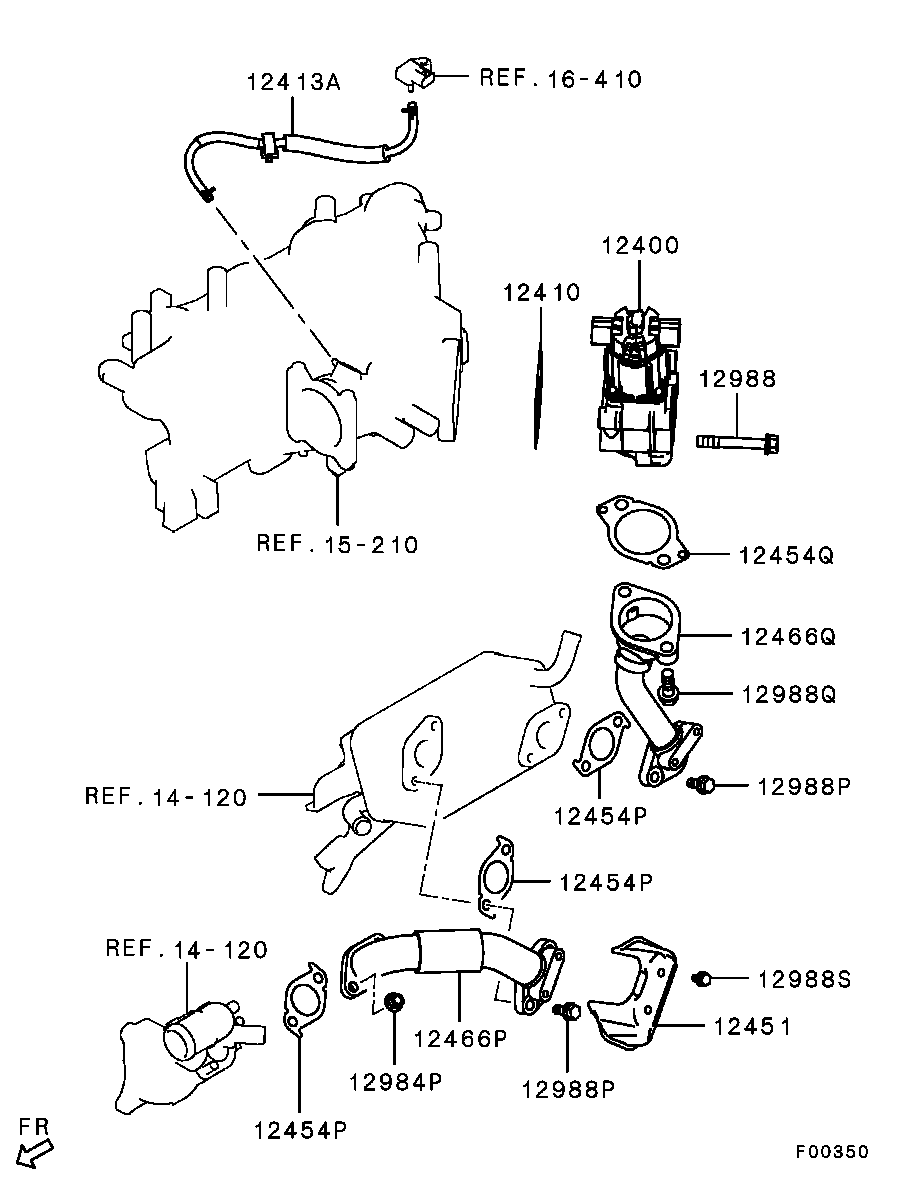

Mitsubishi NATIVA-PAJ-SPORT-G-EXP-MMTH 2011 — Emission Control / 1001.3- Exc High Power

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
2036A320 HOSE ASSY,EMISSION VACUUM CONTROL 1
Production:2010-01 – 2015-09
1582A078 PIPE,EGR VALVE 1
Note:ALL Production:2009-03 – 2013-04 Replacements:1582A482 (fitment: unknown)
1582A211 PIPE,EGR VALVE 1
Note:ALL Production:2009-03 – 2013-04
MF434104 NUT,EGR EQUIP 2
Note:ALL Production:2009-03 – 2015-09 Spec:FLANGE,8 Size:8 Shape:FLANGE
MR161679 GASKET,EGR PIPE 3
Note:ALL Production:2009-03 – 2013-04
MF140224 BOLT,EGR EQUIP 4
Note:ALL Production:2009-03 – 2013-04 Spec:FLANGE,8X18 Size:8X18 Shape:FLANGE Remarks:7T
MF911142 BOLT,EGR EQUIP 2
Note:ALL Production:2011-12 – 2013-04 Spec:FLANGE,6X12 Size:6X12 Shape:FLANGE
MF911644 BOLT,EGR EQUIP 2
Note:ALL Production:2011-12 – 2013-04 Spec:FLANGE,10X30 Size:10X30 Shape:FLANGE
1582A079 PIPE,EGR VALVE 1
Note:ALL Production:2009-03 – 2013-04
1582A152 PIPE,EGR VALVE 1
Note:ALL Production:2009-03 – 2013-04
1582A035 GASKET,EGR PIPE 1
Note:ALL Production:2009-03 – 2013-04
1582A031 PROTECTOR,EGR PIPE HEAT 1
Note:ALL Production:2009-03 – 2013-04
1582A039 GASKET,EGR VALVE 1
Note:ALL Production:2009-03 – 2013-04
1582A483 VALVE,EGR 1
Note:ALL Production:2009-03 – 2013-04
MF911689 BOLT,EGR EQUIP 4
Note:ALL Production:2011-12 – 2013-04 Spec:FLANGE,10X65 Size:10X65 Shape:FLANGE
14 120 standard — —
15 210 standard — —
16 410 standard — —

Diagram

18 parts
Mitsubishi NATIVA-PAJ-SPORT-G-EXP-MMTH 2011 — Emission Control / 1001.3- Exc High Power
