Toyota Highlander-Kluger 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89467-F6020 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:TXUA7#..ARL Production:2022-10 – 2023-12 | |||
| 89422-33040 | SENSOR, WATER TEMPERATURE | 1 | |
Note:AXUH78,TXUA7#..RHD Production:2022-10 – 2023-12 | |||
| 8946A-78030 | BRACKET, WIRING HARNESS CLAMP, NO.3 | 1 | |
Note:TXUA7#..ARL Production:2022-10 – 2023-12 | |||
| 83520-60070 | GAGE ASSY,OIL PRESSURE SENDER | 1 | |
Note:TXUA7#..ARL Production:2022-10 – 2023-12 | |||
| 89429-12010 | SENSOR, TEMPERATURE NO.2 | 1 | |
Note:TXUA7#..ARL Production:2022-10 – 2023-12 | |||
| 89491-33052 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:AXUH78,TXUA7#..RHD Production:2022-10 – 2023-12 | |||
| 89615-78010 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXUH78,TXUA7#..RHD Production:2022-10 – 2023-12 Spec:(J) Spec Note:(Japan made) | |||
| 89615-F6010 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXUH78,TXUA7#..RHD Production:2022-10 – 2023-12 Replacements:89615-78010 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 84540-06021 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:TXUA7#..ARL Production:2022-10 – 2023-12 Replacements:84540-33021 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| — | Part does not apply to this vehicle configuration. | 84546 | — |
| 8946A-48110 | BRACKET,WIRING HARNESS CLAMP | 1 | |
Note:TXUA7#..ARL Production:2022-10 – 2023-12 | |||
| 89467-0E450 | SENSOR, AIR FUEL RATIO | 1 | |
Note:TXUA7#..ARL Production:2022-10 – 2023-12 | |||
| 90119-A0160 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 90468-14044 | standard | — | |
| 90468-15007 | standard | — | |
| 90430-12031 | standard | — | |
| 90119-06A23 | standard | — | |
| 90119-A0476 | standard | — | |
Replacements:90119-06A23 (fitment: unknown) | |||
| 91651-40625 | standard | — | |
| 91653-40625 | standard | — | |
| 90080-11683 | standard | — | |
Replacements:91651-40625 (fitment: unknown) | |||
| 91551-80835 | standard | — | |
| 90105-A0120 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||

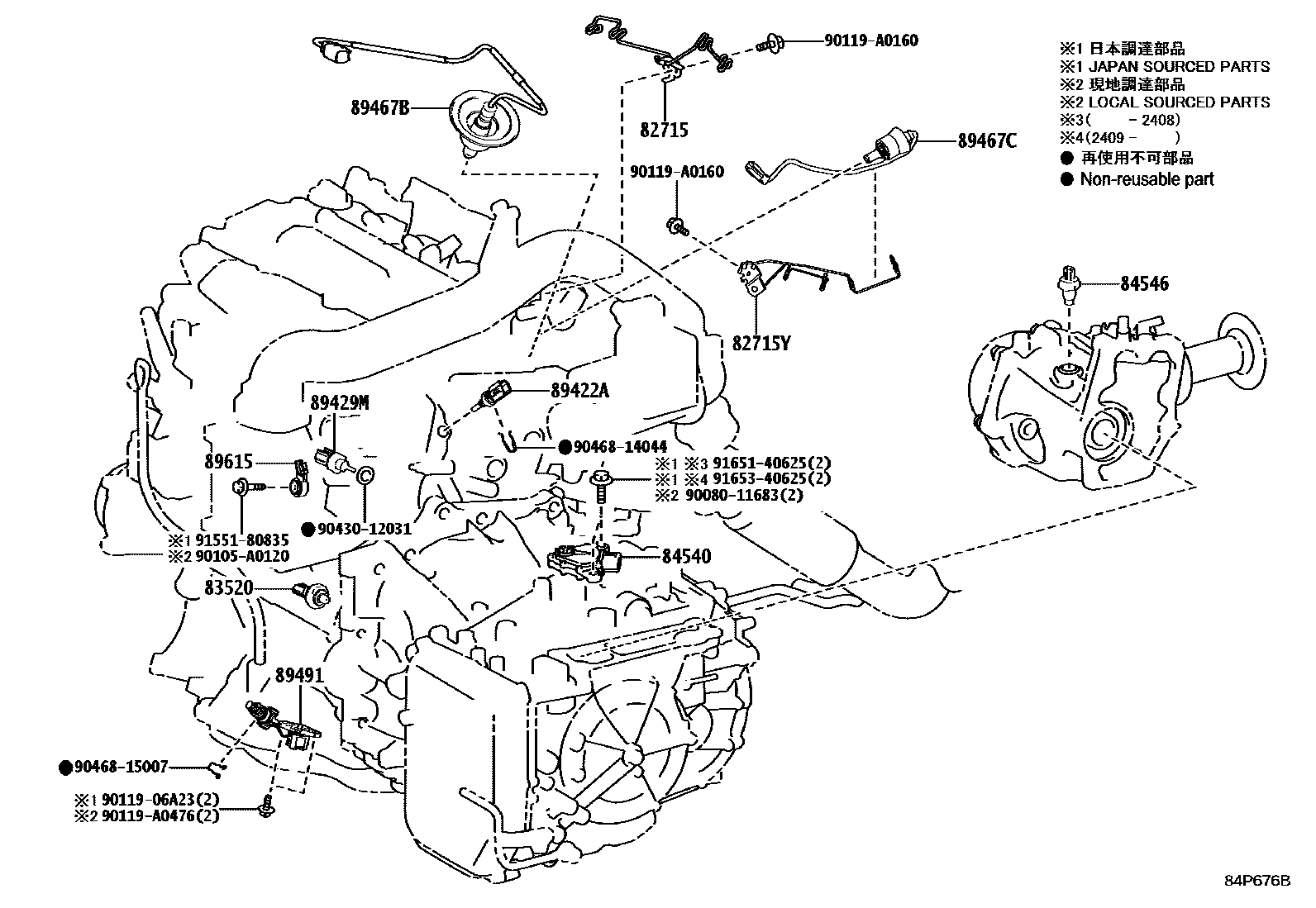

Diagram
22 parts
