Open RegionYearModelModelCode Details
General 2014 COROLLA ZRE172L-DEFDK
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: SEDAN Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: 4-DOOR Color Code: 1F9 Trim Code: FA11 Production: 201404-201608 Model Short: ZRE172L-DEFDK Region: OTHER Native Region: GR

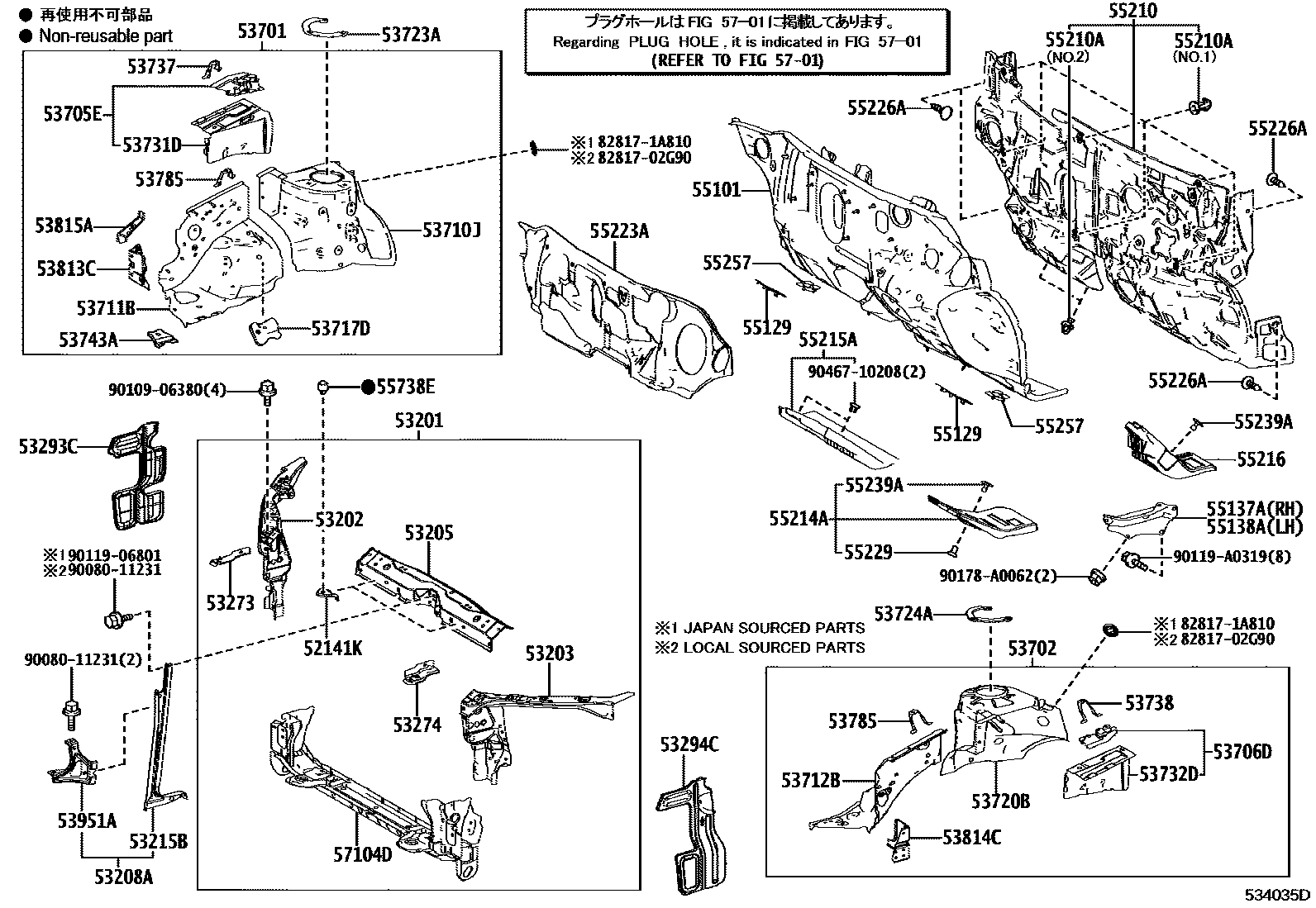

Toyota Corolla 2014 — Front Fender Apron & Dash Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
52141-02150 BRACKET, FRONT ENERGY ABSORBER MOUNTING, RH 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53201-02330 SUPPORT SUB-ASSY, RADIATOR 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53203-02160 SUPPORT SUB-ASSY, RADIATOR, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53205-02210 SUPPORT SUB-ASSY, RADIATOR, UPPER 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53208-02170 SUPPORT SUB-ASSY, HOOD LOCK 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53215-02170 SUPPORT, HOOD LOCK 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53273-02110 BRACKET, FRONT BUMPER ARM MOUNTING, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53274-02160 BRACKET, FRONT BUMPER ARM MOUNTING, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53293-02140 DEFLECTOR, RADIATOR SIDE, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53294-02140 DEFLECTOR, RADIATOR SIDE, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53701-02280 APRON SUB-ASSY, FRONT FENDER, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53702-02200 APRON SUB-ASSY, FRONT FENDER, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53705-02070 MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53737-02130 PLATE, FRONT APRON TO COWL SIDE MEMBER, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53738-02100 PLATE, FRONT APRON TO COWL SIDE MEMBER, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53785-02060 REINFORCE, FRONT SUSPENSION UPPER ARM, NO.1 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:LH,RH
53706-02070 MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53710-02905 APRON ASSY, FRONT FENDER, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2015-08
53711-02090 APRON, FRONT FENDER, FRONT RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53743-02010 REINFORCEMENT, FRONT FENDER APRON, FRONT RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53717-02020 GUSSET, FENDER APRON, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53720-02903 APRON ASSY, FRONT FENDER, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2015-08
53723-02081 REINFORCEMENT, FRONT SPRING SUPPORT, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53723-02081 REINFORCEMENT, FRONT SPRING SUPPORT, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53731-02100 MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53732-02100 MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53813-02110 EXTENSION, FRONT FENDER, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53814-02170 EXTENSION, FRONT FENDER, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53712-02100 APRON, FRONT FENDER, FRONT LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53815-02010 REINFORCEMENT, FRONT SIDE PANEL, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
53951-02100 SUPPORT, FRONT END PANEL, UPPER 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
55101-02A00 PANEL SUB-ASSY, DASH 1
Note:ZRE172..6F Production:2013-08 – 2014-07 Rev.ref.no To:0018 Serial Ranges:Other: To P174024 · ZRE172 · · 00180010
55129-02060 COVER, DASH PANEL HOLE 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:RH
55139-02050 COVER, DASH PANEL HOLE 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:LH
55137-02061 BRACE, DASH TO FRAME, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
55138-02051 BRACE, DASH TO FRAME, LH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
55214-02120 PAD, DASH PANEL INSULATOR, NO.2 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
55215-02060 PAD, DASH PANEL INSULATOR, NO.3 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
55216-02060 PAD, DASH PANEL INSULATOR, NO.4 1
Note:ZRE172..6F Production:2013-08 – 2016-08
55223-02210 INSULATOR, DASH PANEL, OUTER 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
90467-08186-C0 CLIP 4
Note:ZRE172 Production:2013-08 – 2014-09 Spec:BLACK
55229-48010 PLATE, DASH PANEL INSULATOR, NO.4 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
55239-02010 PLATE, DASH PANEL INSULATOR, NO.3 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(L) Spec Note:(Local made)
55239-48020 PLATE, DASH PANEL INSULATOR, NO.3 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:(J) Spec Note:(Japan made)
55257-02010 COVER, DASH PANEL OPENING 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
55738-02030 STOPPER, HOOD, RH 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57104-02370 MEMBER SUB-ASSY, FRONT CROSS 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
90467-11122 CLIP 6
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:NO.1
90467-11127 CLIP 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Spec:NO.2
55210-02430 INSULATOR ASSY, DASH PANEL 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2015-07 Replacements:55210-02580 (fitment: unknown)
53202-02150 SUPPORT SUB-ASSY, RADIATOR, RH 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
82817-02G90 standard —
82817-1A810 standard —
90080-11231 standard —
Replacements:91651-60616 (fitment: unknown)
90119-A0319 standard —
Replacements:90119-08C89 (fitment: unknown)
90109-06380 standard —
90119-06801 standard —
90178-A0062 standard —
Replacements:94151-80840 (fitment: unknown)
90467-10208 standard —

Diagram

59 parts
Toyota Corolla 2014 — Front Fender Apron & Dash Panel
