Open RegionYearModelModelCode Details
General 2014 COROLLA ZRE172L-DEFDK
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: SEDAN Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: 4-DOOR Color Code: 1F9 Trim Code: FA11 Production: 201404-201608 Model Short: ZRE172L-DEFDK Region: OTHER Native Region: GR

Toyota Corolla 2014 — Hole Plug

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
57013-02110 MEMBER SUB-ASSY, FLOOR, FRONT RH 57013A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57014-02100 BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH 57014B 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2015-08 Replacements:57014-02101 (fitment: unknown)
57016-02070 REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH 57016 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57017-01010 REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH 57017 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57051-02020 MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57051A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2014-12
57052-02020 MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57052A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2014-12
57053-02020 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH 57053 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57054-02020 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH 57054A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2014-12
57101-02924 MEMBER SUB-ASSY, FRONT SIDE, RH 57101 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57102-02940 MEMBER SUB-ASSY, FRONT SIDE, LH 57102 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08 Replacements:57102-02942 (fitment: unknown)
57104-02370 MEMBER SUB-ASSY, FRONT CROSS 57104D 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57105-02050 BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH 57105 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57106-02030 BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH 57106E 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57107-02905 REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH 57107D 1
Note:ZRE172..CVT,MTM Production:2014-04 – 2016-08
57108-02905 REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH 57108D 1
Note:ZRE172..CVT,MTM Production:2014-04 – 2016-08
57111-02051 MEMBER, FRONT SIDE, INNER RH 57111D 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57112-02082 MEMBER, FRONT SIDE, INNER LH 57112E 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57113-02101 EXTENSION, FRONT SIDE MEMBER, RH 57113 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57114-02101 EXTENSION, FRONT SIDE MEMBER, LH 57114 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57115-02030 PLATE, FRONT SIDE MEMBER, OUTER RH 57115A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57116-02080 PLATE, FRONT SIDE MEMBER, OUTER LH 57116A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57117-02010 RETAINER, FRONT BUMPER ARM, RH 57117D 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57118-02010 RETAINER, FRONT BUMPER ARM, LH 57118C 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57153-02030 REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH 57153 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57154-02020 REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH 57154 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57158-02070 REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH 57158 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57407-02120 MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57407C 1
Note:ZRE172..GEN Production:2014-04 – 2016-08
57401-02230 MEMBER, FLOOR SIDE, INNER RH 57411A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57402-02230 MEMBER, FLOOR SIDE, INNER LH 57412A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57417-02150 REINFORCEMENT, FRONT FLOOR UNDER 57417B 2
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57419-02020 REINFORCEMENT, FRONT FLOOR UNDER, REAR 57419H 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57435-02030 MEMBER, CENTER FLOOR SIDE, RH 57435E 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57436-02030 MEMBER, CENTER FLOOR SIDE, LH 57436D 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57041-02030 MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57601 1
Note:ZRE172..GEN Production:2014-04 – 2016-08
57042-02030 MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57602 1
Note:ZRE172..GEN Production:2014-04 – 2016-08
57605-02210 MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57605B 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57606-02270 MEMBER SUB-ASSY, REAR ABSORBER MOUNTING 57606D 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57615-02920 MEMBER, REAR FLOOR SIDE, REAR RH 57615A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57616-02907 MEMBER, REAR FLOOR SIDE, REAR LH 57616A 1
Note:ZRE172 Production:2013-08 – 2016-08
57805-02050 REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 57805F 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57807-02020 REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2 57807B 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08
57809-02010 REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3 57809A 1
Note:ZRE172..CVT,MTM Production:2013-08 – 2016-08

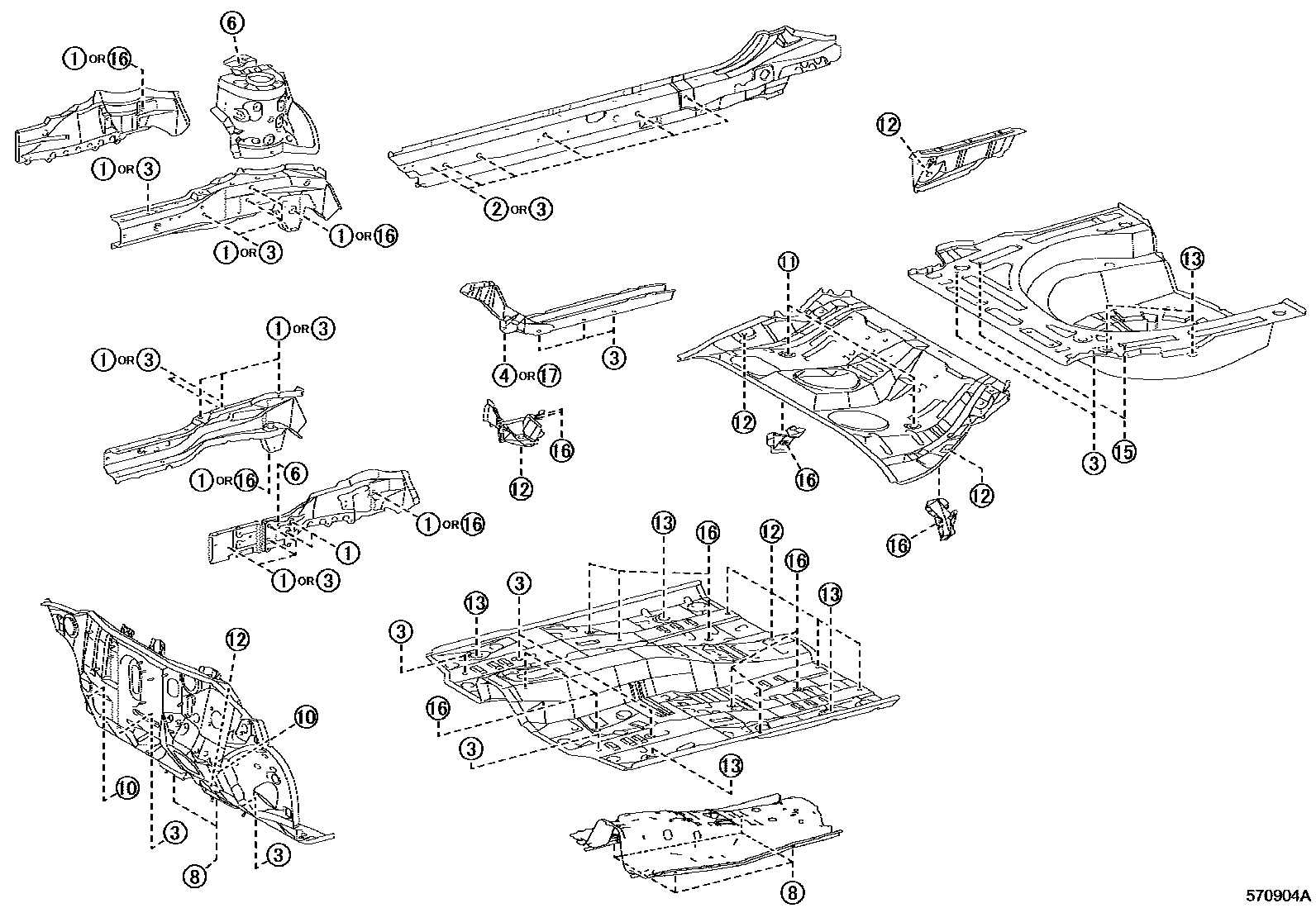

Diagram

42 parts
