Toyota COROLLA-SED-NAP 2019 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-02G50 | SWITCH ASSY, STEERING PAD | 1 | |
Note:ZRE212..D,L Production:2019-03 – 2020-07 | |||
| 84308-02130 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:MZEA12,ZRE212..D,L,S;MZEA12,ZRE212..(X,Y)..USA Production:2019-03 – 2020-07 | |||
| 84652-06400 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:MZEA12,ZRE212..(L,S,X,Y)..USA Production:2019-03 – 2020-07 Replacements:84652-33620 (fitment: unknown) | |||
| 8924B-02190 | SENSOR, STEERING | 1 | |
Note:MZEA12,ZRE212 Production:2019-03 – 2020-07 | |||
| — | Part does not apply to this vehicle configuration. | 84610H | — |
| — | Part does not apply to this vehicle configuration. | 84610G | — |
| 84319-02020 | HOUSING, STEERING WHEEL SWITCH | 1 | |
Note:MZEA12,ZRE212 Production:2019-03 – 2020-07 | |||
| 84329-02050 | SWITCH, TURN SIGNAL | 1 | |
Note:MZEA12,ZRE212..USA Production:2019-03 – 2020-07 | |||
| 84450-06050 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:ZRE212..D,L;MZEA12..CVT..S..USA Production:2019-03 – 2020-07 | |||
| 84052-71010 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:ZRE212..D,L;MZEA12..CVT..S..USA Production:2019-03 – 2020-07 | |||
| 85432-06040 | SOLENOID, KEY INTERLOCK | 1 | |
Note:ZRE212..CVT..(D,L);MZEA12..CVT..S..USA Production:2019-03 – 2020-07 | |||
| — | Part does not apply to this vehicle configuration. | 84523 | — |
| 90080-15079 | standard | — | |
| 90159-50265 | standard | — | |

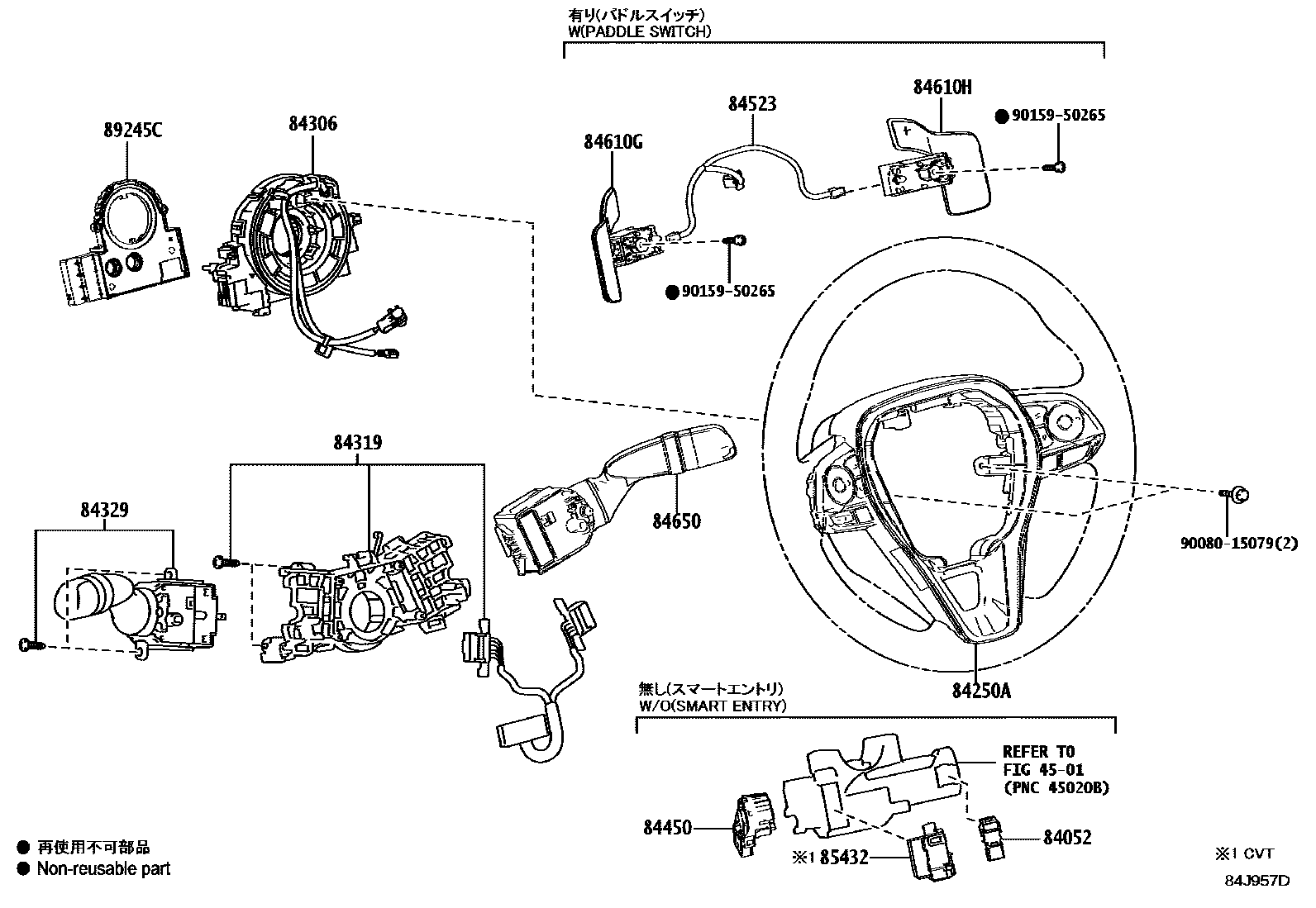

Diagram
11 parts
