Toyota HILUX-DOUBLE-CAB 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83950-0K031 | LAMP ASSY, TELLTALE | 1 | |
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-08 – 2023-10 | |||
| 83910-0K180 | CLOCK ASSY | 1 | |
Note:GGN125,GUN125,126,13#,TGN126,136..AGTP Production:2022-09 – 2023-10 | |||
| 85530-0K040 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:TGN136..BZAG;GUN125,126,135,TGN126..AGTP..(L,S) Production:2022-08 – 2023-10 | |||
| 85535-0K090-C0 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:TGN136..BZAG;GUN125,126,135,TGN126..AGTP..(L,S) Production:2022-08 – 2023-10 Spec:BLACK,TRIM2# | |||
| — | Part does not apply to this vehicle configuration. | 84453 | — |
| 84223-0K010 | SWITCH, TRANSFER POSITION | 1 | |
Note:GGN125,GUN125,126,TGN126..AGTP Production:2022-08 – 2023-10 | |||
| — | Part does not apply to this vehicle configuration. | 84152 | — |
| — | Part does not apply to this vehicle configuration. | 84988H | — |
| — | Part does not apply to this vehicle configuration. | 89611 | — |
| — | Part does not apply to this vehicle configuration. | 87290 | — |
| — | Part does not apply to this vehicle configuration. | 84752 | — |
| — | Part does not apply to this vehicle configuration. | 84751 | — |
| — | Part does not apply to this vehicle configuration. | 84255 | — |
| — | Part does not apply to this vehicle configuration. | 84970E | — |
| 84970-0K220 | SWITCH ASSY, COMBINATION, NO.3 | 1 | |
Note:GGN125,GUN125,135..AGTP..(H,L)..LA Production:2022-08 – 2023-10 Spec:DIFFERENTIAL LOCK-WITH,VSC OFF & *RDL SW | |||
| — | Part does not apply to this vehicle configuration. | 84970G | — |
| 84270-0K050 | SWITCH ASSY, DIESEL PARTICULATE REDUCTION | 1 | |
Note:GUN126..AGTP..H..LA;GUN125,135..AGTP..LA;GUN126..AGTP..6F..S..LA Production:2022-08 – 2023-10 Spec:EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS) | |||
| — | Part does not apply to this vehicle configuration. | 84721B | — |
| 90167-T0012 | standard | — | |
Replacements:93568-55014 (fitment: unknown) | |||
| 93568-55014 | standard | — | |

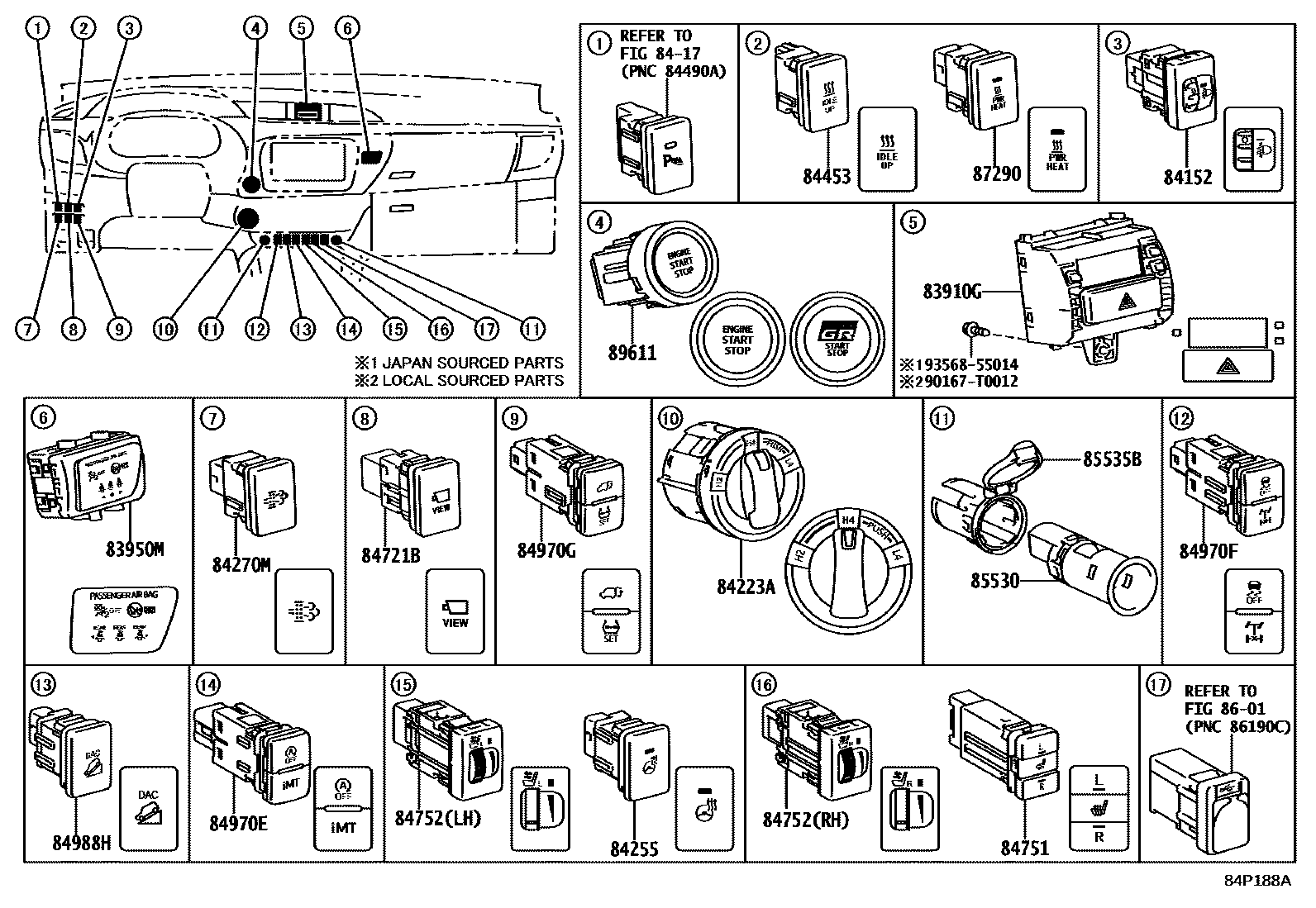

Diagram
9 parts
