Toyota Hilux 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84751 | — |
| 83950-0K030 | LAMP ASSY, TELLTALE | 1 | |
Note:GUN122,TGN136..(ADC,TDC)..5F..(HDCR,HTWC);GGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,138..(ADC,TDC)..(BZAGT,LA) Production:2015-05 – 2019-05 Fitment:Matches · model | |||
| 83910-0K180 | CLOCK ASSY | 1 | |
Note:TGN136..ADC,ASC,SDC;GGN125,135,GUN122,125,126,13#,KUN12#,13#,LAN125,TGN12#,138..ADC,ASC,KDC,KSC,MDC,MSC,PDC,PSC,SDC,SSC,SXT Production:2015-11 – 2021-05 Fitment:Matches · model | |||
| 84223-0K010 | SWITCH, TRANSFER POSITION | 1 | |
Note:GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128 Production:2015-05 – 2021-05 Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 84453 | — |
| — | Part does not apply to this vehicle configuration. | 87290 | — |
| — | Part does not apply to this vehicle configuration. | 84152 | — |
| — | Part does not apply to this vehicle configuration. | 89611 | — |
| 84725-0K080 | SWITCH, DIFFERENTIAL LOCK | 1 | |
Note:GUN136..BZAGT;GUN126..X..BZAGT;GUN126..ADC..6FC..X;GUN126..LHD..(ADC,SDC)..(H,L,M,S);GUN125,135..LHD..(ADC,SDC,SSC,SXT)..S;GUN125,135,TGN136..(ADC,ASC,SDC,SSC,SXT)..(L,M,X);GGN125,LAN125,TGN126,128,138..LHD..(ADC,ASC,SDC,SSC) Production:2017-10 – 2020-10 Spec:DIFFERENTIAL LOCK-WITH Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 84970 | — |
| — | Part does not apply to this vehicle configuration. | 84988L | — |
| 85530-0K040 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:KUN126..PKN;GUN120,122..X;TGN121..S..GCC;GUN126..(H,M)..PKN;GUN122..(L,S)..(GCC,GEN,PH,PKN);TGN121..(SDC,SSC,TDC,TSC)..(L,X);TGN136..(ADC,ASC,SDC,TDC,TSC)..5F..(S,X);GUN135,KUN126..(L,S,X)..(ARL,BZAGT,GEN,KEN,LA,PH,SA,VN);GGN12#,GUN112,123,126,136,KUN112,122,125,13#,LAN125,TGN11#,120,126,138..L,S,X;GUN125..(ADC,ASC,KDC,KSC,MSC,SDC,SSC,SXT,TDC,TSC,TXT)..(L,S,X)..(ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,SA,VN) Production:2015-05 – 2021-05 Fitment:Matches · model | |||
| 85535-0K090-C0 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:KUN125..TXT..L..GEN;GUN125..LHD..(L,X)..GEN;KUN125..TDC..L..(GEN,IDN);KUN125..LHD..(S,X)..(LA,SA);GUN125..LHD..(SDC,SSC,TSC)..X;GUN125..LHD..S..(BZAGT,LA,PH,SA);GUN122..TDC..(L,S,X)..(ARL,GEN,PH);GUN125,126,KUN126..TDC..ATM..L..GEN;TGN136..(ADC,ASC,SDC,TDC,TSC)..5F..(S,X);GUN125..(ADC,ASC,TDC)..(L,X)..(ARL,BZAGT,IDN,LA);TGN121..(SDC,SSC,TDC,TSC)..(L,X)..(ARL,GEN,SA,TH);GUN135,KUN122,TGN126..(L,S,X)..(ARL,BZAGT,GEN,KEN,LA,PH,SA);GUN125,KUN125..RHD..(KDC,KSC,SDC,SSC,SXT,TSC,TXT)..(L,S,X)..(ARL,GEN,IDN,KEN,SA);GGN12#,GUN123,126,136,KUN126,135..(ADC,ASC,PDC,SDC,SSC,TDC,TSC,TXT)..(L,S,X)..(ARL,BZAGT,LA,PKN,SA,TH);GUN112,120,122,KUN112,LAN125,TGN110,120,138..(ADC,PSC,SDC,SSC,TSC)..(L,S,X)..(ARL,BZAGT,GEN,IDN,PH,PKN,SA,TH) Production:2015-05 – 2021-05 Spec:BLACK,TRIM2# Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 84988H | — |
| — | Part does not apply to this vehicle configuration. | 85531 | — |
| — | Part does not apply to this vehicle configuration. | 84746 | — |
| — | Part does not apply to this vehicle configuration. | 84752 | — |
| 84270-0K050 | SWITCH ASSY, DIESEL PARTICULATE REDUCTION | 1 | |
Note:GUN125,135..ADC..6F..LA;GUN126..ADC..6FC..M..LA Production:2018-08 – 2020-10 Spec:EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS) Fitment:Matches · model | |||
| — | Part does not apply to this vehicle configuration. | 84255 | — |
| 90167-T0012 | standard | — | |
Replacements:93568-55014 (fitment: unknown) Fitment:Matches · model | |||
| 93568-55014 | standard | — | |
Fitment:Matches · model | |||

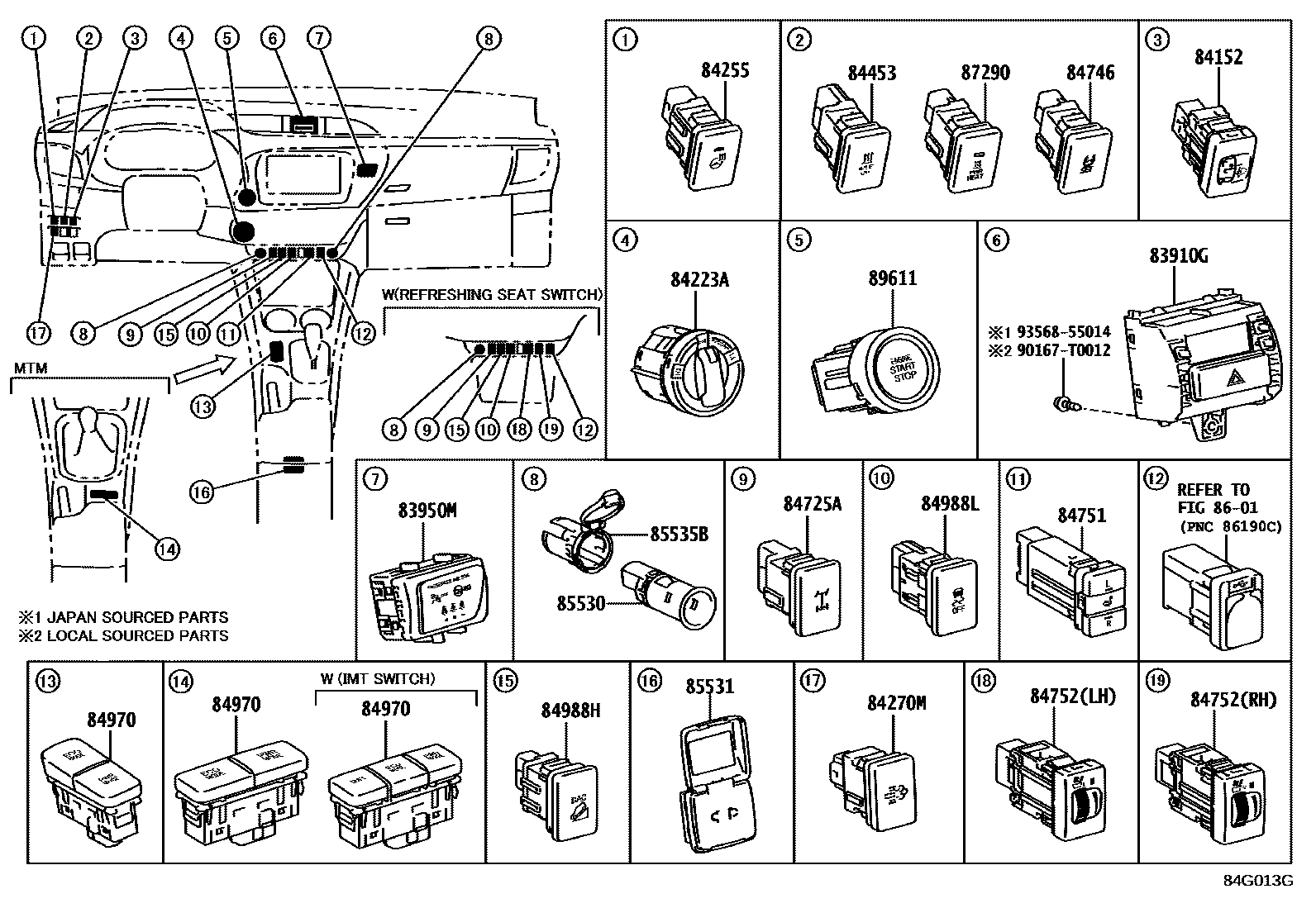

Diagram
9 parts
