Toyota Hilux 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-71010 | GAGE ASSY, FUEL SENDER | 1 | |
Note:KUN2#,3#..CO,LA Production:2011-10 – 2015-10 Fitment:Matches · configuration | |||
| 84810-0K010 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:KUN26..RHD;TGN16..XTR;KUN26..LHD..SR;TGN16..SCB..SA;KUN15..(SMT,XTR)..SR;TGN26..DCB..DLX..ANCOM;TGN36..DCB..DLX..HTWCF;KUN25..RHD..DLX..(IDN,SA);KUN16,25..SR..(IDN,MA,SA,TH);TGN16..(DCB,SMT)..DLX..(SA,TH);TGN36..(DCB,THDCB)..(ANCOM,GEN);GGN15,25,35,KUN16..ANCOM,ARL,GEN,SA;KUN15,TGN26..(SMT,THDCB)..DLX..(DCR,HTWC);KUN35..(DCB,SCB,SMT,XTR)..(GEN,PHL,SA,TH);KUN15,36,TGN16,26,36..SR..(DCR,HTWC,HTWCF);KUN15,TGN26..DCB..5F..(DCR,HDCR,HTWCF)..(LA,TH) Production:2011-07 – … Fitment:Matches · configuration | |||
| 84810-0K010 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:TGN16..DCB..SA;TGN26..THDCB..DLX;TGN26..DCB..DLX..ANCOM;TGN36..DCB..DLX..HTWCF;KUN15,26,TGN26..LHD..SR;KUN26..RHD..(DCB,SADCB);KUN25,36,TGN16,36..DCB..SR;KUN25..RHD..DCB..DLX..(IDN,SA);TGN36..(DCB,THDCB)..(ANCOM,GEN);KUN15,TGN26..DCB..5F..(DCR,HDCR,HTWCF)..(LA,TH);GGN15,25,35,KUN16,35..DCB..(ANCOM,ARL,GEN,PHL,SA,TH) Production:2011-07 – … Fitment:Matches · configuration | |||
| 84820-0K101 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:TGN26..DLX..HTWCF;TGN36..DCB..HTWCF;KUN26..(4FC,5F)..CO;TGN36..SR..HTWC..LA;KUN26..LHD..SADCB..SR;KUN26,36,TGN26..SR..LA Production:2013-10 – 2015-12 Fitment:Matches · configuration | |||
| 84231-0K020 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2011-07 – … Replacements:84231-53010 (fitment: unknown) Fitment:Matches · configuration | |||
| 84231-0K020 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:GGN15..DCB;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – … Replacements:84231-53010 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 84222D | — |
| — | Part does not apply to this vehicle configuration. | 82223F | — |
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) Fitment:Matches · configuration | |||
| 90109-06296 | standard | — | |
Fitment:Matches · configuration | |||
| 90430-18008 | standard | — | |
Fitment:Matches · configuration | |||

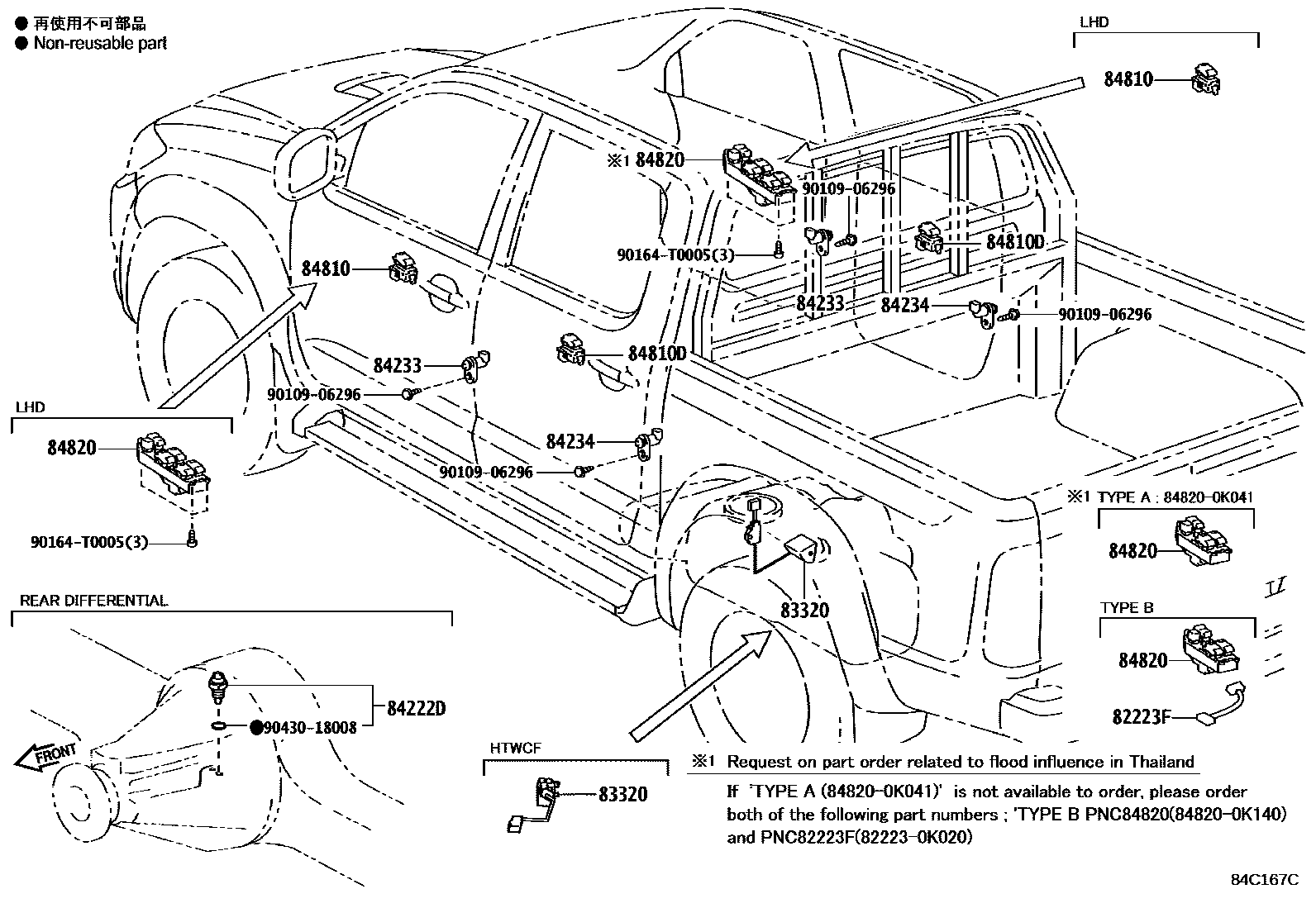

Diagram
9 parts
