Toyota Hilux 2014 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83181-35070 | SENSOR, SPEEDOMETER | 1 | |
Note:GGN15,35,KUN16,3#,TGN16,36..4FC,5FC Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 84222C | — |
| — | Part does not apply to this vehicle configuration. | 84222B | — |
| — | Part does not apply to this vehicle configuration. | 84222 | — |
| 90301-18004 | RING, O (FOR SPEEDOMETER SENSOR) | 1 | |
Note:GGN15,35,KUN16,3#,TGN16,36..4FC,5FC Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 84210 | — |
| 84540-04010 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:GGN15,25,35,KUN16,2#,3#..(4FC,5FC)..(ANCOM,ARL,CO,GEN,IDN,LA,MA,PHL,SA,TH) Production:2013-09 – … Replacements:84540-71010 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 84540-71010 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:GGN15,25,35,KUN16,2#,3#..(4FC,5FC)..(ANCOM,ARL,CO,GEN,IDN,LA,MA,PHL,SA,TH) Production:2013-09 – … Spec:(J) Spec Note:(Japan made) | |||
| 83530-28010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KUN26..SADCB;KUN15,2#,3#..SA Production:2011-07 – 2015-12 Spec:DENSO | |||
| 83530-60010 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:KUN26..SADCB;KUN15,2#,3#..SA Production:2011-07 – 2015-12 Spec:YAZAKI | |||
| — | Part does not apply to this vehicle configuration. | 89491 | — |
| — | Part does not apply to this vehicle configuration. | 89491A | — |
| 82715-0K410 | standard | — | |
| 90929-01366 | standard | — | |
| 90430-18008 | standard | — | |
| 91651-40830 | standard | — | |
| 91651-40825 | standard | — | |
| 91651-60614 | standard | — | |

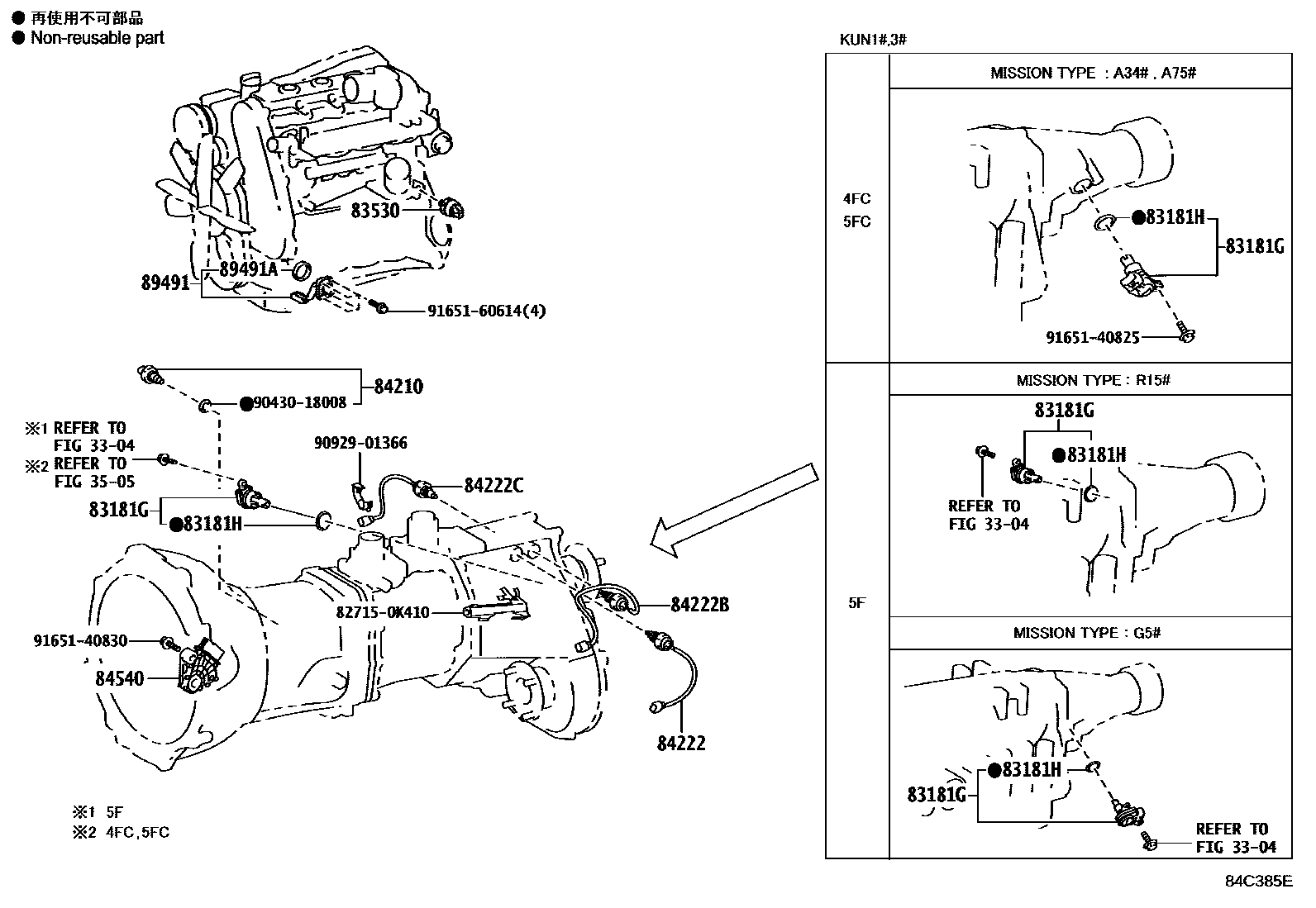

Diagram
12 parts
