Toyota Fortuner 2017 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-0K190 | GAGE ASSY, FUEL SENDER | 1 | |
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,166..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04 Replacements:83320-0K191 (fitment: unknown) | |||
| 84840-0K030 | SWITCH ASSY, BACK DOOR OPENER | 1 | |
Note:TGN156..H;TGN166..M..LA;GUN156..RHD..SA;GUN156..S..IART;TGN156..(M,S)..(GEN,LA,MA,VN);TGN166..6FC..(GEN,IDN,PKN,SA,VN);GGN155,GUN155,165..IDNSU..H..GCC;GUN155,165..(H,L,M)..(GEN,IDN,MA,PH,SA);GGN155,GUN166,TGN168..(H,M,S)..(BZAGT,GEN,LA,SA);GGN165,GUN156,KUN156..(AGTSU,IDNSU,PKNSU,VNSUV)..(H,M) Production:2015-12 – 2021-04 | |||
| 84040-0K010 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GUN156..M..ARL;GUN156,TGN166..RHD..(PKN,SA,TH);GGN155,GUN155,16#,TGN156..RHD..(MA,SA,TH) Production:2015-07 – 2018-04 Replacements:84040-0K011 (fitment: unknown) | |||
| 84810-0K080 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:GUN156..S..IART;TGN156..(AGTSU,MASUV)..(H,M);GUN15#,165,TGN166..RHD..(MA,PKN,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN15#,165,KUN156,TGN166..(AGTSU,THSUV)..(H,M)..(ARL,BZAGT,GCC,GEN,LA) Production:2015-07 – 2021-04 | |||
| 84231-0K060 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,MASUV,PKNSU,SASUV,THSUV Production:2015-07 – 2021-04 | |||
| 84810-0K080 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:GUN156..S..IART;TGN156..(AGTSU,MASUV)..(H,M);GUN15#,165,TGN166..RHD..(MA,PKN,SA,TH);GGN155,GUN166,TGN168..(M,S)..(BZAGT,SA,TH);GGN155,165,GUN15#,165,KUN156,TGN166..(AGTSU,THSUV)..(H,M)..(ARL,BZAGT,GCC,GEN,LA) Production:2015-07 – 2021-04 | |||
| — | Part does not apply to this vehicle configuration. | 86247A | — |
| — | Part does not apply to this vehicle configuration. | G9221A | — |
| — | Part does not apply to this vehicle configuration. | 86210A | — |
| 85530-0K040 | SOCKET ASSY, POWER OUTLET, NO.3 | 1 | |
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,MASUV,PKNSU,SASUV,THSUV Production:2015-07 – 2021-04 | |||
| — | Part does not apply to this vehicle configuration. | 89747E | — |
| 85535-0K090-C0 | COVER, POWER OUTLET SOCKET, REAR | 1 | |
Note:GUN156..6F..M;GUN156,TGN168..L..BZAGT;GUN156..THSUV..(H,L)..(ARL,GCC);GGN155,GUN155,166..(AGTSU,MASUV,SASUV,THSUV)..(GCC,LA,MA,SA);GGN165,GUN165,KUN156,165,LAN155,TGN166..AGTSU,MASUV,PKNSU,SASUV,THSUV;GUN156,TGN156..(AGTSU,MASUV,PKNSU,SASUV,THSUV)..(L,M,S)..(HDCR,HTWC)..(BZAGT,GCC,GEN,KZS,LA,MA,PKN,SA) Production:2015-07 – 2021-04 Spec:BLACK,TRIM4# | |||
| — | Part does not apply to this vehicle configuration. | 84931C | — |
| 84872-0K030 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:GGN155,GUN15#,16#,KUN156,TGN156,166..RHD..(MASUV,PKNSU,SASUV,THSUV) Production:2015-07 – 2021-04 | |||
| — | Part does not apply to this vehicle configuration. | 89222A | — |
| 84231-0K060 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,MASUV,PKNSU,SASUV,THSUV Production:2015-07 – 2021-04 | |||
| — | Part does not apply to this vehicle configuration. | 88630Y | — |
| 90119-06915 | standard | — | |
| 90178-T0018 | standard | — | |
| 90119-T0130 | standard | — | |
Replacements:90119-06915 (fitment: unknown) | |||
| 90159-60602 | standard | — | |
| 90159-T0036 | standard | — | |
Replacements:90159-60602 (fitment: unknown) | |||
| 90189-06227 | standard | — | |
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) | |||
| 90166-70001 | standard | — | |
| 90166-60005 | standard | — | |

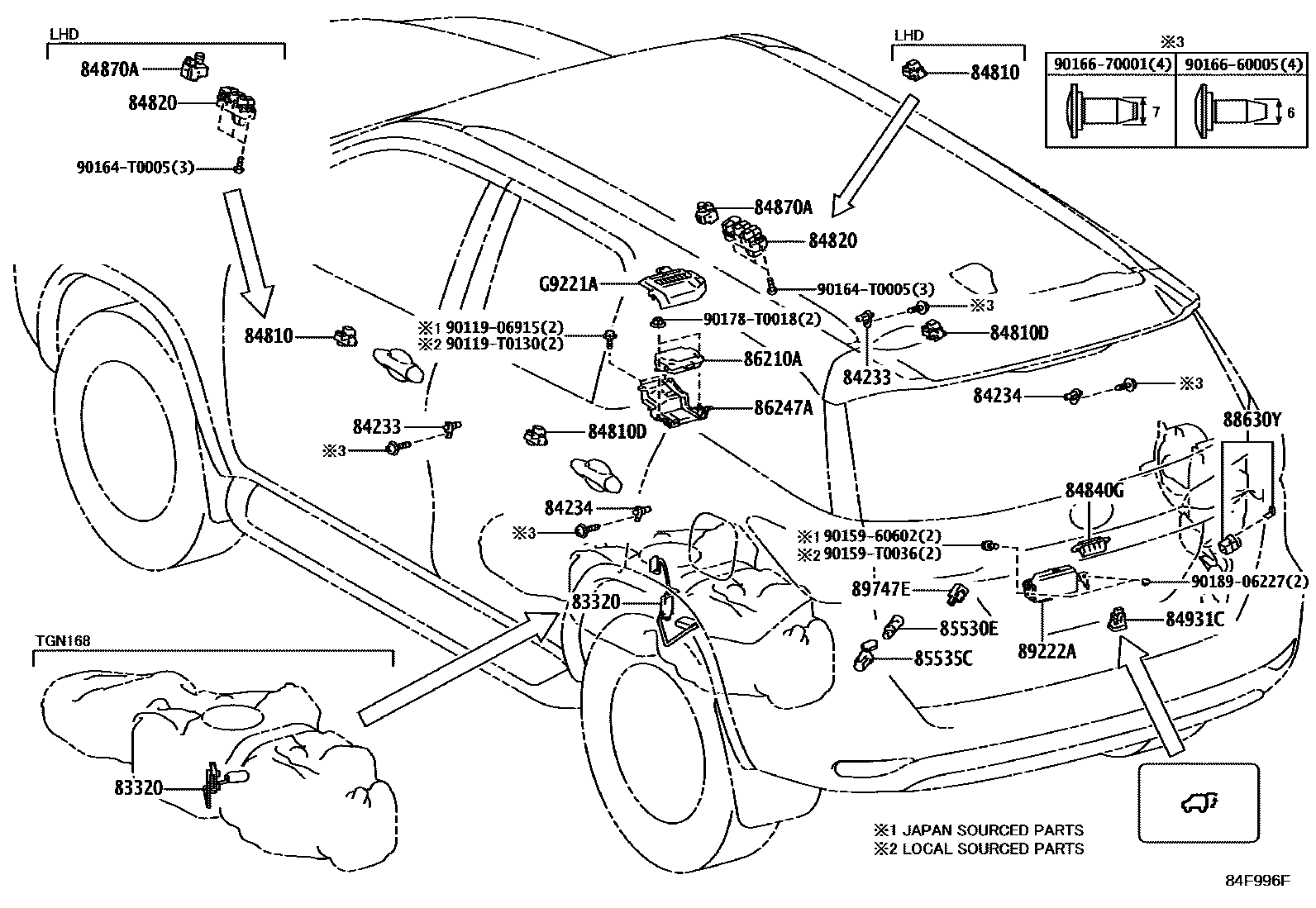

Diagram
19 parts
