Open RegionYearModelModelCode Details
Europe 1998 COROLLA SED WG EE111L-AEMDKW
Catalog: TOYOTA202608 Engine: 1300CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Body Description: SEDAN Vehicle Grade: TERRA TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 199 Trim Code: HG10 Production: 199704-199910 Model Short: EE111L-AEMDKW Region: EU Native Region: EU

Toyota COROLLA-SED-WG 1998 — Meter

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
83109-24020 BULB, COMBINATION METER, NO.1 4
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION Fitment:Matches · configuration
83119-32010 BULB, COMBINATION METER, NO.1 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:14V 3.0W,TYPE C:REFER TO ILLUSTRATION Fitment:Matches · configuration
90981-11018 BULB, COMBINATION METER, NO.1 12
Note:AE111..RHD;EE111..RHD..3FC;EE111..5F..(STD,TERRA) Production:1997-04 – 1999-10 Spec:12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION Fitment:Matches · configuration
83861-1A080 PLATE, METER CIRCUIT 1
Note:EE111..RHD..3FC;AE111..RHD..TERRA;CE110,EE111..5F..(STD,TERRA) Production:1997-04 – 1999-10 Fitment:Matches · configuration
83861-12851 PLATE, METER CIRCUIT 1
Note:EE111..RHD..3FC;EE11#..5F..TERRA;AE111..RHD..TERRA Production:1998-08 – 1999-10 Spec:W(TACHOMETER) Fitment:Matches · configuration
83841-12800 CASE, COMBINATION METER 1
Note:EE111..RHD..3FC;AE111..RHD..TERRA;CE110,EE11#..5F..TERRA Production:1997-04 – 1999-10 Spec:W(TACHOMETER) Fitment:Matches · configuration
83841-1A051 CASE, COMBINATION METER 1
Note:EE111..RHD..3FC;AE111..RHD..TERRA;EE111..5F..(STD,TERRA) Production:1998-08 – 1999-10 Fitment:Matches · configuration
83101-14030 SOCKET SUB-ASSY, COMBINATION METER BULB 4
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:TYPE B:REFER TO ILLUSTRATION Fitment:Matches · configuration
83101-14040 SOCKET SUB-ASSY, COMBINATION METER BULB 12
Note:AE111..RHD;EE111..RHD..3FC;EE111..5F..(STD,TERRA) Production:1997-04 – 1999-10 Spec:TYPE A OR TYPE D:REFER TO ILLUSTRATION Fitment:Matches · configuration
83101-32020 SOCKET SUB-ASSY, COMBINATION METER BULB 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Spec:TYPE C:REFER TO ILLUSTRATION Fitment:Matches · configuration
83811-12610 PLATE, COMBINATION METER, NO.1 1
Note:AE11#,CE110,EE11#..TERRA Production:1997-04 – 1999-10 Spec:W(TACHOMETER) Fitment:Matches · configuration
83811-12720 PLATE, COMBINATION METER, NO.1 1
Note:AE11#,CE110,EE111..STD,TERRA Production:1997-04 – 1999-10 Fitment:Matches · configuration
83852-12700 GLASS, COMBINATION METER 1
Note:AE11#,CE110,EE11# Production:1997-04 – 1999-10 Fitment:Matches · configuration
83883-12840 GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER 1
Note:AE11#,CE110,EE11#..TERRA Production:1997-04 – 1999-10 Fitment:Matches · configuration
83881-1A850 TACHOMETER ASSY, ENGINE 1
Note:EE111..TERRA Production:1997-04 – 1999-10 Fitment:Matches · configuration
83220-12090 SPEEDOMETER ASSY 1
Note:EE111..LHD..5F..TERRA Production:1997-04 – 1999-10 Spec:W(TACHOMETER) Fitment:Matches · configuration
83220-12150 SPEEDOMETER ASSY 1
Note:EE111..LHD..5F..(STD,TERRA) Production:1997-04 – 1999-10 Fitment:Matches · configuration
83882-12700 GAUGE SUB-ASSY, FUEL RECEIVER 1
Note:AE11#,CE110,EE111..STD,TERRA Production:1997-04 – 1999-10 Fitment:Matches · configuration
83882-12851 GAUGE SUB-ASSY, FUEL RECEIVER 1
Note:AE11#,EE11#..TERRA Production:1998-08 – 1999-10 Spec:W(TACHOMETER) Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 83181A —
— Part does not apply to this vehicle configuration. 83180 —
— Part does not apply to this vehicle configuration. 83181B —
90099-00225 standard —
Fitment:Matches · configuration
93567-55016 standard —
Replacements:93568-55016 (fitment: unknown) Fitment:Matches · configuration
90099-00248 standard —
Fitment:Matches · configuration
90099-00211 standard —
Fitment:Matches · configuration
83193-87501 standard —
Replacements:90099-00929 (fitment: unknown) Fitment:Matches · configuration
83193-87203 standard —
Fitment:Matches · configuration
90099-00917 standard —
Fitment:Matches · configuration
83194-87502 standard —
Fitment:Matches · configuration
90080-10231 standard —
Fitment:Matches · configuration
90080-10208 standard —
Fitment:Matches · configuration
96711-24018 standard —
Fitment:Matches · configuration
96711-24030 standard —
Fitment:Matches · configuration

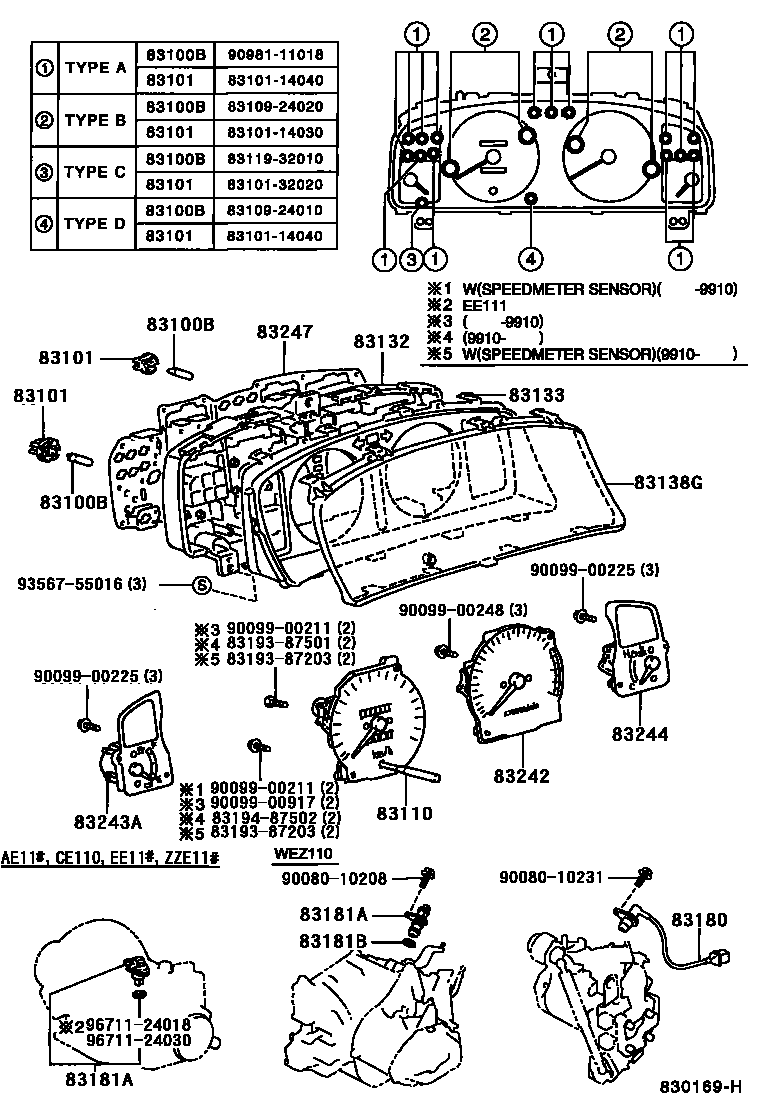

Diagram

31 parts
Toyota COROLLA-SED-WG 1998 — Meter
