Europe 1998 COASTER BB42L-BRMSSV
Catalog: TOYOTA202608 Engine: 3700CC DIESEL Transmission Description: 5-SPEED MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: STANDARD TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 2DS Trim Code: LE41 Production: 199301-201612 Model Short: BB42L-BRMSSV Region: EU Native Region: EU

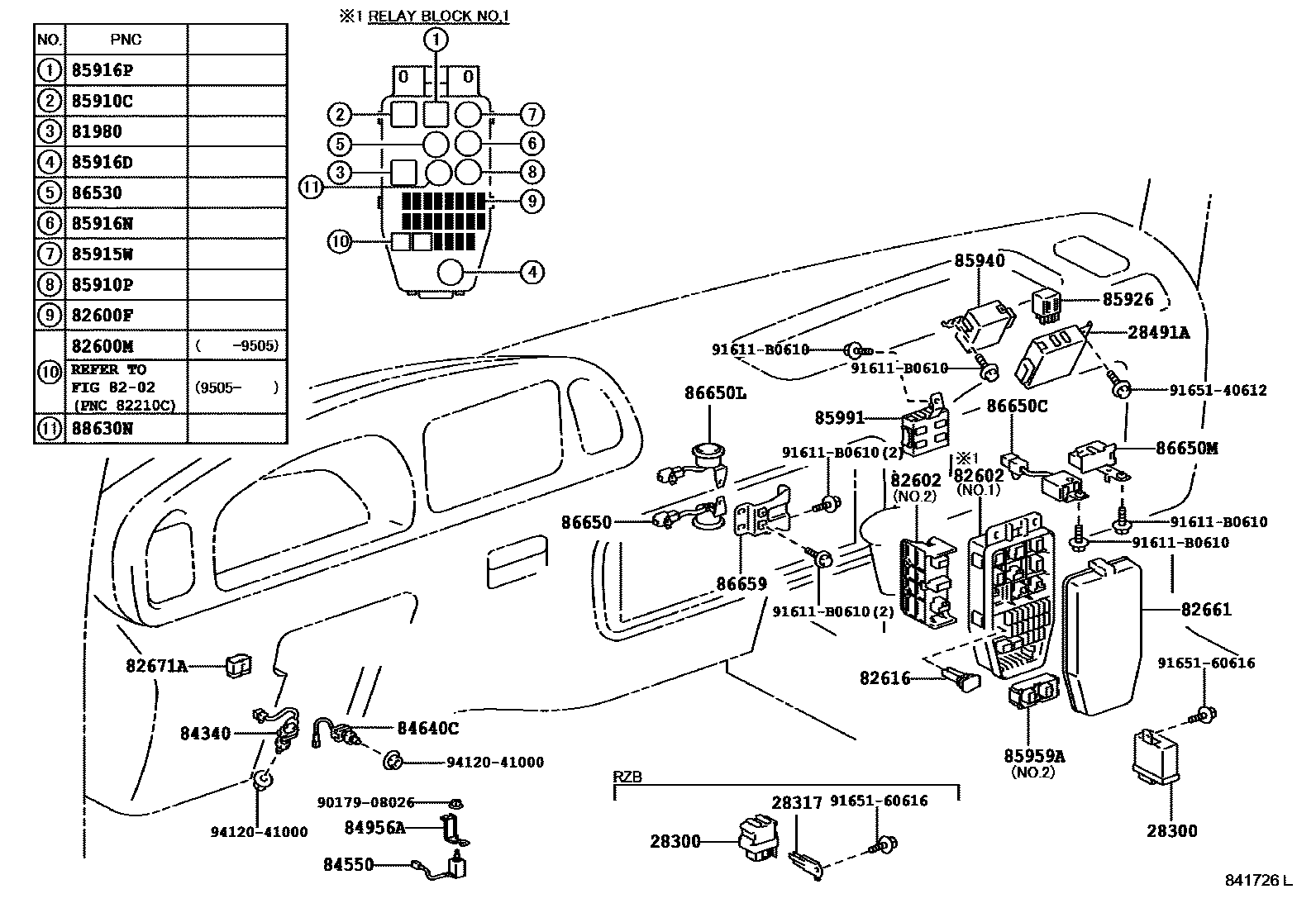

Toyota Coaster 1998 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90987-02007 RELAY, HEADLAMP 1
Note:BB4#,5#,HZB50 Production:1993-01 – 1999-07 Spec:24V Fitment:Matches · configuration
85913-90K00 RELAY ASSY (FOR HEATER BLOWER MOTOR) 1
Note:BB40,43,5#;HZB50..GCC;BB42..SRF..WC;BB42..WOC..GCC;BB42,HZB50..RHD;HZB50..LHD..HRF..WOC Production:1997-05 – 1999-07 Fitment:Matches · configuration
81980-60010 FLASHER ASSY, TURN SIGNAL 1
Note:HZB50;BB4#,5#..CBU Production:1993-01 – 1999-07 Spec:24V Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85916D —
90987-01004 RELAY ASSY, HORN 1
Note:BB4#,5#,HZB50 Production:1993-01 – 1999-07 Spec:24V Fitment:Matches · configuration
90987-02005 RELAY, TAILLAMP 1
Note:BB50..EUR;BB4#,5#,HZB50..CBU Production:1997-11 – 1999-07 Spec:24V Fitment:Matches · configuration
90987-02005 RELAY, AUTOMATIC DOOR 1
Note:BB4#,5#,HZB50..ARL,GCC,GEN,SCO Production:1997-11 – 1999-07 Spec:24V Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 85910P —
90982-09002 FUSE, FUSE BLOCK 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1993-01 – 1999-07 Spec:10A Fitment:Matches · configuration
90982-09003 FUSE, FUSE BLOCK 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1993-01 – 1999-07 Spec:15A Fitment:Matches · configuration
90982-09004 FUSE, FUSE BLOCK 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1993-01 – 1999-07 Spec:20A,YELLOW Fitment:Matches · configuration
90982-09005 FUSE, FUSE BLOCK 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1993-01 – 1999-07 Spec:7.5A Fitment:Matches · configuration
90987-03002 RELAY ASSY, COOLER 1
Note:BB4#,5#..WC;HZB50..GCC..4FC;HZB50..LHD..WC..5F;HZB50..RHD..HRF..WC..DSL Production:1993-01 – 1999-07 Fitment:Matches · configuration
90982-10001 FUSE, MEDIUM CURRENT 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1993-01 – 1999-07 Spec:30A,PINK Fitment:Matches · configuration
84956-36040 BRACKET, HAND BRAKE SIGNAL SWITCH 1
Note:BB4#,5#,HZB50,RZB40,50..CBU Production:1993-02 – 1998-06 Fitment:Matches · configuration
84550-36040 SWITCH ASSY, PARKING BRAKE 1
Note:BB4#,5#,HZB50..CBU Production:1993-02 – 1998-06 Fitment:Matches · configuration
82671-30340 BLOCK, JUNCTION 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1997-05 – 1999-07 Rev.ref.no From:0021 Fitment:Matches · configuration Serial Ranges:Other: From 6000002 · BB42 · · 00210040
85959-36040 HOLDER, RELAY 1
Note:RZB40..WC;BB42..17S,22S;BB42..LHD..26S..WC;HZB50,RZB50..ARL,GCC;HZB50..LHD..HRF..GEN;HZB50..LHD..SRF..WC..GEN;BB40,43,5#,RZB50..HRF..(ARL,EUR,GEN) Production:1997-05 – 1998-08 Spec:NO.2 Fitment:Matches · configuration
85959-36060 HOLDER, RELAY 1
Note:HZB50;BB4#,5#,RZB40,50..ARL,GCC,GEN,SCO Production:1994-12 – 1999-07 Spec:NO.1 Fitment:Matches · configuration
28300-56040 RELAY ASSY, STARTER 1
Note:15BFT..BB50..EUR;15BFT..BB50..WC..GEN;14B,15BFT,3B,1HZ..BB40,42,58,HZB50 Production:1995-05 – 1999-07 Spec:24V Fitment:Matches · configuration
82661-36032 COVER, RELAY BLOCK, NO.1 1
Note:BB4#,5#,HZB50,RZB40,50..ARL,GCC,GEN,SCO Production:1997-05 – 1999-07 Rev.ref.no From:0021 Rev.ref.no To:0040 Fitment:Matches · configuration Serial Ranges:Other: From 6000002 · BB42 · · 00210040
— Part does not apply to this vehicle configuration. 28491A —
— Part does not apply to this vehicle configuration. 85926 —
86650-36110 BUZZER ASSY, EMERGENCY 1
Note:BB50..GEN..IV;BB40,42,58,HZB50 Production:1993-01 – 1999-07 Spec:24V Fitment:Matches · configuration
85940-36040 RELAY ASSY, WINDSHIELD WIPER 1
Note:BB40,42,5#,HZB50..CBU Production:1993-01 – 1999-07 Spec:24V Fitment:Matches · configuration
85991-36020 RELAY, SEAT BELT WARNING 1
Note:BB42,HZB50..GCC Production:1993-01 – 1999-07 Spec:24V Fitment:Matches · configuration
82616-12010 PULLER, FUSE 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1993-01 – 1999-07 Fitment:Matches · configuration
82602-36010 BLOCK SUB-ASSY, RELAY 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1993-01 – 1999-07 Spec:NO.1 Fitment:Matches · configuration
86650-36030 BUZZER ASSY, SEDIMENTER WARNING 1
Note:BB42,HZB50,RZB40,50..GCC Production:1993-01 – 1999-07 Replacements:86650-36031 (fitment: unknown) Fitment:Matches · configuration
86650-36080 BUZZER ASSY, VACUUM INDICATOR 1
Note:BB4#,5#,HZB50 Production:1993-01 – 1999-07 Spec:24V Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 86650L —
84340-36070 SWITCH ASSY, STOP LAMP 1
Note:BB4#,5#,HZB50,RZB40,50 Production:1993-01 – 1998-08 Replacements:84340-36071 (fitment: unknown) Fitment:Matches · configuration
84640-36060 SWITCH ASSY, EXHAUST RETARDER 2
Note:BB4#,5#,HZB50..5F Production:1993-01 – 1999-07 Fitment:Matches · configuration
86659-36020 BRACKET, BUZZER 1
Note:BB4#,5#,HZB50 Production:1993-01 – 1999-07 Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 28317 —
91611-B0610 standard —
Fitment:Matches · configuration
94120-41000 standard —
Fitment:Matches · configuration
90179-08026 standard —
Fitment:Matches · configuration
91651-40612 standard —
Fitment:Matches · configuration
91651-60616 standard —
Fitment:Matches · configuration

Diagram

34 parts
Toyota Coaster 1998 — Switch & Relay & Computer
