Toyota COROLLA-SED-JPP 2006 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90987-02020 | RELAY, COOLING FAN | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-04004 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:ZZE130..JPP Production:2004-05 – … | |||
| 90987-02020 | RELAY ASSY, HORN | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90080-82021 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Replacements:90982-09009 (fitment: unknown) Spec:10A,MINI FUSE,RED | |||
| 90080-82022 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Replacements:90982-09010 (fitment: unknown) Spec:15A,MINI FUSE,BLUE | |||
| 90080-82023 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Replacements:90982-09011 (fitment: unknown) Spec:20A,MINI FUSE,YELLOW | |||
| 90080-82024 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Replacements:90982-09013 (fitment: unknown) Spec:30A,MINI FUSE,GREEN | |||
| 90080-82031 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Replacements:90982-09007 (fitment: unknown) Spec:5A,MINI FUSE,TAN | |||
| 90080-82033 | FUSE, FUSE BLOCK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Replacements:90982-09012 (fitment: unknown) Spec:25A,MINI FUSE | |||
| 90982-08246 | FUSIBLE LINK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Spec:100A,TERM.:MALE,BLUE | |||
| 90982-08283 | FUSIBLE LINK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Spec:30A,TERM.:FEMALE,PNK | |||
| 90982-08284 | FUSIBLE LINK | 1 | |
Note:ZZE130..JPP Production:2004-05 – … Spec:40A,TERM.:FEMALE,GRN | |||
| 90987-02025 | RELAY, HEADLAMP DIMMER | 1 | |
Note:ZZE130..JPP Production:2004-05 – … | |||
| 90987-02028 | RELAY, MAGNET-CLUTCH | 1 | |
Note:ZZE130..JPP Production:2004-05 – … | |||
| — | Part does not apply to this vehicle configuration. | 85916D | — |
| 90987-02025 | RELAY, HEADLAMP | 1 | |
Note:ZZE130..JPP Production:2004-05 – … | |||
| 82741-02040 | BLOCK ASSY, ENGINE ROOM RELAY | 1 | |
Note:ZZE130..JPP Production:2004-05 – … | |||
| 82663-02020 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:ZZE130..JPP Production:2004-05 – … | |||
| 82616-20010 | PULLER, FUSE | 1 | |
Note:ZZE130..JPP Production:2004-05 – … | |||
| 82662-02110 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:ZZE130..JPP Production:2004-05 – … | |||
| 91651-B0618 | standard | — | |
| 90179-06292 | standard | — | |

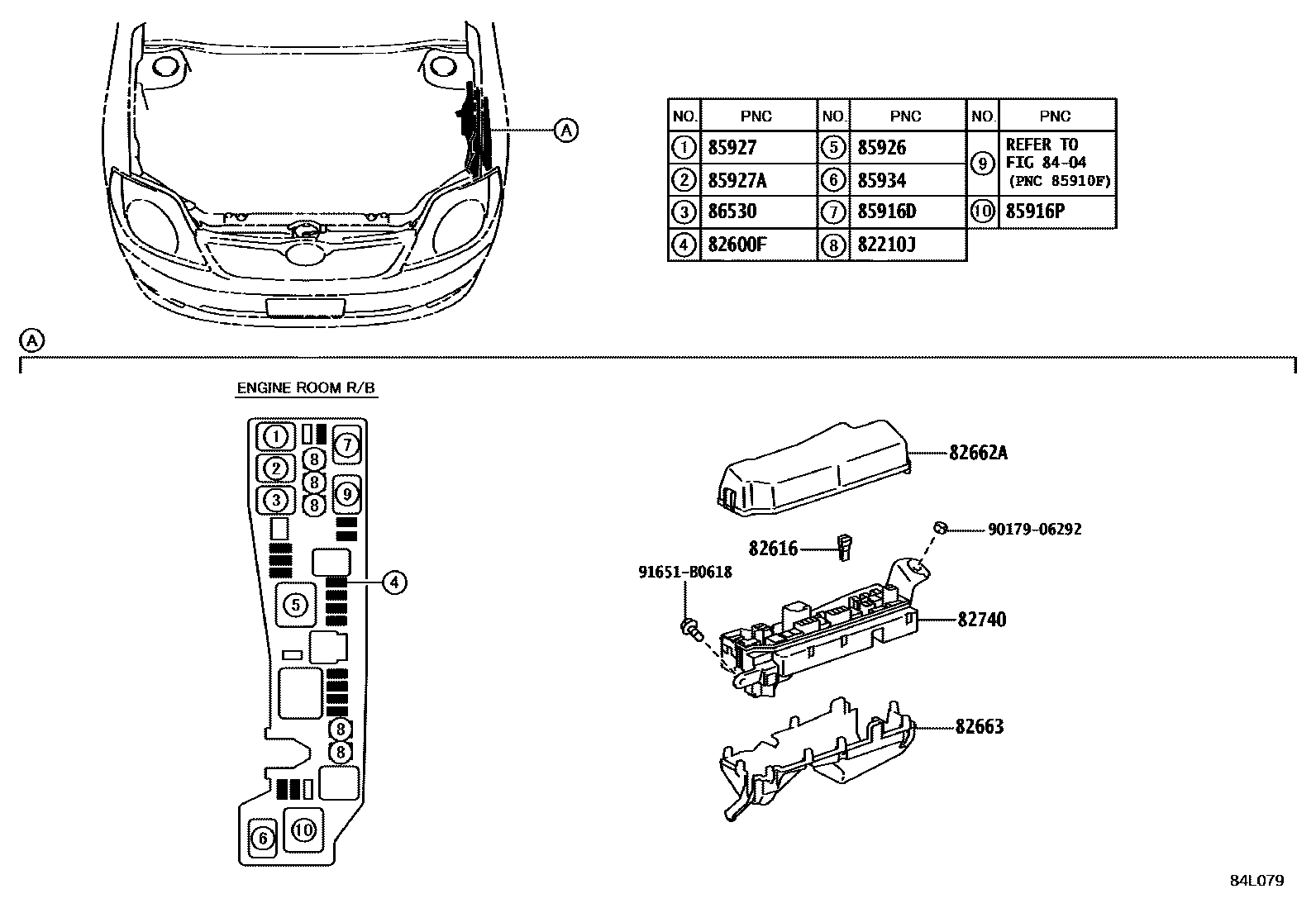

Diagram
21 parts
