General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

Toyota COROLLA-SED-WG 2007 — Floor Pan & Lower Back Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
57051-12070 MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2007-11 Replacements:57051-12071 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
57052-12020 MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2007-11 Replacements:57052-12021 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
57053-12020 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
57054-12020 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
57417-12120 REINFORCEMENT, FRONT FLOOR UNDER 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
57407-12150 MEMBER, REAR FLOOR CROSS, FRONT 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2007-09 Replacements:57407-12151 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58015-12110 REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58016-12080 REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58111-12916 PAN, FRONT FLOOR 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2007-10 Replacements:58111-12918 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58013-12140 SUPPORT, SHIFT & SELECT LEVER 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58136-33010 COVER, FRONT FLOOR HOLE 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
57805-12160 REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2007-11 Replacements:57805-12161 (fitment: unknown) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58176-12030 REINFORCEMENT, PARKING BRAKE BASE, NO.1 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58211-12940 PAN, CENTER FLOOR 1
Note:CE140,NZE141..LX,XLI;ZZE142..LHD..XLI..GEN Production:2007-08 – 2010-07 Spec:SEAT COVER MATERIAL-FABRIC Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58311-12270 PAN, REAR FLOOR 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58313-12330 PANEL, REAR FLOOR SIDE, RH 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
62939-12030 SILENCER, QUARTER VENT 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58314-12330 PANEL, REAR FLOOR SIDE, LH 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58325-12150 COVER, REAR FLOOR SERVICE HOLE 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58341-12020 BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58342-12020 BRACKET, REAR ABSORBER MOUNTING, NO.1 LH 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58307-12B20 PANEL SUB-ASSY, BODY LOWER BACK 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58384-12210 GUSSET, LOWER BACK, UPPER RH 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58385-12190 GUSSET, LOWER BACK, UPPER LH 1
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58386-12020 BRACKET, REAR BUMPER COVER, NO.2 2
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58791-12200 CARRIER, JACK 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
58351-33010 BRACKET, SPARE WHEEL CARRIER 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
52581-13030 PROTECTOR, REAR BUMPER 3
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-07
90115-06166 standard —
90297-03007 standard —
90115-06219 standard —
90119-08A12 standard —

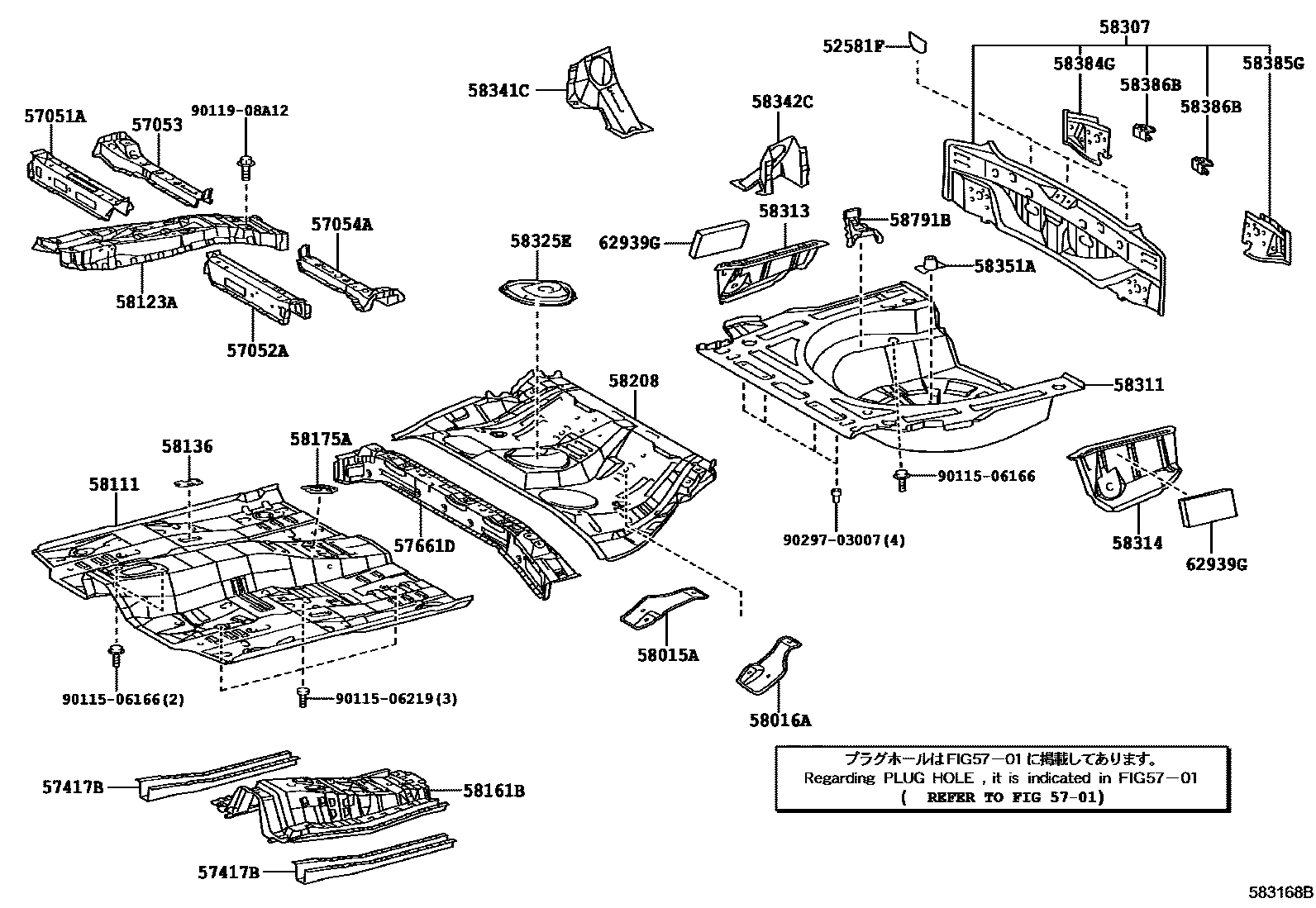

Diagram

32 parts
Toyota COROLLA-SED-WG 2007 — Floor Pan & Lower Back Panel
