Open RegionYearModelModelCode Details
General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

Toyota COROLLA-SED-WG 2007 — Rear Combination Lamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 81550H —
90981-11059 BULB, BACK UP LAMP 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
99132-11210 BULB, REAR TURN SIGNAL LAMP 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
— Part does not apply to this vehicle configuration. 81586 —
81551-12A10 LENS & BODY, REAR COMBINATION LAMP, RH 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07
81561-12A10 LENS & BODY, REAR COMBINATION LAMP, LH 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07
— Part does not apply to this vehicle configuration. 81552C —
81496-52020 GUIDE, REAR COMBINATION LAMP 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90179-05102 standard —

Diagram

6 parts

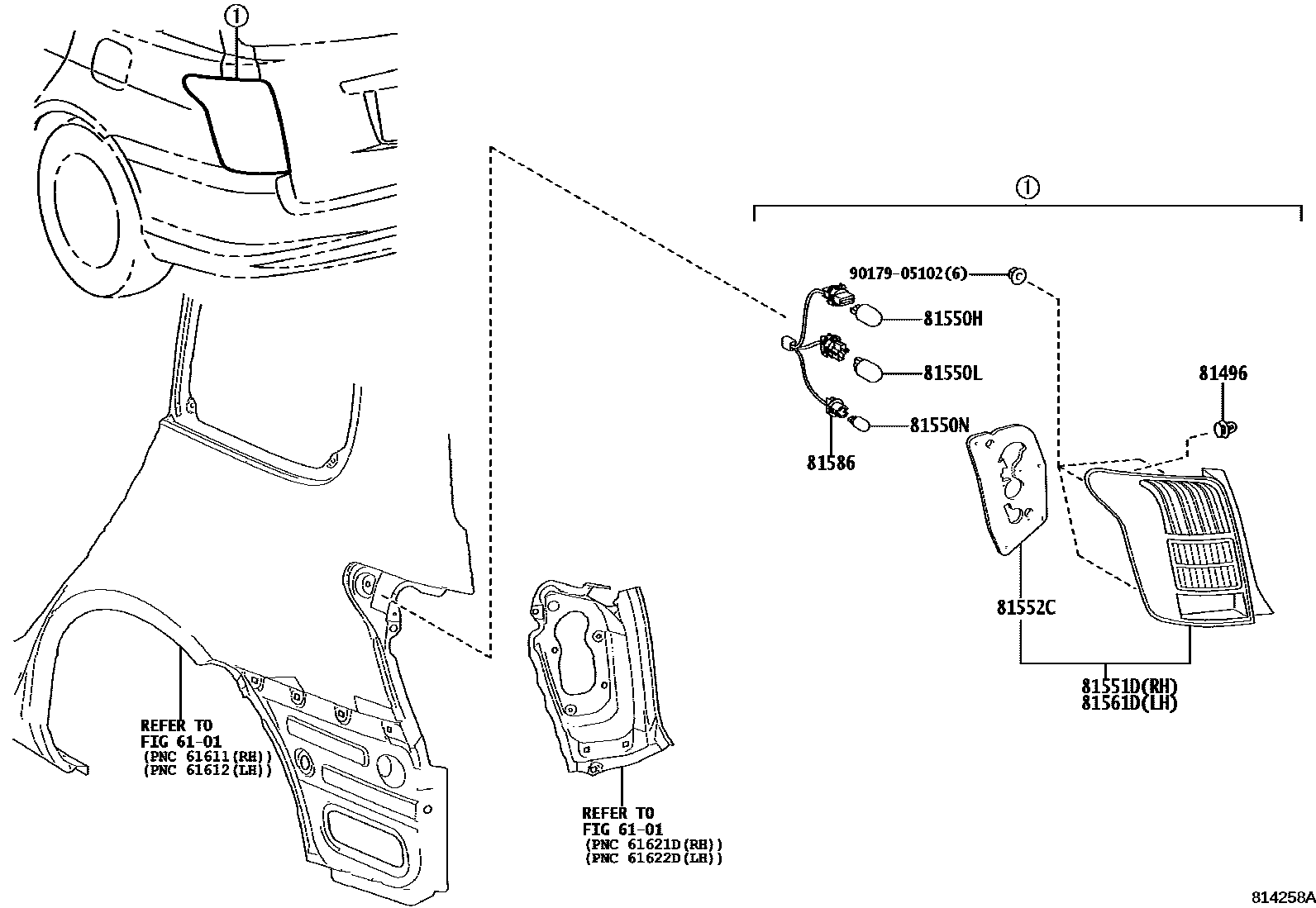

Toyota COROLLA-SED-WG 2007 — Rear Combination Lamp
