Open RegionYearModelModelCode Details
General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

Toyota COROLLA-SED-WG 2007 — Windshield Washer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85381-12300 NOZZLE SUB-ASSY, WASHER 2
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2009-09 Spec:ANGLE 0 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85381-12310 NOZZLE SUB-ASSY, WASHER 2
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2009-09 Spec:ANGLE -2 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85381-12320 NOZZLE SUB-ASSY, WASHER 2
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2009-09 Spec:ANGLE +2 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85315-12600 JAR ASSY, WINDSHIELD WASHER 1
Note:ZZE14#;CE140,NZE141..LX,XLI Production:2007-08 – 2010-04 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85375-10260 JOINT, WINDSHIELD WASHER HOSE, NO.1 1
Note:ZZE142..LHD..GEN;CE140,NZE141..LX,XLI Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85321-28020 VALVE, WINDSHIELD WASHER HOSE 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90099-33080 HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) 1
Note:ZZE142..LHD..GEN;CE140,NZE141..LX,XLI Production:2007-08 – 2010-07 Spec:L=1450(*H,L=80) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85349-89122 JOINT, WINDSHIELD WASHER HOSE, NO.2 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90099-59347 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 1
Note:ZZE142..LHD..GEN;CE140,NZE141..LX,XLI Production:2007-08 – 2010-07 Spec:L=510 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 1
Note:ZZE142..LHD..GEN;CE140,NZE141..LX,XLI Production:2007-08 – 2010-07 Spec:L=1450(*H,L=80) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
— Part does not apply to this vehicle configuration. 85389B —
90099-33080 HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 2
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Spec:L=1450(*H,L=190) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82711-3A540 CLAMP, WASHER, NO.2 3
Note:CE140,NZE141,ZZE14#..SED Production:2007-08 – 2010-03 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85387-12840 CLAMP NO.1 (FOR WINDSEIELD WASHER) 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85330-21010 MOTOR AND PUMP ASSY, WINDSHIELD WASHER 1
Note:ZZE142..LHD..GEN;CE140,NZE141..LX,XLI Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85336-60300 BUSH, WINDSHIELD WASHER JAR 1
Note:ZZE14#;CE140,NZE141..LX,XLI Production:2007-08 – … Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85386-60050 CAP, WINDSHIELD WASHER JAR 1
Note:ZZE14#;CE140,NZE141..LX,XLI Production:2007-08 – … Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85312-48010 FILTER, WINDSHIELD WASHER JAR 1
Note:ZZE14#;CE140,NZE141..LX,XLI Production:2007-08 – 2010-04 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
85387-13320 standard —
90119-06767 standard —

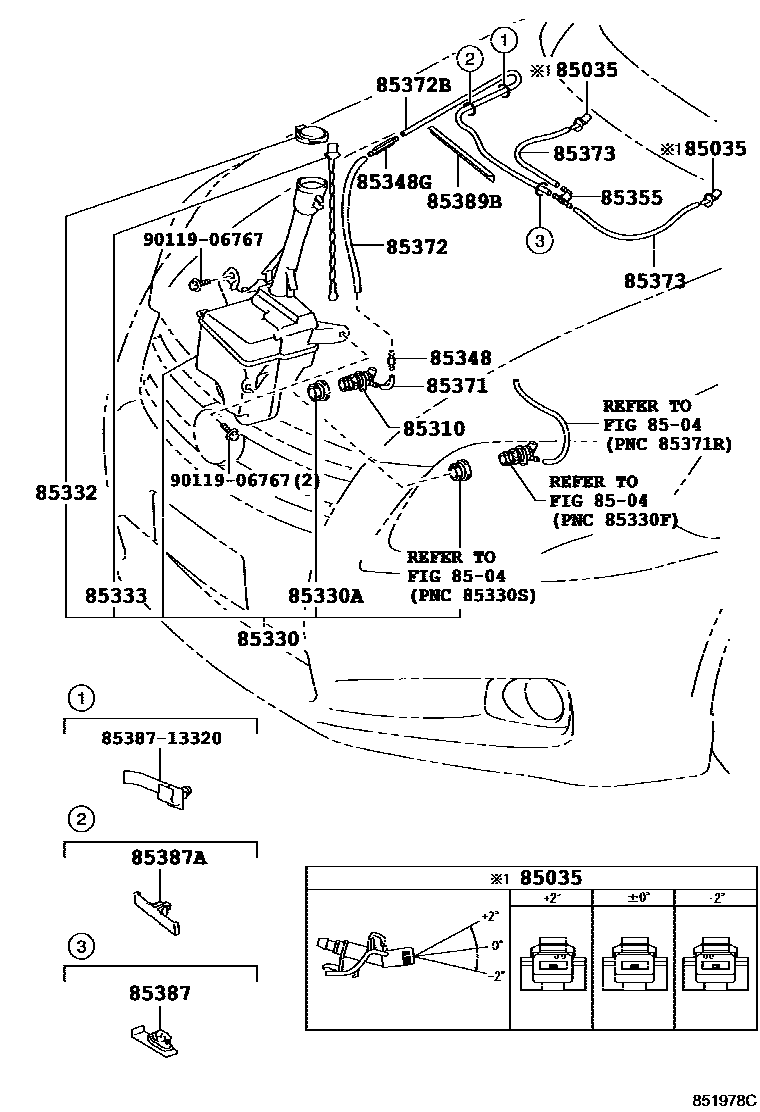

Diagram

19 parts
Toyota COROLLA-SED-WG 2007 — Windshield Washer
