Open RegionYearModelModelCode Details
General 2007 COROLLA SED WG NZE141R-AEPDK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Body Description: SEDAN Vehicle Grade: LX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 1G3 Trim Code: FC16 Production: 200708-201007 Model Short: NZE141R-AEPDK Region: OTHER Native Region: GR

Toyota COROLLA-SED-WG 2007 — Wiring & Clamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 82817U —
82161-12K90 WIRE, FLOOR 1
Note:CE140,NZE141..RHD..(LX,XLI) Production:2007-08 – 2010-07 Spec:SRS AIR BAG-WITH(DRIVER & PASSENGER) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82666-20280 HOLDER, CONNECTOR NO.6 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82666-12480 HOLDER, CONNECTOR NO.5 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07
82187-12210 WIRE, REAR WINDOW, NO.2 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82162-12E30 WIRE, FLOOR, NO.2 1
Note:ZZE142..RHD;CE140,NZE141..RHD..(LX,XLI) Production:2007-08 – 2010-07 Spec:SRS AIR BAG-WITH(DRIVER & PASSENGER) Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82666-12470 HOLDER, CONNECTOR NO.7 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07
82666-20280 HOLDER, CONNECTOR NO.8 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82171-12J10 WIRE, ROOF, NO.1 1
Note:CE140,NZE141,ZZE14#..RHD..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
82345-12050 DIODE 1
Note:ZZE142..LHD..GEN;CE140,NZE141..SED Production:2007-08 – 2010-07 Rev.ref.no From:0003 Serial Ranges:Other: From 9042695 · NZE141 · · 00030010
90119-06915 standard —

Diagram

10 parts

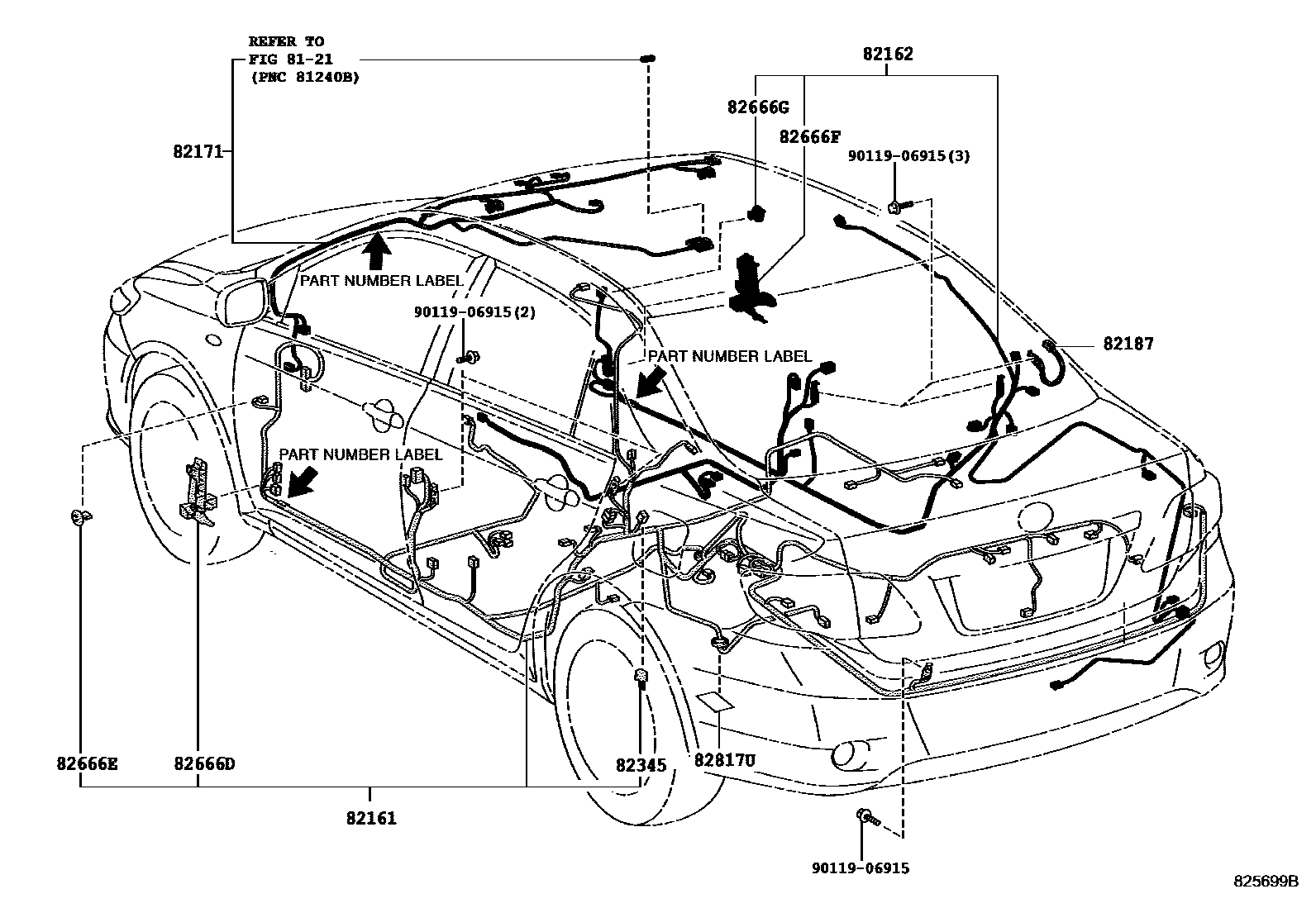

Toyota COROLLA-SED-WG 2007 — Wiring & Clamp
