Toyota Yaris 2011 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83530-28020 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| 84540-46010 | SWITCH ASSY, NEUTRAL START | 1 | |
Note:NCP93..ATM Production:2008-08 – 2016-07 | |||
| 89465-52430 | SENSOR, OXYGEN NO.2 | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| 89467-52020 | SENSOR, OXYGEN | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| 83181-12040 | SENSOR, SPEEDOMETER | 1 | |
Note:NCP93..ATM Production:2008-08 – 2016-07 | |||
| 96711-24018 | RING, O (FOR SPEEDOMETER SENSOR) | 1 | |
Note:NCP93..ATM Production:2008-08 – … | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:NCP93 Production:2008-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 84210 | — |
| 91651-40620 | standard | — | |
| 90179-08153 | standard | — | |
| 90430-18008 | standard | — | |
| 91611-60822 | standard | — | |
| 82715-52A40 | standard | — | |
| 90126-08039 | standard | — | |
| 82715-5C120 | standard | — | |
| 91553-81014 | standard | — | |

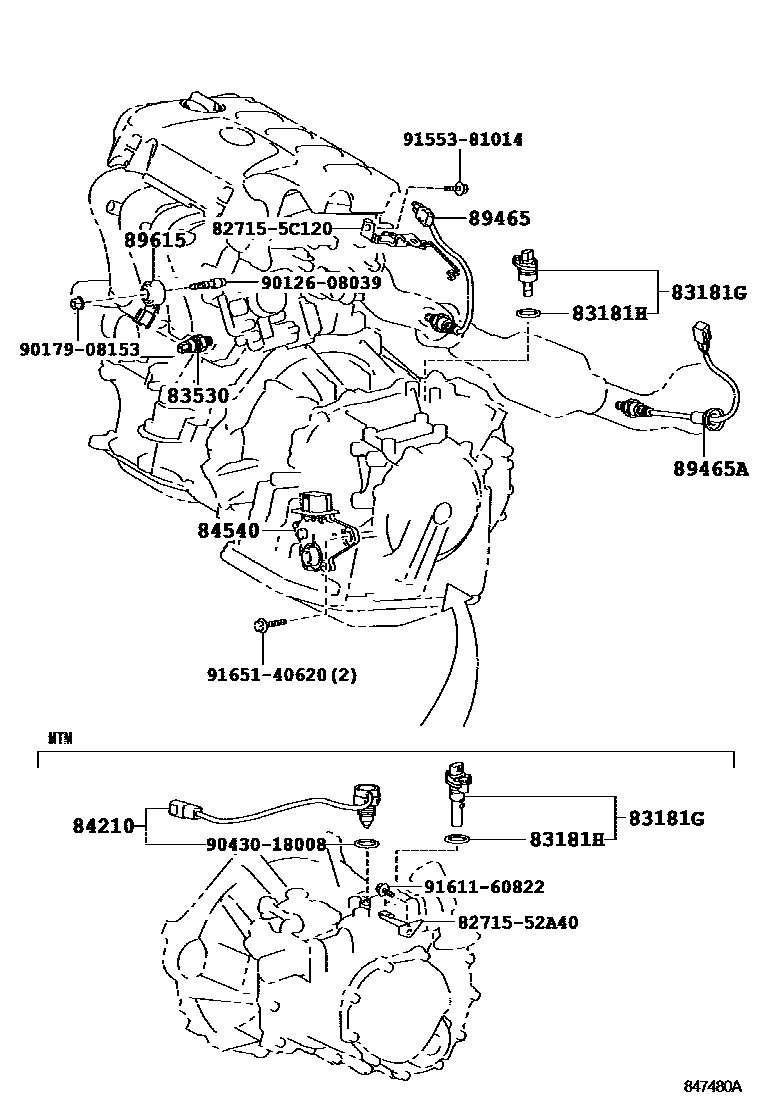

Diagram
15 parts
