Toyota Prius 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90987-02027 | RELAY, COOLING FAN, NO.3 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 90987-04004 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| — | Part does not apply to this vehicle configuration. | 87346K | — |
| 90987-02027 | RELAY, COOLING FAN | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82641-47050 | RELAY, INTEGRATION NO.1 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 90982-09019 | ENGINE ROOM FUSE | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:5A,MINI FUSE,TAN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:25A,MINI FUSE | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:30A,MINI FUSE,GRN | |||
| 90982-08295 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:30A,FEMALE,PNK,58V | |||
| 90982-08296 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:50A,FEMALE,RED,58V | |||
| 90982-08300 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:50A-30A-30A,FEMALE | |||
| 90982-08302 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:50A-30A-50A,FEMALE | |||
| 90982-08308 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 Spec:40A-30A-30A,FEMALE | |||
| 90987-02025 | RELAY, IGCT | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 90987-02027 | RELAY, WATER PUMP | 1 | |
Note:2ZRFXE..ZVW50 Production:2015-11 – 2018-12 | |||
| 90987-04010 | RELAY, DEFOGGER | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 90987-02027 | RELAY ASSY, HORN | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| — | Part does not apply to this vehicle configuration. | 87346L | — |
| 82660-47070 | BLOCK ASSY, RELAY | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82660-47080 | BLOCK ASSY, RELAY | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82660-47090 | BLOCK ASSY, RELAY | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82660-47100 | BLOCK ASSY, RELAY | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82661-47020 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82661-47030 | COVER, RELAY BLOCK, NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82662-47190 | COVER, RELAY BLOCK, UPPER, NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82663-47070 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82663-47090 | COVER, RELAY BLOCK, LOWER, NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82666-47610 | HOLDER, CONNECTOR | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82666-47620 | HOLDER, CONNECTOR, NO.2 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82662-47200 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:ZVW50 Production:2015-11 – 2018-12 | |||
| 90119-06A18 | standard | — | |
| 90178-06026 | standard | — | |

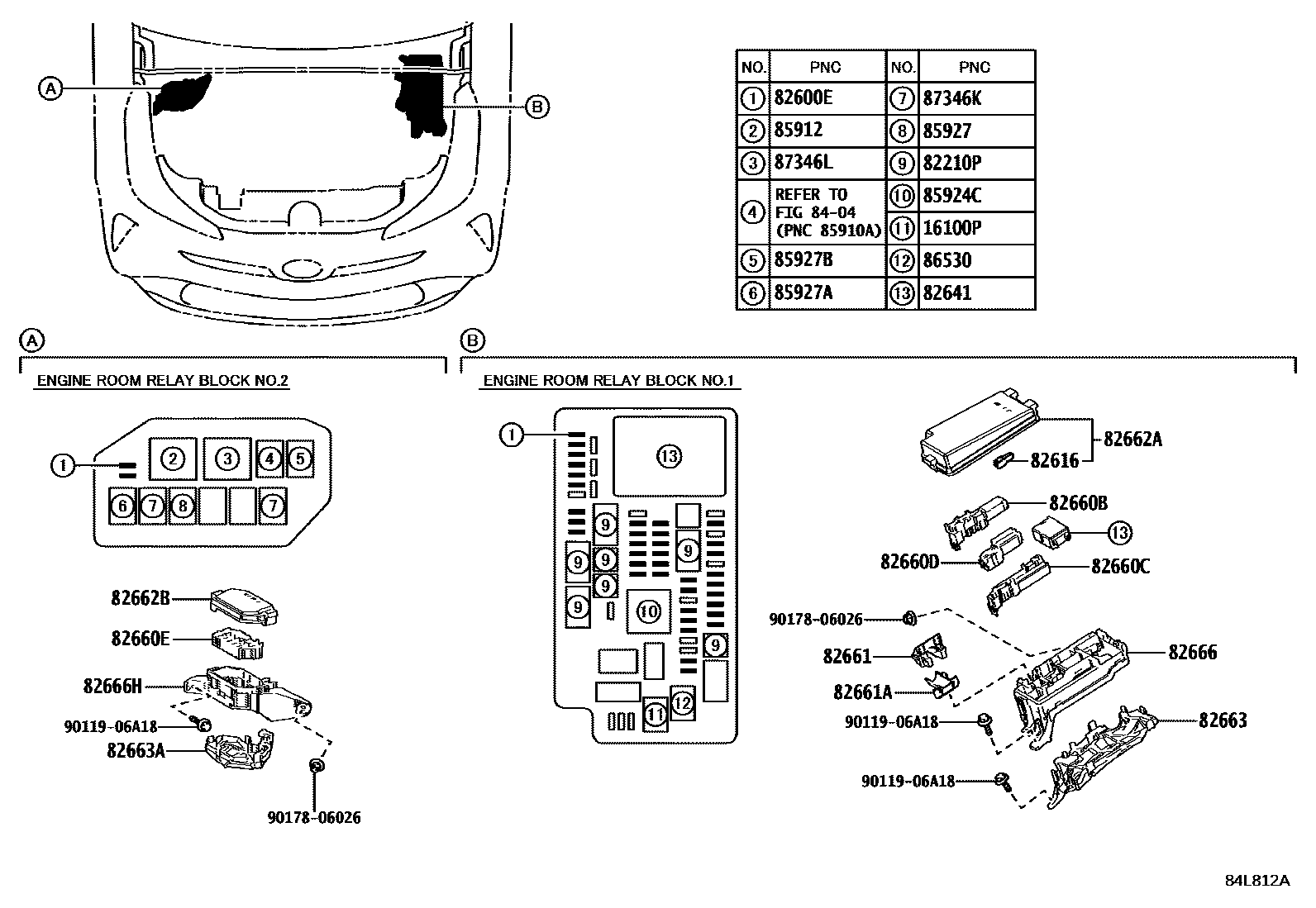

Diagram
34 parts
