Toyota LAND-CRUISER-100 2005 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84450-12200 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 | |||
| 84244-60061-B0 | SWITCH, STEERING PAD, RH | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 Replacements:84244-60061-C0 (fitment: unknown) Spec:DK.GRAY,TRIM1# | |||
| 84247-58020-B0 | SWITCH, STEERING PAD, LH | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 Spec:DK.GRAY,TRIM1# | |||
| 84052-33040 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 | |||
| 84310-60C30 | SWITCH ASSY, TURN SIGNAL | 1 | |
Note:UZJ100 Production:2005-05 – … | |||
| 84204-58010 | CABLE SUB-ASSY, STEERING PAD SWITCH | 1 | |
Note:UZJ100 Production:2005-05 – … | |||
| 84652-35522 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 | |||
| 89245-33010 | SENSOR, STEERING | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 | |||
| 89246-22020 | DISC, SENSOR STEERING | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 | |||
| 84306-60080 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 | |||
| 89235-60010 | SWITCH, TILT STEERING | 1 | |
Note:UZJ100 Production:2005-05 – … | |||
| 84140-33020 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:UZJ100 Production:2005-05 – … | |||
| 84258-58010-B0 | COVER, STEERING PAD, RH | 1 | |
Note:UZJ100 Production:2005-05 – 2007-08 Replacements:84258-58010-C0 (fitment: unknown) Spec:DK.GRAY,TRIM1# | |||
| 90168-40129 | standard | — | |
| 90464-00551 | standard | — | |
| 93319-15012 | standard | — | |
| 90159-50199 | standard | — | |

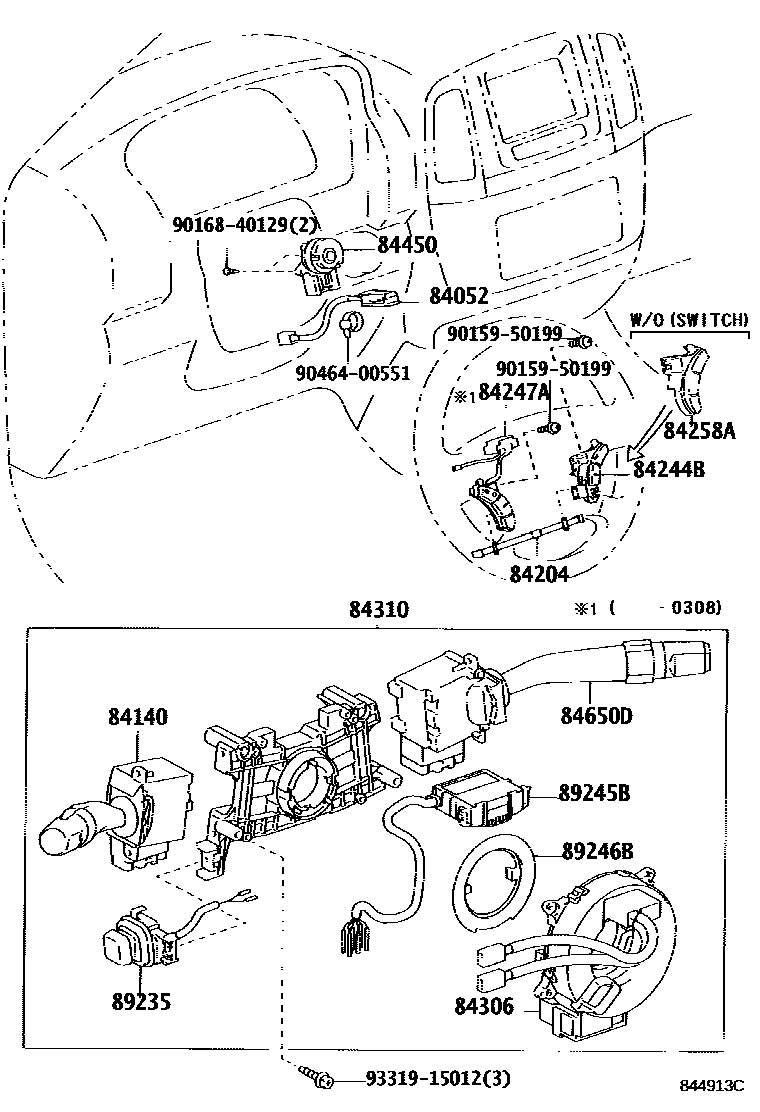

Diagram
17 parts
