Open RegionYearModelModelCode Details
General 2016 RAV4 ALA49L-ANTXY
Catalog: TOYOTA202608 Engine: 2200CC DIESEL TURBO Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: FB20 Production: 201510-201810 Model Short: ALA49L-ANTXY Region: OTHER Native Region: GR

Toyota RAV4 2016 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 85942 —
28850-28040 SENSOR ASSY, BATTERY CURRENT 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
— Part does not apply to this vehicle configuration. 89257 —
— Part does not apply to this vehicle configuration. 89480A —
28610-67010 RELAY ASSY, INTAKE HEATER OR GLOW PLUG 1
Note:2AD#..ALA49 Production:2015-10 – 2018-10
91671-A0616 standard —
93315-14014 standard —
90179-06274 standard —

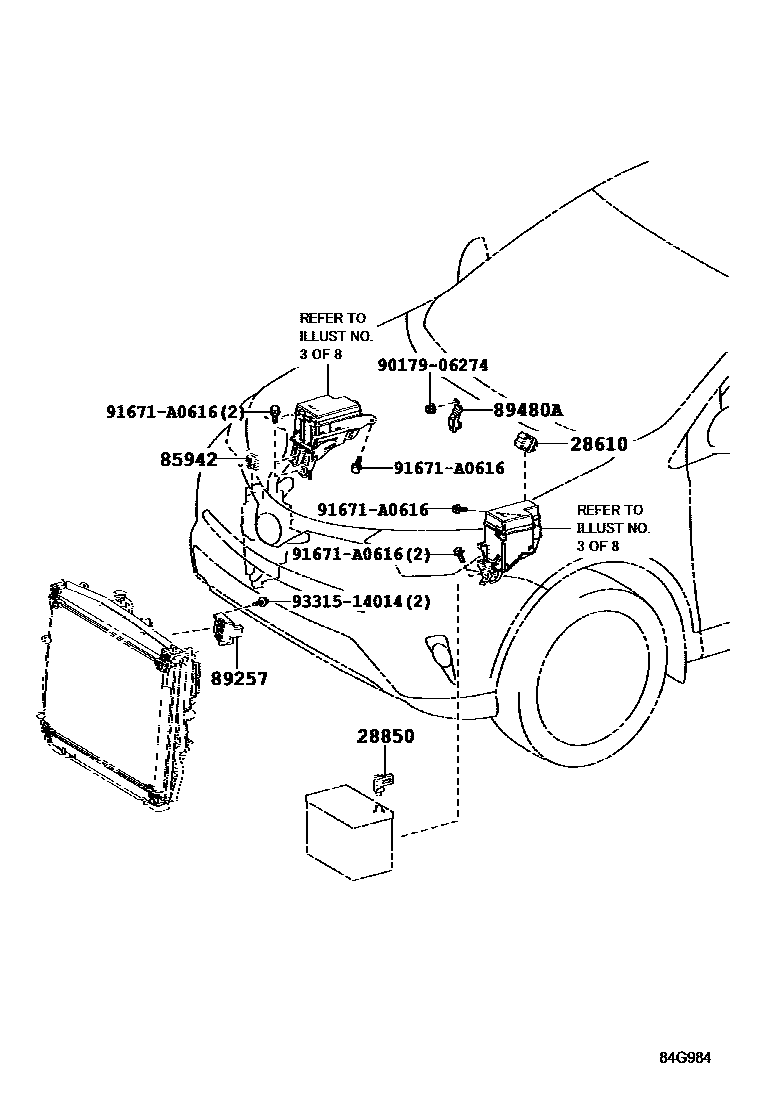

Diagram

5 parts
Toyota RAV4 2016 — Switch & Relay & Computer
