Toyota RAV4 2016 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 77169-14020 | GASKET, FUEL SENDER GAGE | 1 | |
Note:ALA49,AVA4# Production:2015-10 – 2018-10 | |||
| 84231-60070 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10 | |||
| 84231-60070 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10 | |||
| — | Part does not apply to this vehicle configuration. | 89747F | — |
| 84810-52030 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10 | |||
| 84810-52030 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:ALA49..6F..X;ALA49,AVA4#..6FC,A Production:2015-10 – 2018-10 | |||
| 8598A-42010 | BATTERY, DOOR CONTROL | 1 | |
Note:ALA49..6FC;ALA49..6F..X Production:2015-10 – 2018-10 | |||
| 84820-42200 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:ALA49..X..GEN Production:2015-10 – 2018-10 | |||
| 84840-78010 | SWITCH ASSY, BACK DOOR OPENER | 1 | |
Note:ALA49..X;ALA49..6FC..M..DCR Production:2015-10 – 2018-10 | |||
| — | Part does not apply to this vehicle configuration. | 84930 | — |
| — | Part does not apply to this vehicle configuration. | 88162 | — |
| — | Part does not apply to this vehicle configuration. | 88163 | — |
| — | Part does not apply to this vehicle configuration. | 88172 | — |
| — | Part does not apply to this vehicle configuration. | 88790F | — |
| — | Part does not apply to this vehicle configuration. | 88173 | — |
| — | Part does not apply to this vehicle configuration. | 89222A | — |
| — | Part does not apply to this vehicle configuration. | 84927 | — |
| — | Part does not apply to this vehicle configuration. | 89747E | — |
| — | Part does not apply to this vehicle configuration. | 891B2 | — |
| — | Part does not apply to this vehicle configuration. | 82620B | — |
| — | Part does not apply to this vehicle configuration. | 82600L | — |
| 83320-49215 | GAGE ASSY, FUEL SENDER | 1 | |
Note:ALA49 Production:2015-10 – 2018-10 | |||
| 90164-40103 | standard | — | |
| 90166-70001 | standard | — | |
| 94151-80600 | standard | — | |
| 90179-06178 | standard | — | |
| 91553-80612 | standard | — | |
| 90119-06915 | standard | — | |
| 93319-A4010 | standard | — | |

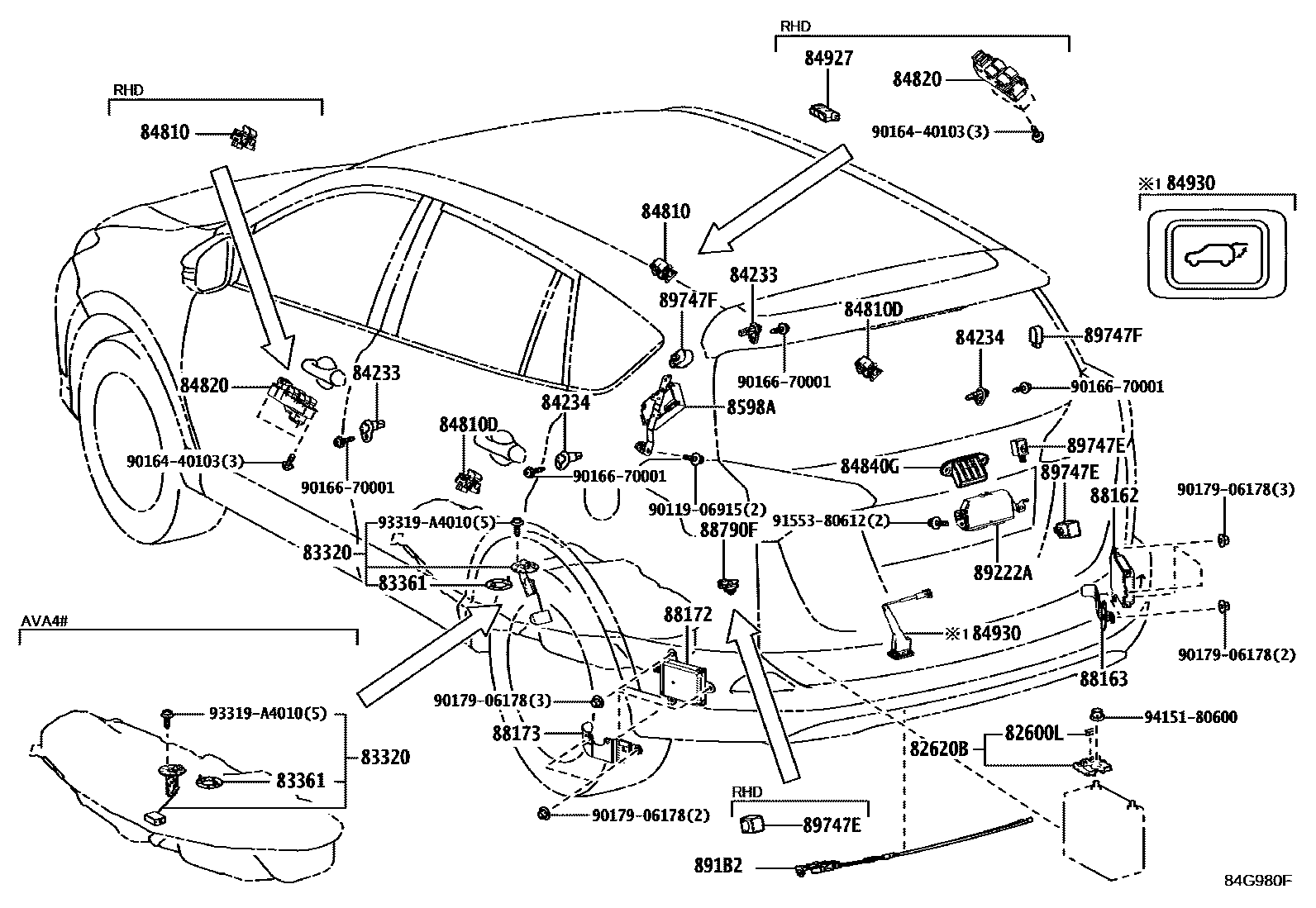

Diagram
16 parts
