Open RegionYearModelModelCode Details
Europe 2010 LAND CRUISER VDJ200R-GNTEZW
Catalog: TOYOTA202608 Engine: 4500CC DIESEL TURBO Vehicle Grade: VX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Color Code: 040 Trim Code: LG42 Production: 200709-201201 Model Short: VDJ200R-GNTEZW Region: EU Native Region: EU

Toyota Land-Cruiser 2010 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84231-53010 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01
89430-60061 COMPUTER ASSY, OUTER MIRROR CONTROL 1
Note:UZJ200,VDJ200..RHD Production:2008-06 – 2012-01
84231-53010 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01
84810-33120 SWITCH ASSY, POWER WINDOW REGULATOR, REAR 2
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01
84040-33080 MASTER SWITCH ASSY,MULTIPLEX NETWORK 1
Note:UZJ200,VDJ200..RHD Production:2007-09 – 2012-01 Replacements:84040-12180 (fitment: unknown)
84012-60450-E0 CONTROL & PANEL SUB-ASSY, INTEGRATION 1
Note:VDJ200..RHD Production:2009-07 – 2012-01 Spec:ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC & *GBS)&MOON ROOF-WITH(*SERT & REMOTE CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV+DVD CHANGER+AM/FM JBL 14SPEAKER,SANDBEIGE,TRIM4#
84810-33120 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:UZJ200,VDJ200 Production:2007-09 – 2012-01
84927-60050 SWITCH, SEAT MEMORY 1
Note:UZJ200,VDJ200..RHD Production:2010-08 – 2012-01 Rev.ref.no From:0045 Serial Ranges:Other: From 4047633 · VDJ200 · · 00450030 Serial Ranges:Other: From 5015687 · VDJ200 · · 00450040
85530-42010 SOCKET ASSY, POWER OUTLET, REAR NO.1 1
Note:UZJ200,VDJ200 Production:2009-07 – 2012-01
85530-60200-E0 SOCKET ASSY, POWER OUTLET, NO.1 1
Note:UZJ200,VDJ200 Production:2009-07 – 2012-01 Spec:DK. BROWN,TRIM4#
85536-60080-E0 BEZEL, POWER OUTLET SOCKET 1
Note:UZJ200,VDJ200 Production:2009-07 – 2012-01 Spec:DK. BROWN,TRIM4#
85535-35080-E2 COVER, POWER OUTLET SOCKET, REAR 1
Note:UZJ200,VDJ200 Production:2009-07 – 2012-01 Replacements:85535-35080-C0 (fitment: unknown) Spec:DK. BROWN,TRIM4#
85539-60020 LABEL, POWER OUTLET NOTICE, REAR 1
Note:UZJ200,VDJ200 Production:2009-07 – 2012-01
90901-48003 standard —
90159-60303 standard —
90189-06227 standard —

Diagram

16 parts

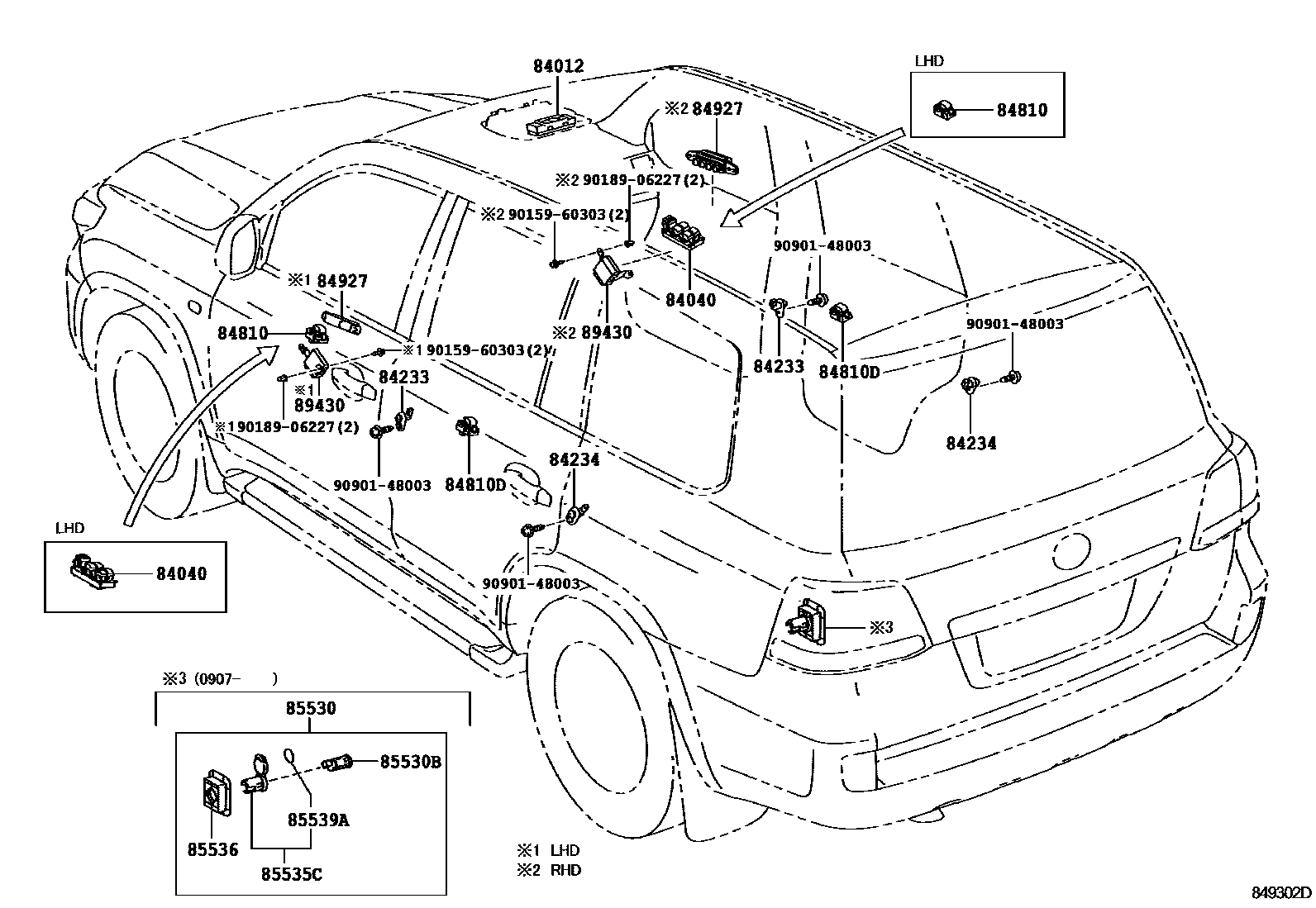

Toyota Land-Cruiser 2010 — Switch & Relay & Computer
