Open RegionYearModelModelCode Details
General 2015 RAV4 ASA42L-ANTXK
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: X TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 040 Trim Code: FB20 Production: 201212-201510 Model Short: ASA42L-ANTXK Region: OTHER Native Region: GR

Toyota RAV4 2015 — Front Fender Apron & Dash Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
52129-42020 ARM, FRONT BUMPER, UPPER NO.2 RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
52139-42020 ARM, FRONT BUMPER, UPPER NO.2 LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53153-42010 GUIDE, RADIATOR GRILLE SIDE AIR, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53154-42020 GUIDE, RADIATOR GRILLE SIDE AIR, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53156-42020 SEAL, RADIATOR GRILLE, NO.2 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53187-42010 STAY, RADIATOR SUPPORT, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53188-42010 STAY, RADIATOR SUPPORT, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53203-42040 SUPPORT SUB-ASSY, RADIATOR, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53205-42080 SUPPORT SUB-ASSY, RADIATOR, UPPER 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53701-42150 APRON SUB-ASSY, FRONT FENDER, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53702-42160 APRON SUB-ASSY, FRONT FENDER, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53705-42020 MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53706-42020 MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53707-42010 APRON SUB-ASSY, FENDER SIDE, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53708-42010 APRON SUB-ASSY, FENDER SIDE, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53713-42040 EXTENSION, FRONT FENDER APRON, FRONT RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53714-42041 EXTENSION, FRONT FENDER APRON, FRONT LH 1
Note:ASA4#,ZSA4# Production:2014-01 – 2015-10
53813-42030 EXTENSION, FRONT FENDER, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53814-42030 EXTENSION, FRONT FENDER, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53803-42010 BRACE, FRONT FENDER TO APRON, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-09 Replacements:53803-42020 (fitment: unknown)
53804-42010 BRACE, FRONT FENDER TO APRON, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
16683-36010 PLATE, RADIATOR LOWER AIR GUIDE 1
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10
16691-26010 PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH 1
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10
16695-26010 PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH 1
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10
53211-42903 SUPPORT, RADIATOR, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53212-42903 SUPPORT, RADIATOR, LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53216-42902 SUPPORT, RADIATOR, UPPER 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53209-42020 SUPPORT, RADIATOR, LOWER 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53716-42020 EXTENSION, FRONT FENDER APRON, REAR LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53725-42010 REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53726-42010 REINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53715-42020 EXTENSION, FRONT FENDER APRON, REAR RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53155-42040 SEAL, RADIATOR GRILLE, NO.1 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
53202-42030 SUPPORT SUB-ASSY, RADIATOR, RH 1
Note:ASA4#,ZSA4# Production:2012-12 – 2015-10
16681-36010 PLATE, RADIATOR UPPER AIR GUIDE 1
Note:2ARFE,3ZRFE..ASA4#,ZSA4# Production:2012-12 – 2015-10
90109-08307 standard —
90179-08068 standard —
90541-15111 standard —
90159-60498 standard —
90189-06237 standard —
90119-08B13 standard —
90467-09050 standard —
94613-10601 standard —
90119-06915 standard —
90159-60431 standard —
90467-10216 standard —

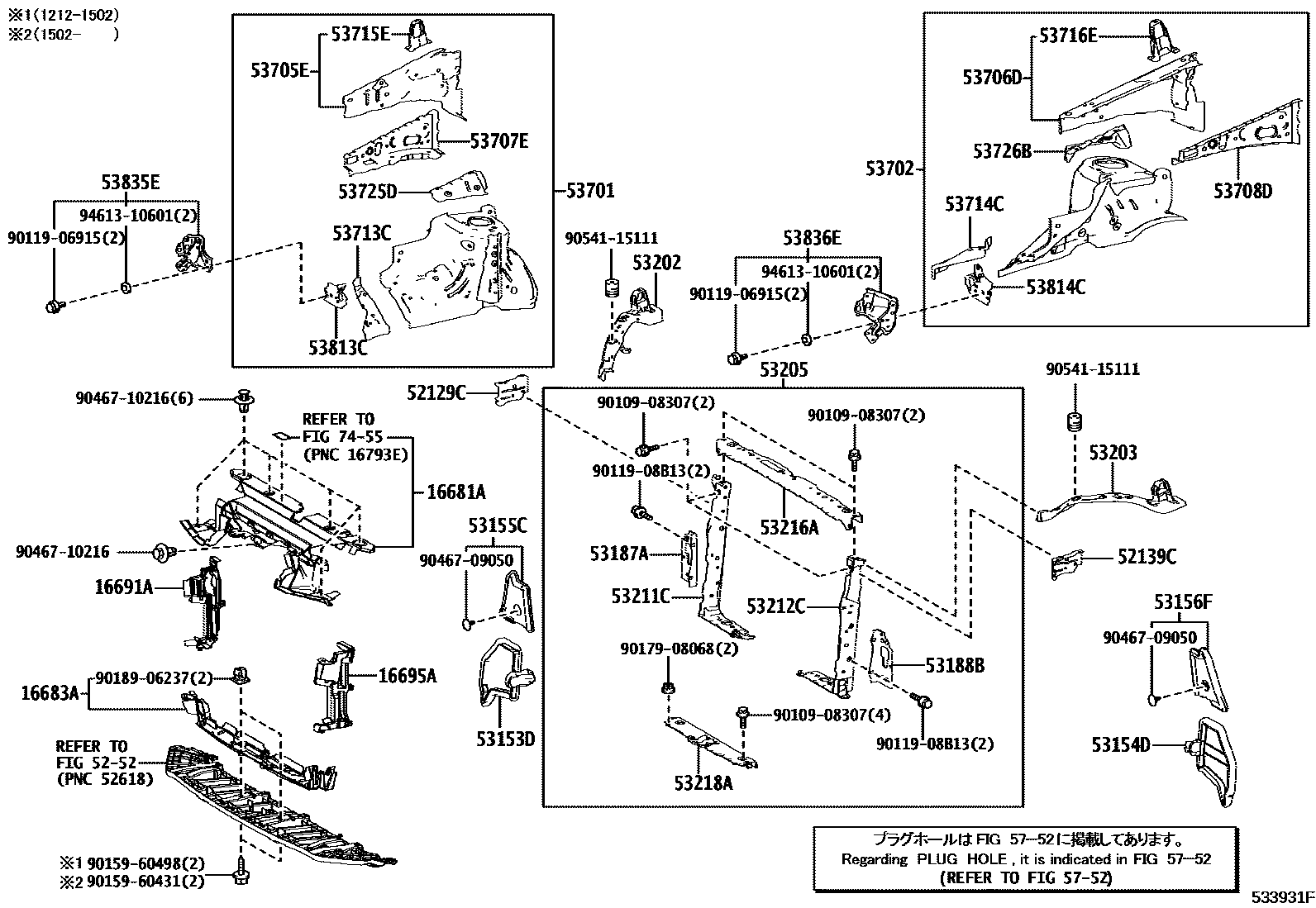

Diagram

46 parts
Toyota RAV4 2015 — Front Fender Apron & Dash Panel
