Open RegionYearModelModelCode Details
General 2020 AURIS COROLLA HB ZWE211R-AHXNBQ
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: AUSTRALIA Doors Description: 5-DOOR Color Code: 070 Trim Code: FA20 Production: 201806-202208 Model Short: ZWE211R-AHXNBQ Region: OTHER Native Region: GR

Toyota AURIS-COROLLA-HB 2020 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84810-12100 SWITCH ASSY, POWER WINDOW REGULATOR, REAR 2
Note:ZWE211 Production:2018-06 – … Spec:X PACKAGE
84231-60070 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:MZEA12..6F;NRE210,ZWE211 Production:2018-06 – …
84231-53010 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:MZEA12..6F;NRE210,ZWE211 Production:2018-06 – …
84872-47020 SWITCH ASSY, OUTER MIRROR 1
Note:ZWE211 Production:2018-06 – 2021-07 Spec:X PACKAGE
84040-12190 MASTER SWITCH ASSY,MULTIPLEX NETWORK 1
Note:ZWE211 Production:2018-06 – 2022-05 Spec:X PACKAGE
84810-12100 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:ZWE211 Production:2018-06 – … Spec:X PACKAGE
90166-70001 standard —
90164-40103 standard —

Diagram

8 parts

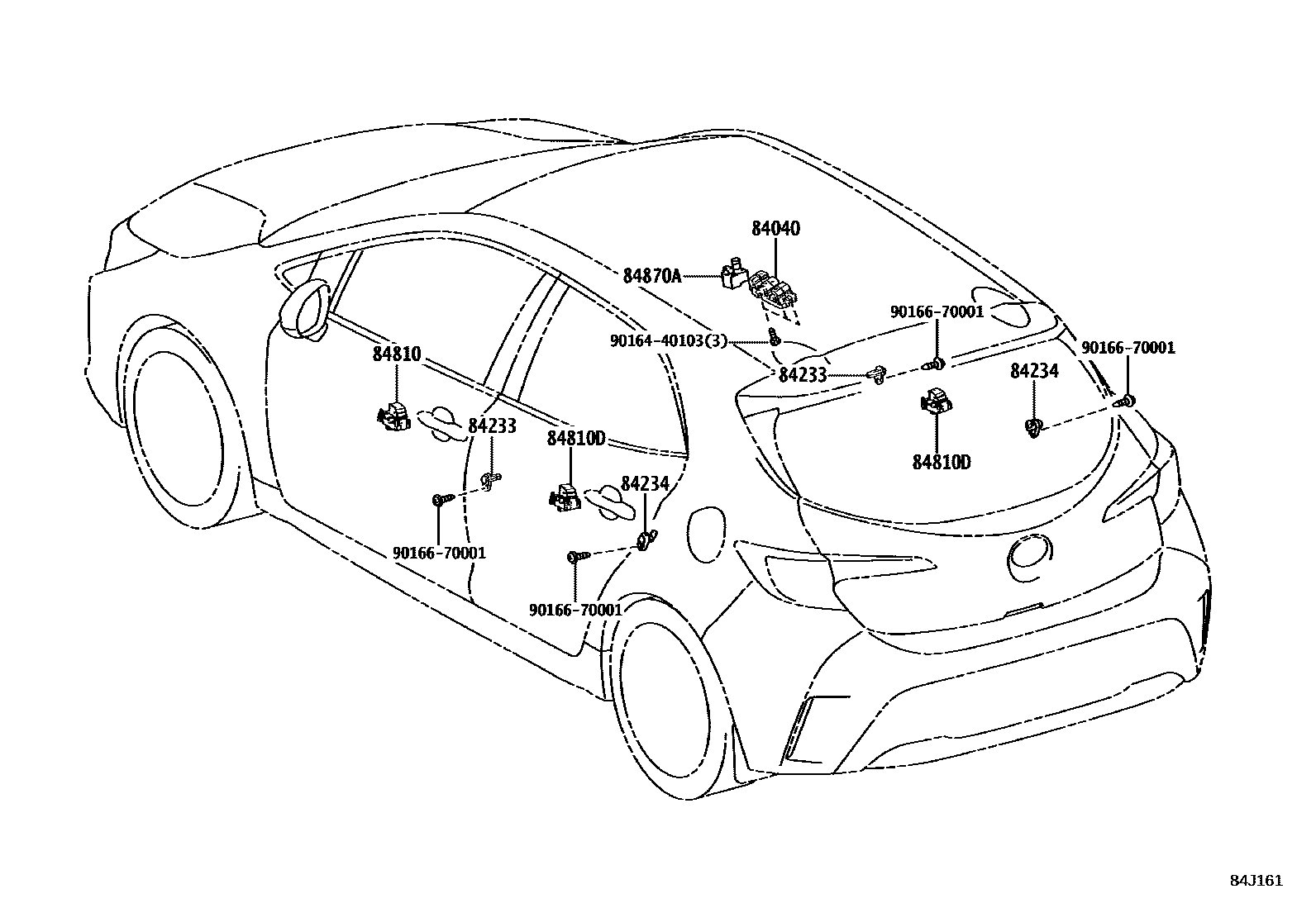

Toyota AURIS-COROLLA-HB 2020 — Switch & Relay & Computer
