Toyota Corolla 2024 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89465-02460 | SENSOR, OXYGEN | 1 | |
Note:ZWE219 Production:2023-05 – … | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:MZEA17,ZWE219 Production:2023-05 – … | |||
| 89467-02290 | SENSOR, AIR FUEL RATIO | 1 | |
Note:ZWE219 Production:2023-05 – … | |||
| 83530-12060 | SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | 1 | |
Note:ZWE219 Production:2023-05 – … | |||
| 89491-28091 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:ZWE219 Production:2023-05 – … | |||
| 89451-28020 | SENSOR, SHIFT LEVER POSITION | 1 | |
Note:ZWE219 Production:2023-05 – … | |||
| 89425-02070 | SENSOR, EXHAUST GAS TEMPERATURE | 1 | |
Note:ZWE219 Production:2023-05 – … | |||
| 89425-02080 | SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | 1 | |
Note:ZWE219 Production:2023-05 – … | |||
| 89481-71010 | SENSOR, DIFFERENTIAL PRESSURE | 1 | |
Note:ZWE219 Production:2023-05 – … | |||
| 90105-C0081 | standard | — | |
| 91551-80825 | standard | — | |
| 90468-15007 | standard | — | |
| 90105-C0079 | standard | — | |
| 82715-0Z710 | standard | — | |
| 90105-C0048 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90182-06012 | standard | — | |
| 90105-C0087 | standard | — | |
| 8946A-02020 | standard | — | |
| 82715-76291 | standard | — | |
| 82729-20040 | standard | — | |
| 8946A-02060 | standard | — | |
| 82715-F4330 | standard | — | |
| 82715-0Z730 | standard | — | |

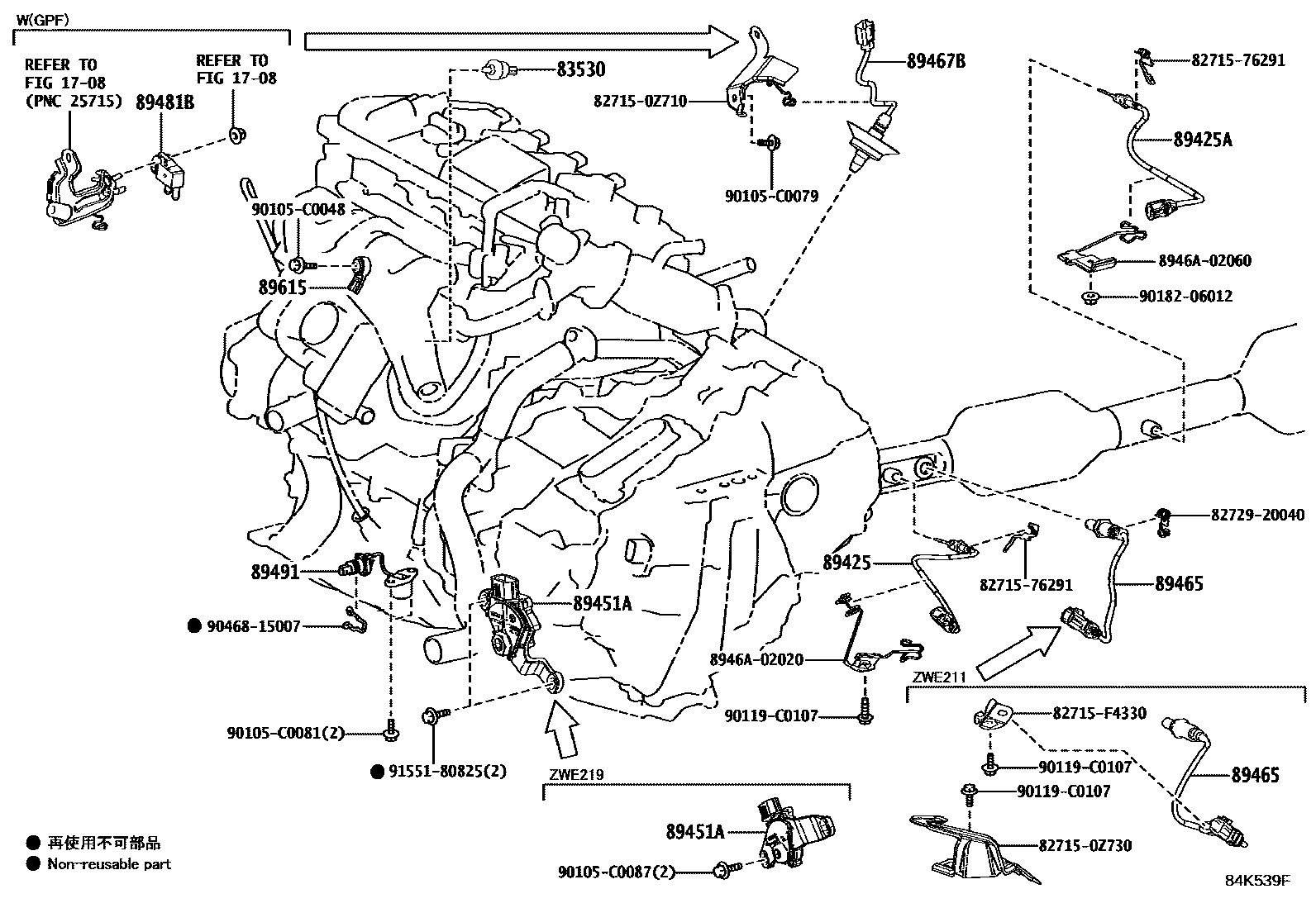

Diagram
24 parts
