Toyota Allion 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82662-02K00 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 82660-12360 | BLOCK ASSY, RELAY | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 82660-12390 | BLOCK ASSY, RELAY | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 82660-12400 | BLOCK ASSY, RELAY | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 82660-12470 | BLOCK ASSY, RELAY | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 90987-02027 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90982-09019 | ENGINE ROOM FUSE | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:25A,MINI FUSE | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:30A,MINI FUSE,GRN | |||
| 90982-08294 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:40A,FEMALE,GRN,58V | |||
| 90982-08295 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:30A,FEMALE,PNK,58V | |||
| 90982-08296 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:50A,FEMALE,RED,58V | |||
| 90982-08299 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:40A-40A-40A,FEMALE | |||
| 90982-08300 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:50A-30A-30A,FEMALE | |||
| 90982-08305 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:80A,TERM.:FEMALE,BLK | |||
| — | Part does not apply to this vehicle configuration. | 89730A | — |
| 90987-T4002 | RELAY, DEFOGGER | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 90987-02027 | RELAY, VVT | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, VVT | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY ASSY, HORN | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY ASSY, HORN | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, INJECTOR | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, INJECTOR | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 28300-21020 | RELAY ASSY, STARTER | 1 | |
Note:M20..MZEA12 Production:2022-05 – 2023-04 Spec:P/N LABEL=2830021020 | |||
| 28300-F2010 | RELAY ASSY, STARTER | 1 | |
Note:M20..MZEA12 Production:2022-05 – 2023-04 Spec:P/N LABEL=28300F2010 | |||
| 82641-47050 | RELAY, INTEGRATION NO.1 | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 82666-12650 | HOLDER, CONNECTOR | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||
| 82663-12160 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:MZEA12 Production:2021-04 – 2023-04 | |||

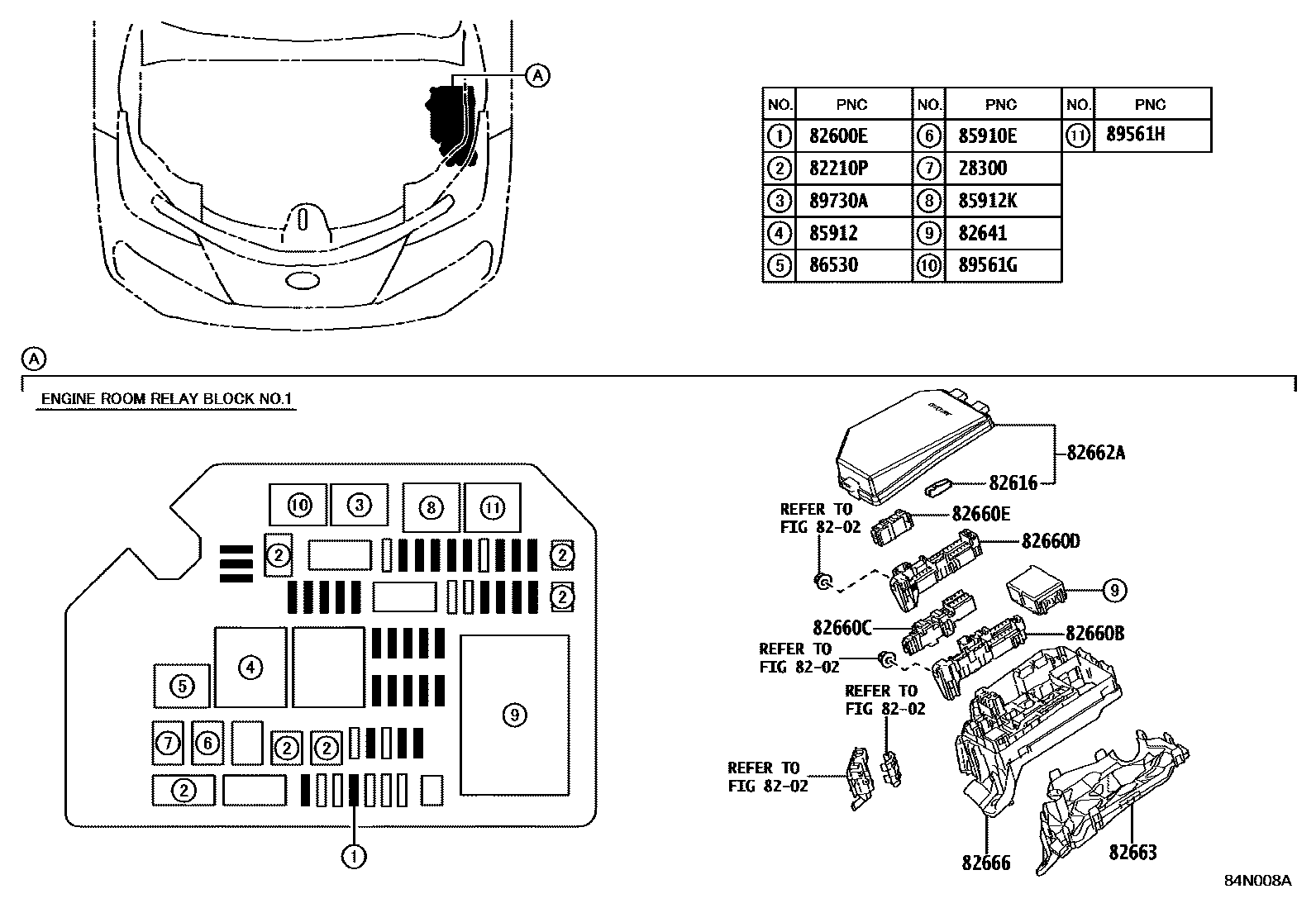

Diagram
35 parts
