Open RegionYearModelModelCode Details
General 2022 COROLLA NRE210L-GEXNZC
Catalog: TOYOTA202608 Engine: 1200CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Vehicle Grade: ENTRY TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 040 Trim Code: FD20 Production: 201908-999999 Model Short: NRE210L-GEXNZC Region: OTHER Native Region: GR

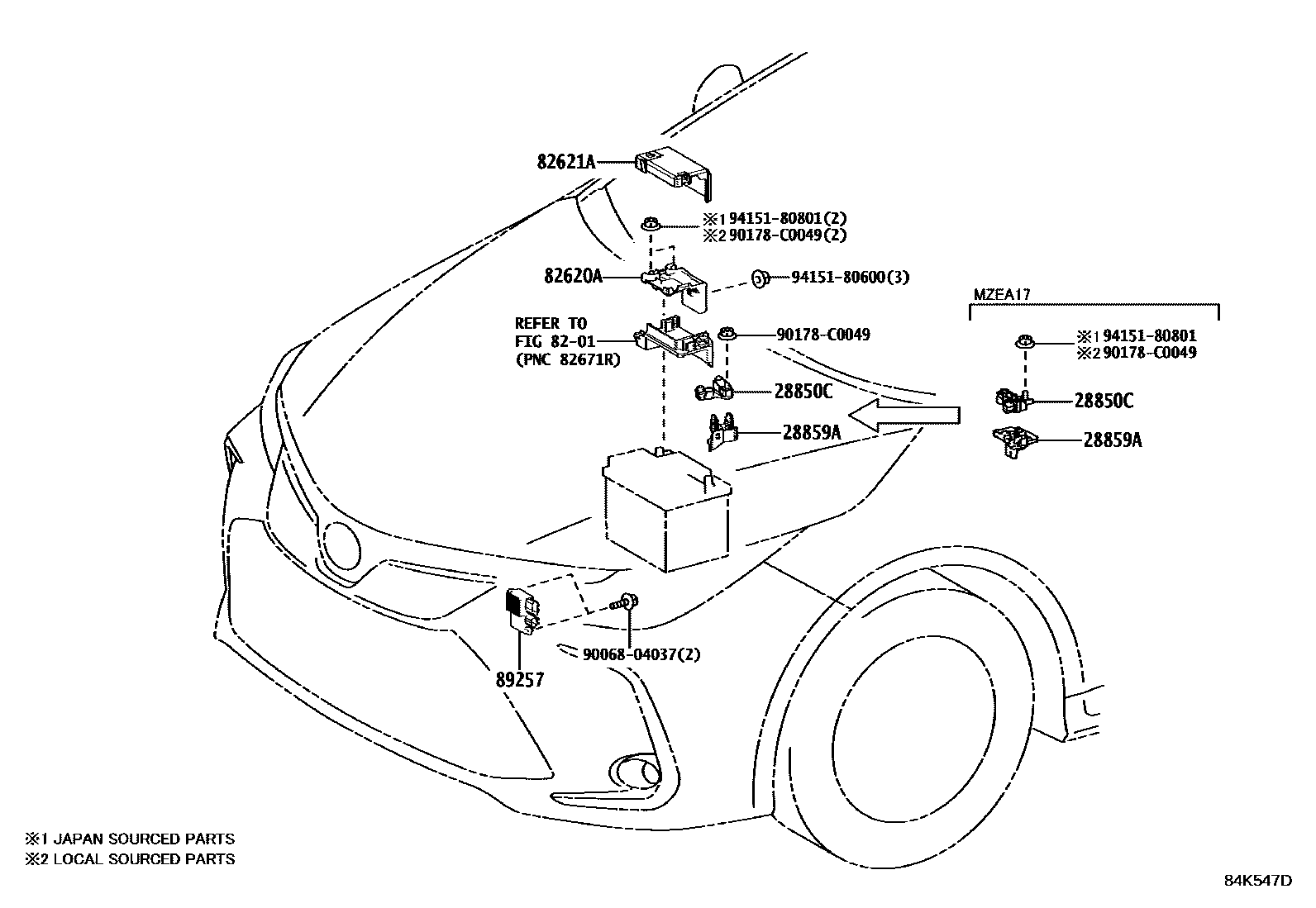

Toyota Corolla 2022 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
28850-F0010 SENSOR ASSY, BATTERY STATE 1
Note:9NRFTS..NRE210..ENTRY,MID Production:2019-08 – 2025-12
82620-12310 BLOCK ASSY, FUSIBLE LINK 1
Note:NRE210..ENTRY,MID Production:2019-08 – …
28859-F2030 HOLDER, BATTERY CURRENT SENSOR 1
Note:9NRFTS..NRE210..ENTRY,MID Production:2019-08 – 2025-12
82621-F4020 COVER, FUSIBLE LINK 1
Note:NRE210..ENTRY,MID Production:2019-08 – …
— Part does not apply to this vehicle configuration. 89257 —
90178-C0049 standard —
94151-80801 standard —
94151-80600 standard —
90068-04037 standard —

Diagram

8 parts
Toyota Corolla 2022 — Switch & Relay & Computer
