Toyota RAV4-SFTM 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84152-0R040 | SWITCH, HEADLAMP LEVELING | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 84153-0R020 | SWITCH, AUTO HIGH BEAM | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 84721-0R030 | SWITCH, PANORAMIC VIEW MONITOR | 1 | |
Note:AXAH5#,MXAA5#..G,M Production:2019-11 – 2023-03 | |||
| 84470-0R050 | SWITCH ASSY, ECORUN CANCEL | 1 | |
Note:MXAA5# Production:2019-11 – 2023-03 | |||
| 84988-0R060 | SWITCH, VSC OFF | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| 84332-0R050 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:AXAH5#,MXAA5# Production:2019-11 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 84841A | — |
| — | Part does not apply to this vehicle configuration. | 84966 | — |
| 89611-0R012 | SWITCH, PUSH START | 1 | |
Note:MXAA5#..G,M Production:2019-11 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 84975 | — |
| — | Part does not apply to this vehicle configuration. | 83950M | — |
| 84751-0R100 | SWITCH, SEAT HEATER | 1 | |
Note:AXAH52,MXAA5#..M Production:2019-11 – 2023-03 Spec:SEAT HEATER-WITH | |||
| 84751-0R110 | SWITCH, SEAT HEATER | 1 | |
Note:AXAH52,MXAA5#..M Production:2019-11 – 2023-03 Spec:SEAT HEATER-WITH | |||

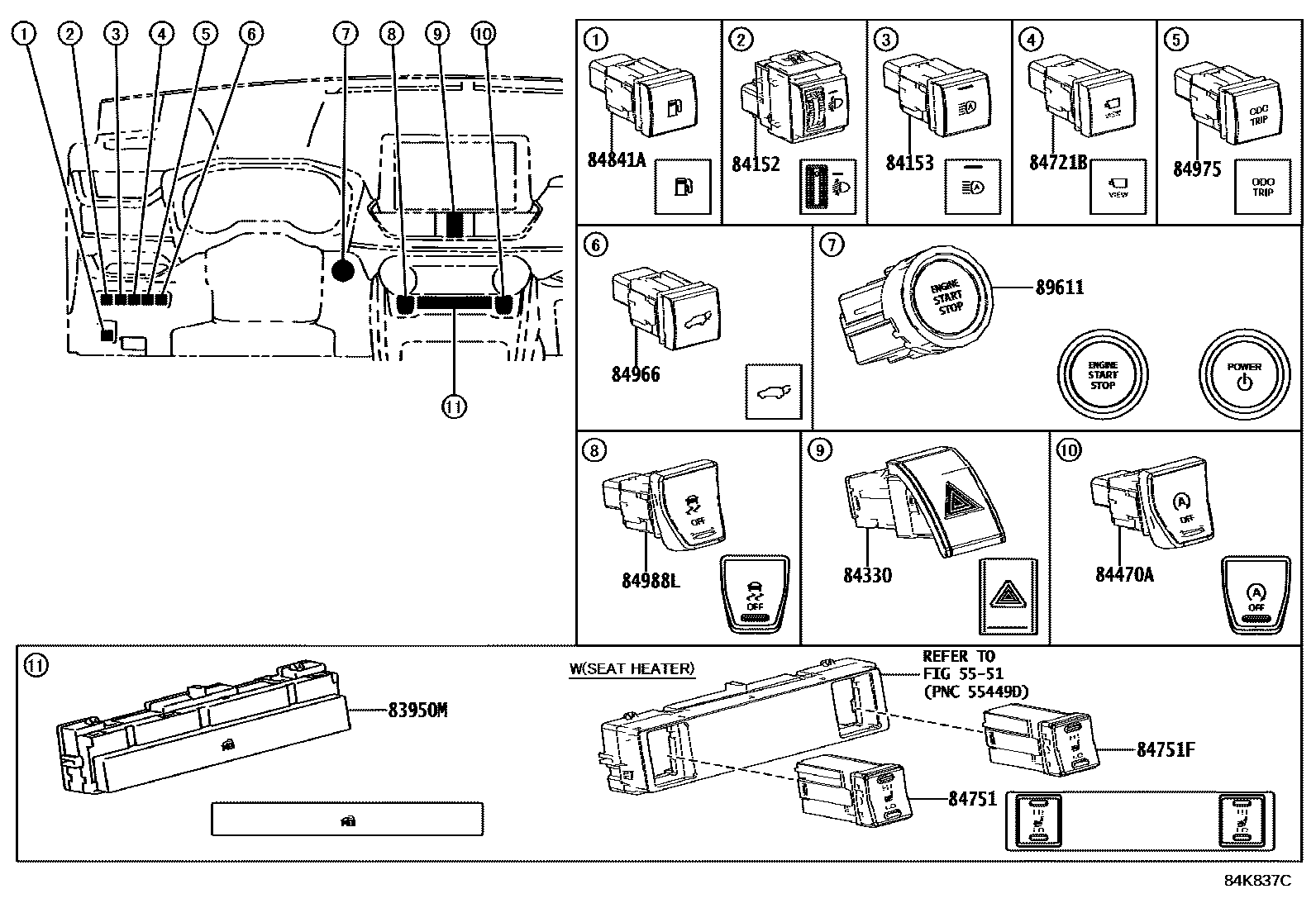

Diagram
9 parts
