Toyota HARRIER-HEV-CHINA 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84040-0E210 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:AXUH8#,MXUA80 Production:2021-11 – 2023-04 | |||
| 84872-0E250 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXUH80,MXUA80..M,X Production:2021-11 – 2023-04 Replacements:84872-0E251 (fitment: unknown) | |||
| 84810-F4050 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXUH8#,MXUA80 Production:2021-11 – 2023-04 | |||
| — | Part does not apply to this vehicle configuration. | 84927 | — |
| — | Part does not apply to this vehicle configuration. | 89430A | — |
| — | Part does not apply to this vehicle configuration. | 89430B | — |
| 84810-F4050 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXUH8#,MXUA80 Production:2021-11 – 2023-04 | |||
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:AXUH85..G,S;AXUH80,MXUA80..G,M,X Production:2021-11 – … | |||
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:AXUH85..G,S;AXUH80,MXUA80..G,M,X Production:2021-11 – … | |||
| 90166-C0004 | standard | — | |
| 90166-C0005 | standard | — | |
| 90159-60303 | standard | — | |
| 90159-C0006 | standard | — | |
| 90189-06227 | standard | — | |
| 90189-C0033 | standard | — | |

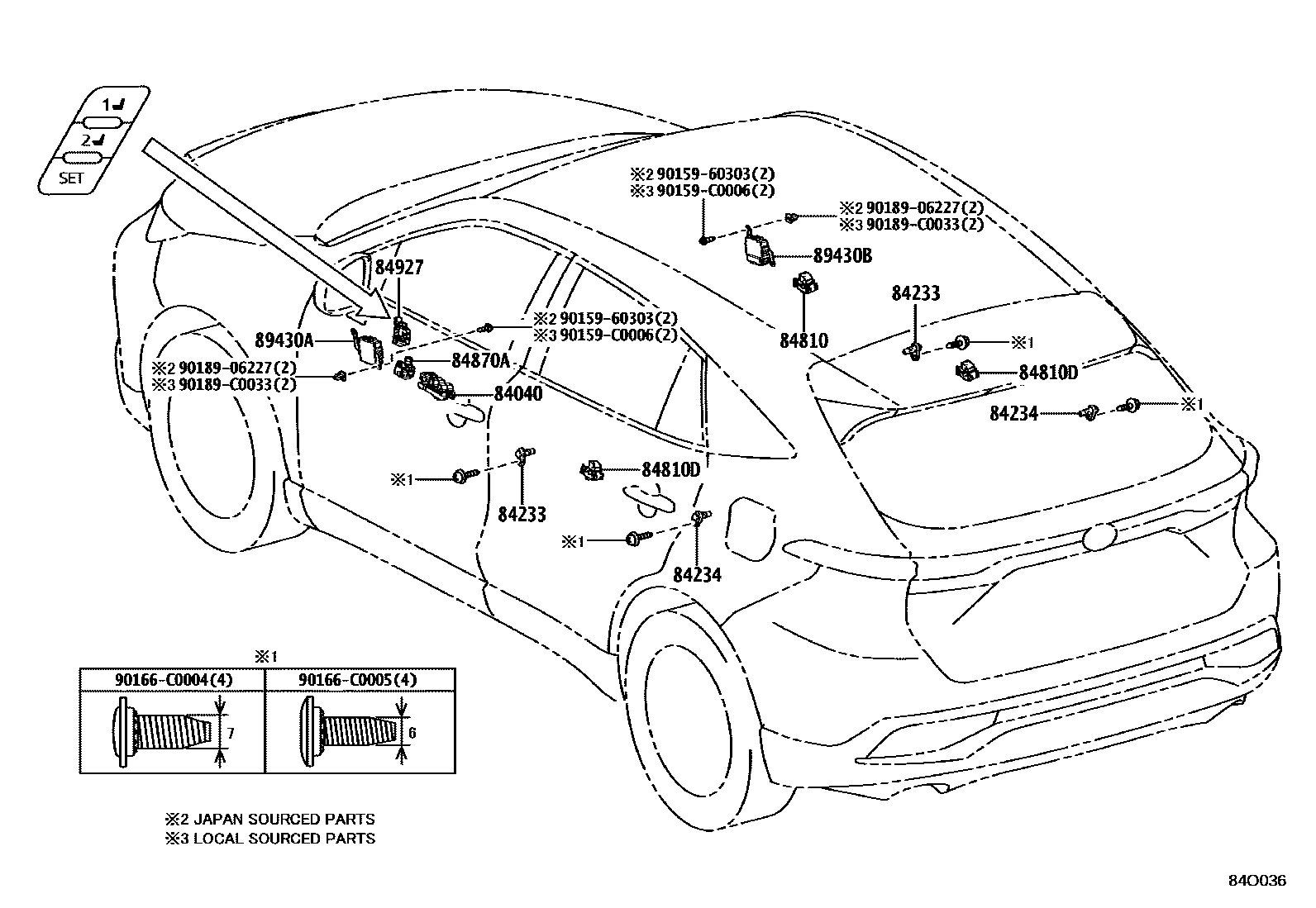

Diagram
12 parts
