Toyota Granvia-Hybrid 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 8946A-08030 | BRACKET, EXHAUST SENSOR CLAMP | 1 | |
Note:AXLH40..L,N Production:2023-03 – 2026-05 | |||
| 89481-K0010 | SENSOR, DIFFERENTIAL PRESSURE | 1 | |
Note:AXLH40..L,N Production:2023-03 – 2026-05 | |||
| 89467-0E310 | SENSOR, AIR FUEL RATIO | 1 | |
Note:AXLH40 Production:2022-11 – 2023-03 | |||
| 89467-0E320 | SENSOR, AIR FUEL RATIO | 1 | |
Note:AXLH40..L,N Production:2023-03 – 2026-05 | |||
| 8946A-0E030 | BRACKET,WIRING HARNESS CLAMP | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 89422-33040 | SENSOR, WATER TEMPERATURE | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 89615-0E010 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 89615-0E010 | |||
| 89615-20090 | SENSOR, KNOCK CONTROL | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 Spec:MARK 89615-20090 | |||
| 89491-06011 | SENSOR, ENGINE OIL LEVEL | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 89451-10010 | SENSOR, SHIFT LEVER POSITION | 1 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 89467-0R120 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:AXLH40 Production:2022-11 – 2023-03 | |||
| 89467-08080 | SENSOR, AIR FUEL RATIO, NO.2 | 1 | |
Note:AXLH40..L,N Production:2023-03 – 2026-05 | |||
| 89425-0E080 | SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | 1 | |
Note:AXLH40..L,N Production:2023-03 – 2026-05 | |||
| 8946A-0E150 | BRACKET, EXHAUST SENSOR CLAMP, NO.2 | 1 | |
Note:AXLH40..L,N Production:2023-03 – 2026-05 | |||
| 89425-0E070 | SENSOR, EXHAUST GAS TEMPERATURE | 1 | |
Note:AXLH40..L,N Production:2023-03 – 2026-05 | |||
| 94151-80600 | standard | — | |
| 90119-C0098 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 90468-14044 | standard | — | |
| 90468-15007 | standard | — | |
| 90119-06A23 | standard | — | |
| 90119-C0619 | standard | — | |
| 90105-C0048 | standard | — | |
Replacements:91551-80835 (fitment: unknown) | |||
| 91551-80825 | standard | — | |
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 91673-80616 | standard | — | |

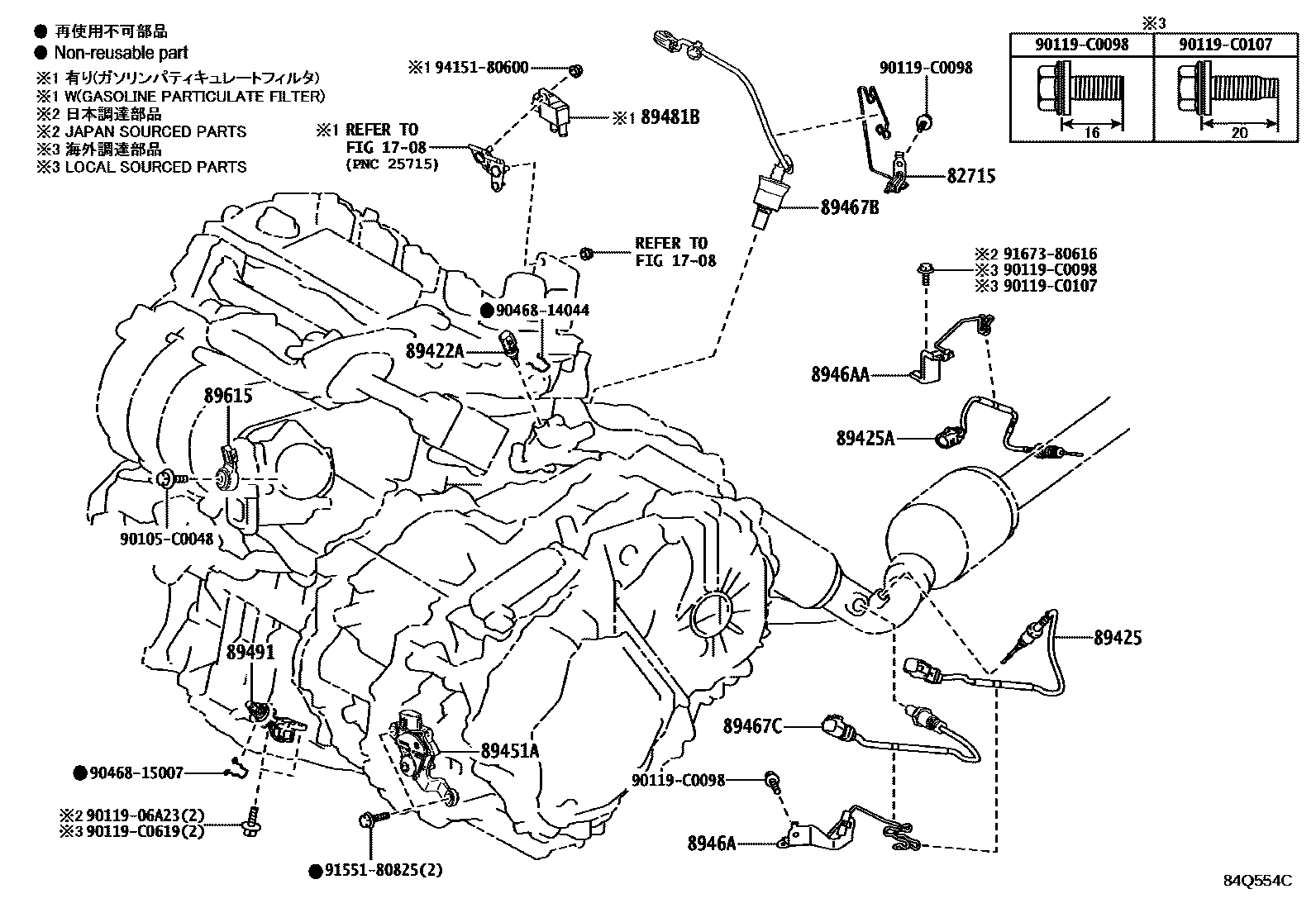

Diagram
25 parts
