General 2023 GRANVIA HYBRID AXLH40L-QNXXHC
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Color Code: 1K0 Trim Code: LA41 Production: 202211-999999 Model Short: AXLH40L-QNXXHC Region: OTHER Native Region: GR

Toyota Granvia-Hybrid 2023 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82663-08120 COVER, RELAY BLOCK, LOWER, NO.2 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
82741-08100 BLOCK, ENGINE ROOM RELAY 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
82660-08110 BLOCK ASSY, RELAY 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
82662-08120 COVER, RELAY BLOCK, UPPER, NO.2 1
Note:AXLH40 Production:2022-11 – 2024-04
82662-08130 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
82644-45040 COMPUTER, SEMICONDUCTOR POWER INTEGRATION 1
Note:AXLH40..E,L,N,X Production:2022-11 – 2024-04
82660-08100 BLOCK ASSY, RELAY 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
82610-08040 BLOCK ASSY, FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
82666-08370 HOLDER, CONNECTOR 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
82661-08040 COVER, RELAY BLOCK, NO.1 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
82663-08110 COVER, RELAY BLOCK, LOWER 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
90987-T2005 RELAY ASSY, WINDSHIELD DEICER 1
Note:AXLH4#..E,L,P,V,W,X Production:2022-11 – 2025-09 Replacements:90987-02027 (fitment: unknown)
90987-02027 RELAY(FOR SECURITY WARNING) 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY(FOR SECURITY WARNING) 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, VVT 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, VVT 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, HYBRID WATER PUMP 1
Note:AXLH40 Production:2022-11 – 2024-04 Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, HYBRID WATER PUMP 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-T2005 RELAY (FOR OIL PUMP MOTOR) 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown)
90987-02027 RELAY, INJECTOR 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, INJECTOR 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-T2005 RELAY, IGP, NO.2 1
Note:A25..AXLH4#..P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown)
— Part does not apply to this vehicle configuration. 28371N —
90987-T2004 RELAY, IGP 1
Note:A25..AXLH4#..E,P,V,W,X Production:2022-11 – …
90987-T2004 RELAY, WINDSHIELD WIPER 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
90987-02027 RELAY ASSY, HORN 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY ASSY, HORN 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 86220A —
82620-08100 BLOCK ASSY, FUSIBLE LINK 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
90987-02025 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(J) Spec Note:(Japan made)
90987-T2004 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90080-82050 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90982-09020 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN,(L) Spec Note:7.5A,MINI FUSE,BROWN,(Local made)
90080-82051 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90982-09021 (fitment: unknown) Spec:10A,MINI FUSE,RED,(L) Spec Note:10A,MINI FUSE,RED,(Local made)
90080-82052 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90982-09022 (fitment: unknown) Spec:15A,MINI FUSE,BLUE,(L) Spec Note:15A,MINI FUSE,BLUE,(Local made)
90080-82053 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90982-09023 (fitment: unknown) Spec:20A,MINI FUSE,YELLOW,(L) Spec Note:20A,MINI FUSE,YELLOW,(Local made)
90080-82054 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Replacements:90982-09025 (fitment: unknown) Spec:30A,MINI FUSE,GREEN,(L) Spec Note:30A,MINI FUSE,GREEN,(Local made)
90982-09019 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:5A,MINI FUSE,TAN,(J) Spec Note:5A,MINI FUSE,TAN,(Japan made)
90982-09020 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:7.5A,MINI FUSE,BROWN,(J) Spec Note:7.5A,MINI FUSE,BROWN,(Japan made)
90982-09021 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:10A,MINI FUSE,RED,(J) Spec Note:10A,MINI FUSE,RED,(Japan made)
90982-09022 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:15A,MINI FUSE,BLUE,(J) Spec Note:15A,MINI FUSE,BLUE,(Japan made)
90982-09023 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:20A,MINI FUSE,YELLOW,(J) Spec Note:20A,MINI FUSE,YELLOW,(Japan made)
90982-09025 ENGINE ROOM FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:30A,MINI FUSE,GRN,(J) Spec Note:30A,MINI FUSE,GRN,(Japan made)
82616-58010 PULLER, FUSE 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – …
90982-08295 ENGINE ROOM FUSIBLE LINK 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:30A,FEMALE,PNK,58V
90982-08302 ENGINE ROOM FUSIBLE LINK 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:50A-30A-50A,FEMALE
90982-08303 ENGINE ROOM FUSIBLE LINK 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:50A-50A-50A,FEMALE
90982-08305 ENGINE ROOM FUSIBLE LINK 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:80A,TERM.:FEMALE,BLK
90982-08307 ENGINE ROOM FUSIBLE LINK 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:50A,FEMALE,RED,32V
90982-08308 ENGINE ROOM FUSIBLE LINK 1
Note:AXLH4#..E,P,V,W,X Production:2022-11 – … Spec:40A-30A-30A,FEMALE
90119-06A18 standard —
90119-C0564 standard —
94151-80600 standard —
90178-C0032 standard —
90178-06025 standard —
90178-C0139 standard —
90119-06558 standard —

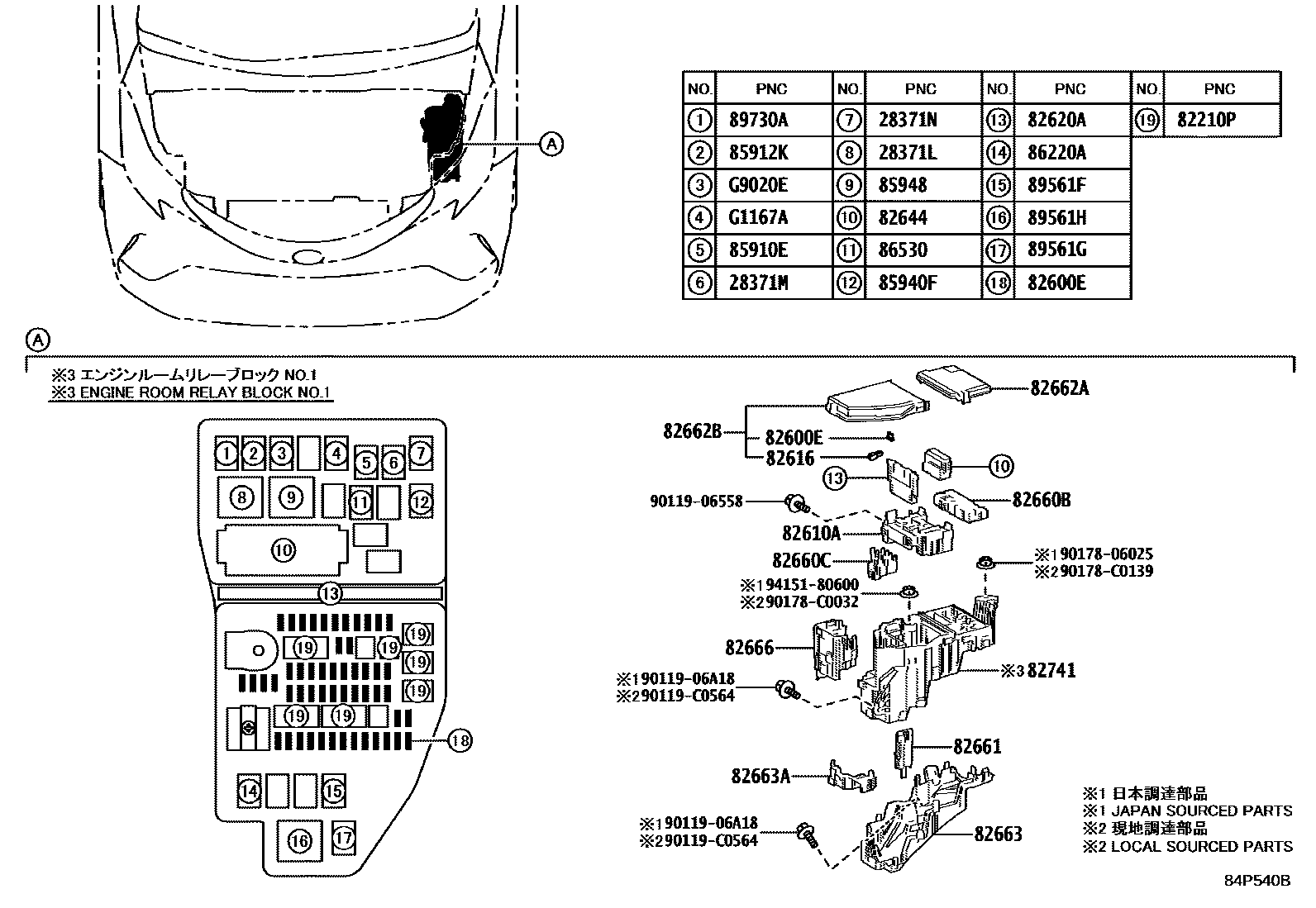

Diagram

58 parts
