Toyota RAV4-SFTM 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:AXAL5#,MXAA5# Production:2023-04 – 2024-09 | |||
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:AXAL5#,MXAA5# Production:2023-04 – 2024-09 | |||
| 84872-0R160 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXAL5#,MXAA5#..M Production:2023-04 – 2024-09 | |||
| 84810-0R010 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXAL5#,MXAA5#..M,X Production:2023-04 – 2024-09 | |||
| 84810-0R010 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXAL5#,MXAA5#..M,X Production:2023-04 – 2024-09 | |||
| 85530-07020 | SOCKET ASSY, POWER OUTLET, REAR NO.1 | 1 | |
Note:AXAL5#,MXAA5#..G,M Production:2023-04 – 2024-09 | |||
| 85535-0R070 | COVER, POWER OUTLET SOCKET, REAR | 1 | |
Note:AXAL5#,MXAA5#..G,M Production:2023-04 – 2024-09 | |||
| 84040-0R140 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:AXAL5#,MXAA5#..M,X Production:2023-04 – 2024-09 | |||
| — | Part does not apply to this vehicle configuration. | 89747F | — |
| 90166-C0004 | standard | — | |
| 90166-C0005 | standard | — | |
| 90164-C0009 | standard | — | |

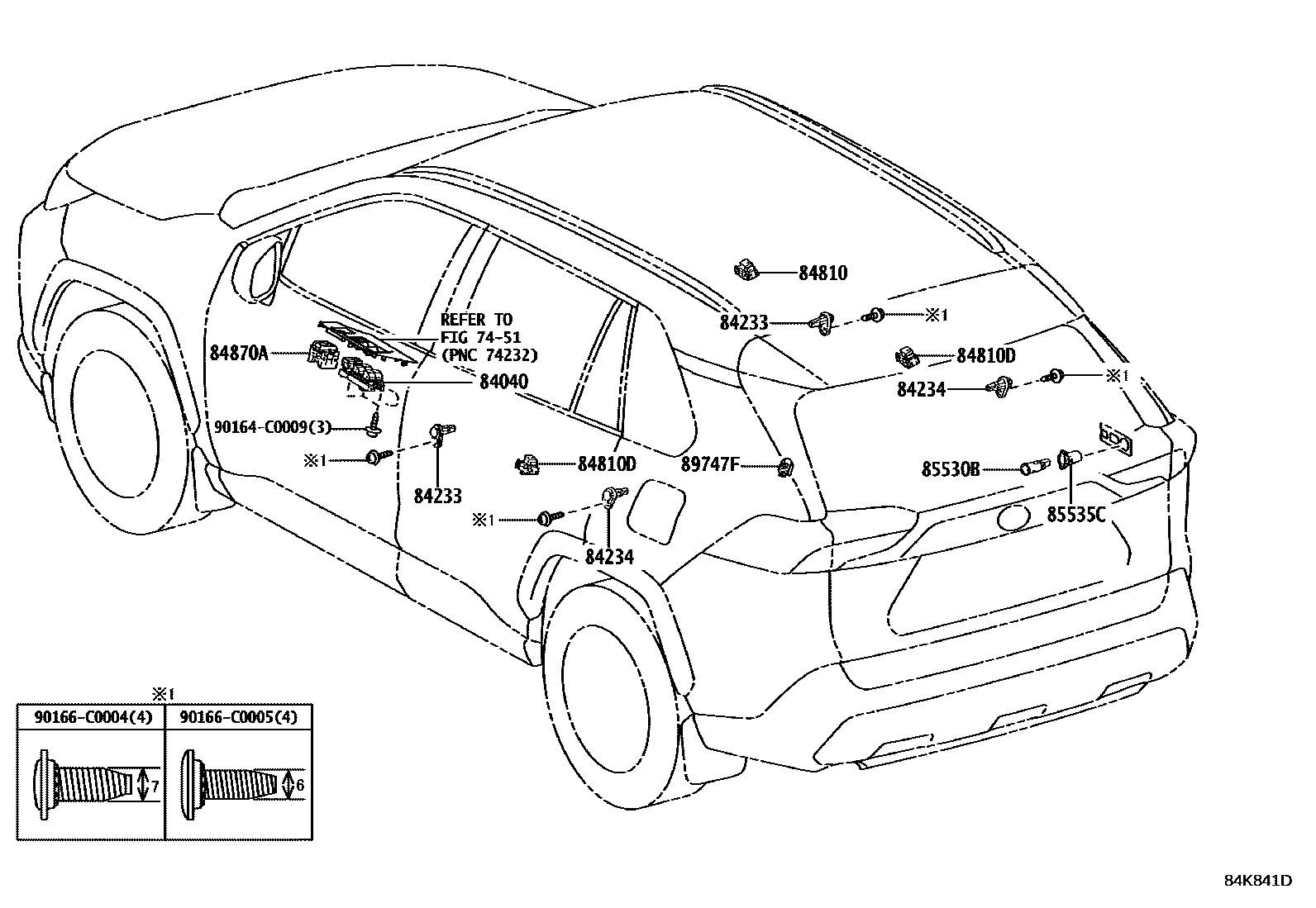

Diagram
11 parts
