Toyota RAV4-SFTM 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82877-0R020 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 89111-0R371 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:AXAL5#,MXAA5# Production:2024-12 – … | |||
| 82673-0R100 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 90987-T2005 | RELAY, SEAT HEATER | 1 | |
Note:AXAL5#,MXAA5#..M,X Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 89730A | — |
| 90987-02027 | RELAY, ACC | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ACC | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:25A,MINI FUSE | |||
| 90982-09025 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-08294 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:40A,FEMALE,GRN,58V | |||
| 90982-08295 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,FEMALE,PNK,58V | |||
| 90982-08296 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:50A,FEMALE,RED,58V | |||
| 90982-08298 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,TERMINAL:FEMALE | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,FEMALE,PNK,32V | |||
| 90982-08311 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:40A,FEMALE,GRN,58VDC | |||
| 90982-08312 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:50A,FEMALE,RED,58VDC | |||
| 82672-0R140 | COVER, POWER DISTRIBUTION BOX | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 82730-0R400 | BOX ASSY, POWER DISTRIBUTION | 1 | |
Note:MXAA52..X Production:2024-09 – … | |||
| 85940-0R010 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 89121-0E040 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 84345-0R010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 84340-09340 | SWITCH ASSY, STOP LAMP | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 89221-0R600 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:AXAL52,MXAA52;AXAL54,MXAA54..M Production:2024-09 – … | |||
| 8598A-0R030 | BATTERY, DOOR CONTROL | 1 | |
Note:MXAA5# Production:2024-09 – … | |||
| 90183-06032 | standard | — | |
| 90178-C0011 | standard | — | |
| 90119-C0107 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90119-C0074 | standard | — | |

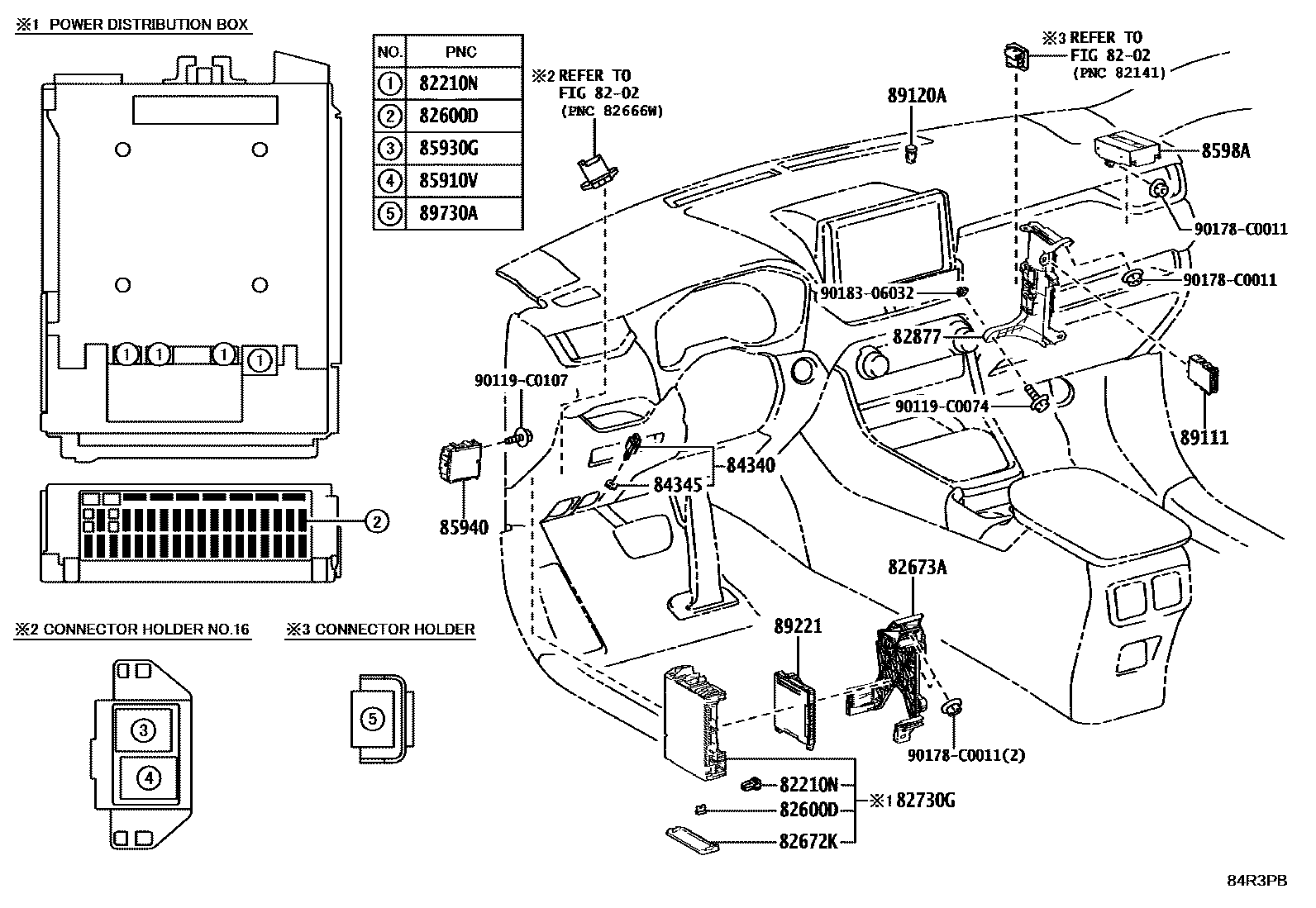

Diagram
32 parts
