Open RegionYearModelModelCode Details
General 2023 LEVIN HYBRID MZEA17L-CEXNBC
Catalog: TOYOTA202608 Engine: 1500CC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 040 Trim Code: FA20 Production: 202304-999999 Model Short: MZEA17L-CEXNBC Region: OTHER Native Region: GR

Toyota Levin-Hybrid 2023 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82660-12470 BLOCK ASSY, RELAY 1
Note:MZEA17 Production:2023-04 – …
82660-0A060 BLOCK ASSY, RELAY 1
Note:MZEA17 Production:2023-04 – …
90982-09019 ENGINE ROOM FUSE 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:5A,MINI FUSE,TAN
90982-09020 ENGINE ROOM FUSE 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 ENGINE ROOM FUSE 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:10A,MINI FUSE,RED
90982-09022 ENGINE ROOM FUSE 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:15A,MINI FUSE,BLUE
90982-09023 ENGINE ROOM FUSE 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 ENGINE ROOM FUSE 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:25A,MINI FUSE
90982-09025 ENGINE ROOM FUSE 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:30A,MINI FUSE,GRN
90987-02027 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 1
Note:MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, WINDSHIELD WIPER 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, WINDSHIELD WIPER 1
Note:MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, HEADLAMP, RH 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, HEADLAMP, RH 1
Note:MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, HEADLAMP, LH 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, HEADLAMP, LH 1
Note:MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
28300-F2010 RELAY ASSY, STARTER 1
Note:M15..MZEA17 Production:2023-04 – …
— Part does not apply to this vehicle configuration. 89730A —
90987-02033 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 1
Note:MZEA17,ZWE219 Production:2023-04 – …
— Part does not apply to this vehicle configuration. 28300F —
90987-02027 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 1
Note:MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, IGP 1
Note:M15,8ZRFXE..MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, IGP 1
Note:M15,8ZRFXE..MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY ASSY, HORN 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY ASSY, HORN 1
Note:MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, COOLING FAN 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, COOLING FAN 1
Note:MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, INJECTOR 1
Note:MZEA17 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, INJECTOR 1
Note:MZEA17 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, DAY TIME RUNNING LIGHT, NO.1 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made)
90987-T2005 RELAY, DAY TIME RUNNING LIGHT, NO.1 1
Note:MZEA17,ZWE219 Production:2023-04 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
82662-02L20 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:MZEA17 Production:2023-04 – …
82741-0A020 BLOCK, ENGINE ROOM RELAY 1
Note:MZEA17 Production:2023-04 – …
82660-0A050 BLOCK ASSY, RELAY 1
Note:MZEA17 Production:2023-04 – …
82660-12390 BLOCK ASSY, RELAY 1
Note:MZEA17 Production:2023-04 – …
82660-12360 BLOCK ASSY, RELAY 1
Note:MZEA17 Production:2023-04 – …
82616-58010 PULLER, FUSE 1
Note:MZEA17,ZWE219 Production:2023-04 – …
82663-12160 COVER, RELAY BLOCK, LOWER 1
Note:MZEA17 Production:2023-04 – …
90982-08294 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:40A,FEMALE,GRN,58V
90982-08295 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:30A,FEMALE,PNK,58V
90982-08296 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:50A,FEMALE,RED,58V
90982-08299 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:40A-40A-40A,FEMALE
90982-08300 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:50A-30A-30A,FEMALE
90982-08301 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:50A-30A-40A,FEMALE
90982-08302 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:50A-30A-50A,FEMALE
90982-08303 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:50A-50A-50A,FEMALE
90982-08304 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:60A,TERM.:FEMALE,YEL
90982-08305 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:80A,TERM.:FEMALE,BLK
90982-08307 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:50A,FEMALE,RED,32V
90982-08308 ENGINE ROOM FUSIBLE LINK 1
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:40A-30A-30A,FEMALE
94151-80600 standard —

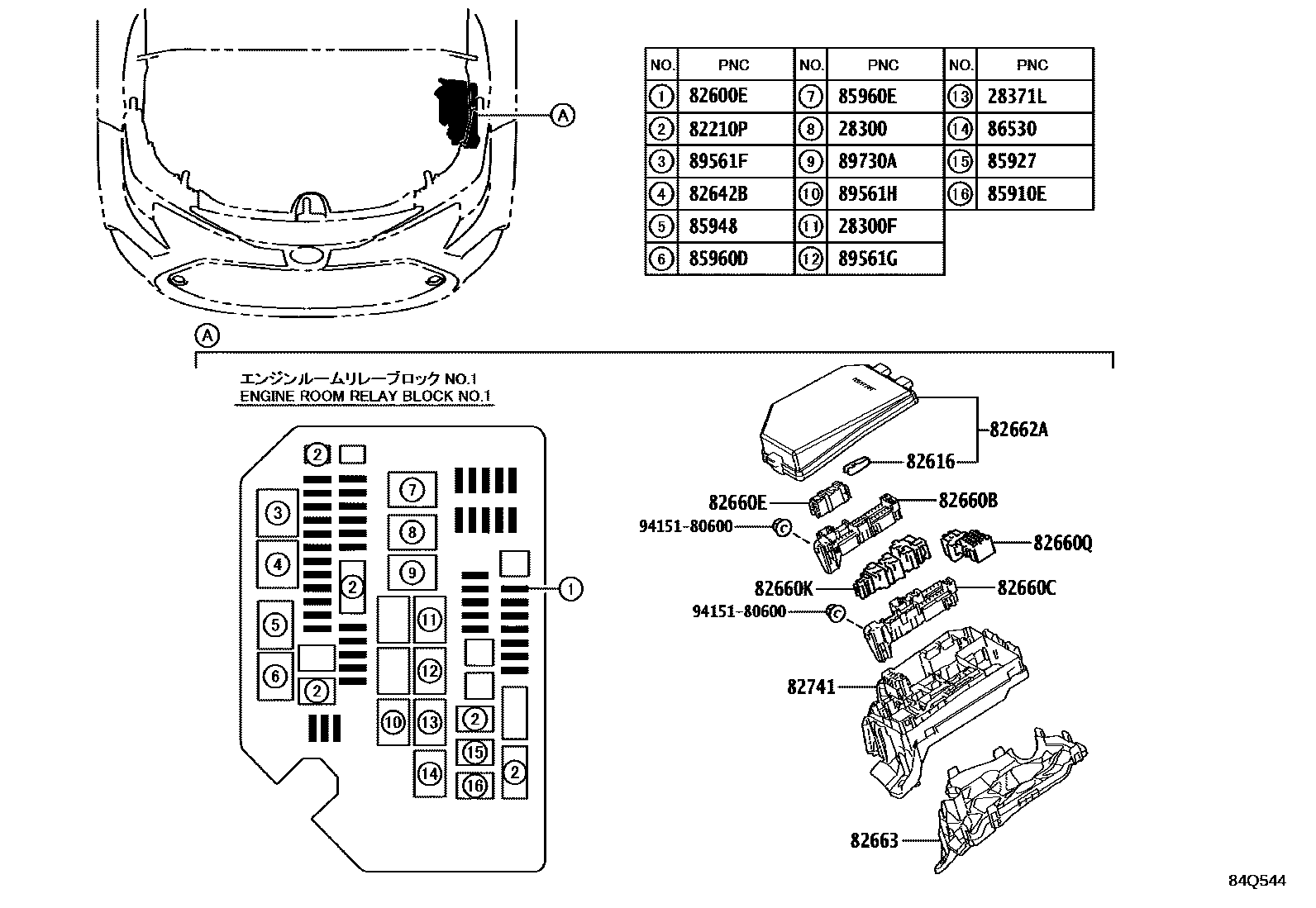

Diagram

51 parts
Toyota Levin-Hybrid 2023 — Switch & Relay & Computer
